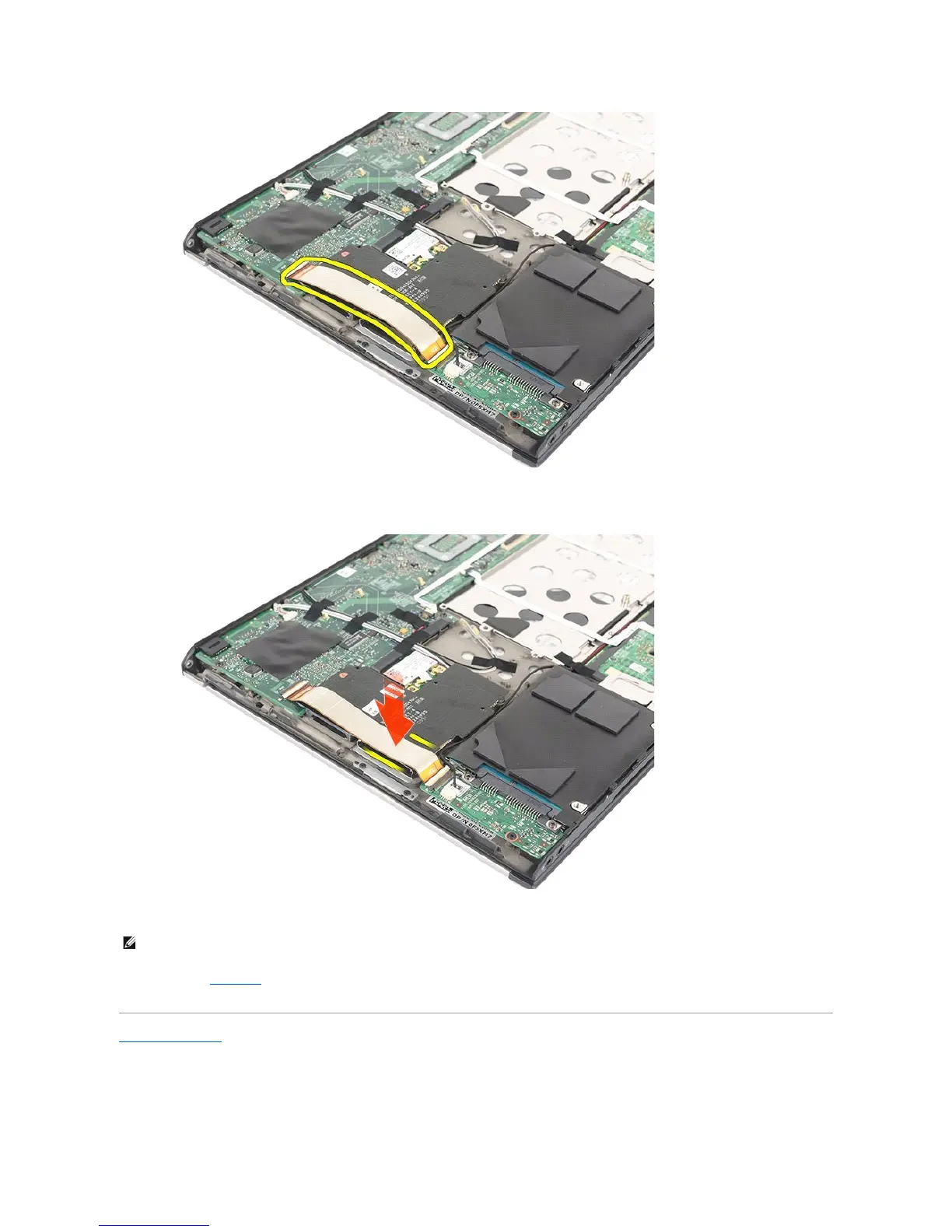

11. Press down the cable to attach the double sided tape to the card reader board. Using the halo lines on the below picture as a guideline, do not press
beyond the suggested line or to the edge of the card reader
topreventunnecessarybenttotheflexcable.
11. Re-install back the pre-removal part in reverse order.
Refer to the Bottom Base Cover replacement procedure for further information.

Back to Contents Page
NOTE:
When replacing the bottom base cover, do not add unnecessary pressure at the hard drive and card reader location. This is to avoid unnecessary contact between the flex cable and the card reader board
edge.
