FEEDER CABLE SECTION
This hob must be connected to electrical supply using V105 insulated cable.
220-240 V ac 3 x 4 mm
2
(*) (**)
380-415 V 2N ac 4 x 2.5 mm
2
(*) (**)
380-415 V 3N ac 5 x 2.5 mm
2
(*) (**)
(*) Connection with wall box connection
(**) Notes for models DEIND604, DEIND804 only:
– Diversity factor applied
– A diversity factor may be applied to the total loading of the appliance only by a
suitably qualied person
If the supply cord (not supplied with the appliance) is damaged, it must be replaced
by the manufacturer or its service agent or a similarly qualied person in order to
avoid a hazard.

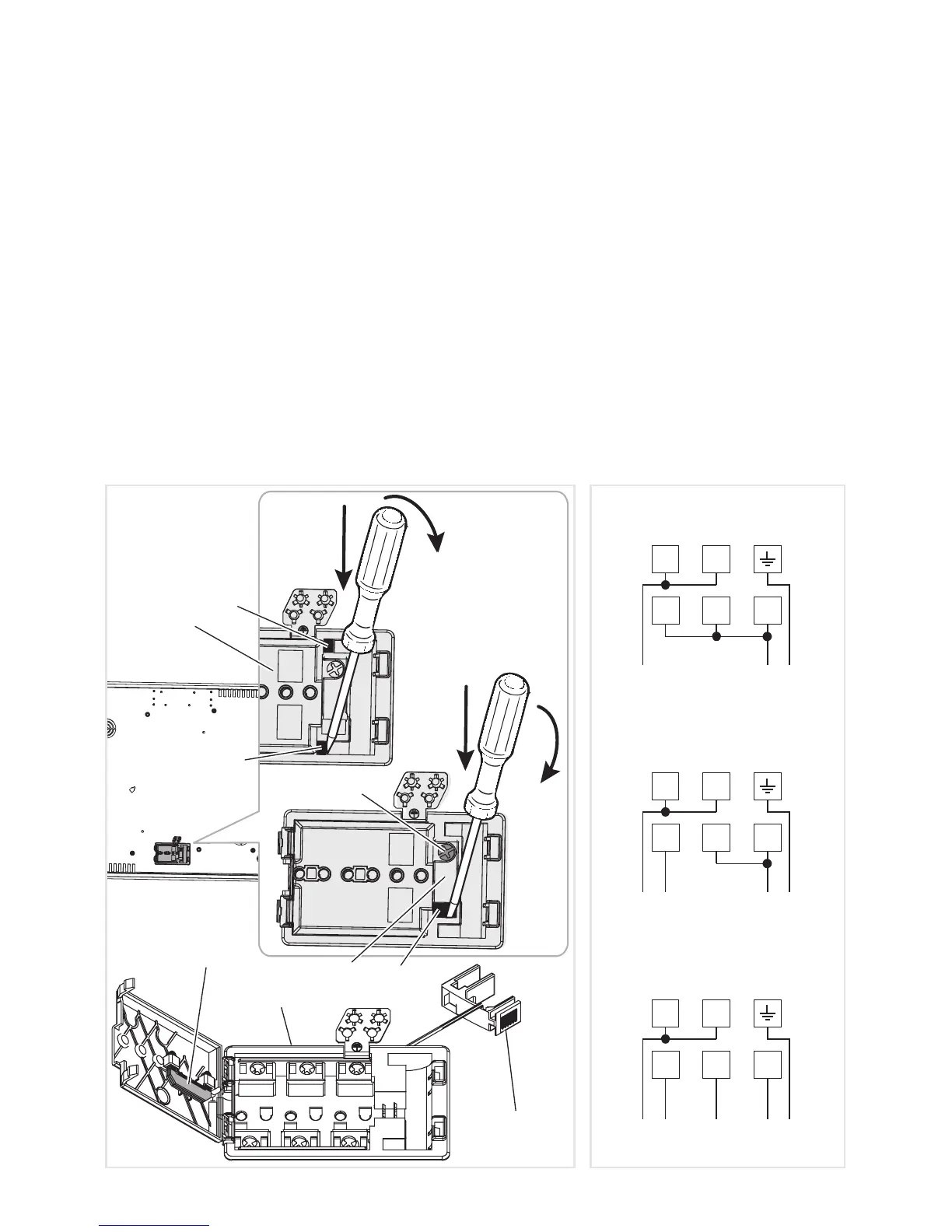

Figure 7 Figure 8
1
2
1
2
220 - 240 V~
L
1 N (L 2 ) PE
4
2
5
1
3
380 - 415 V 2N~
L
1 N PE
4
2
5
1
3
L 2
380 - 415 V 3N~
L
3 N PE
4
2
5
1
3
L 1 L 2
