Fuel, Emission and Exhaust System
D:05:03
:
G-GREEN
B-BLACK
WS-WHITE/SLATE
BY-BLACK/YELLOW
BG-BLACK/GREEN
BLG-BLACK/LIGHT GREEN
BS- BLACK/SLATE
BR-BLACK/RED
BK-BLACK/PINK
Fig. 39
From Main Relay
•<Cj "HOT" when ignition switch
in run or start position.
_^ From coil terminal No. 1
^^ RPM pulse signal
BS
©
--©•G^fc-
BY
BLG

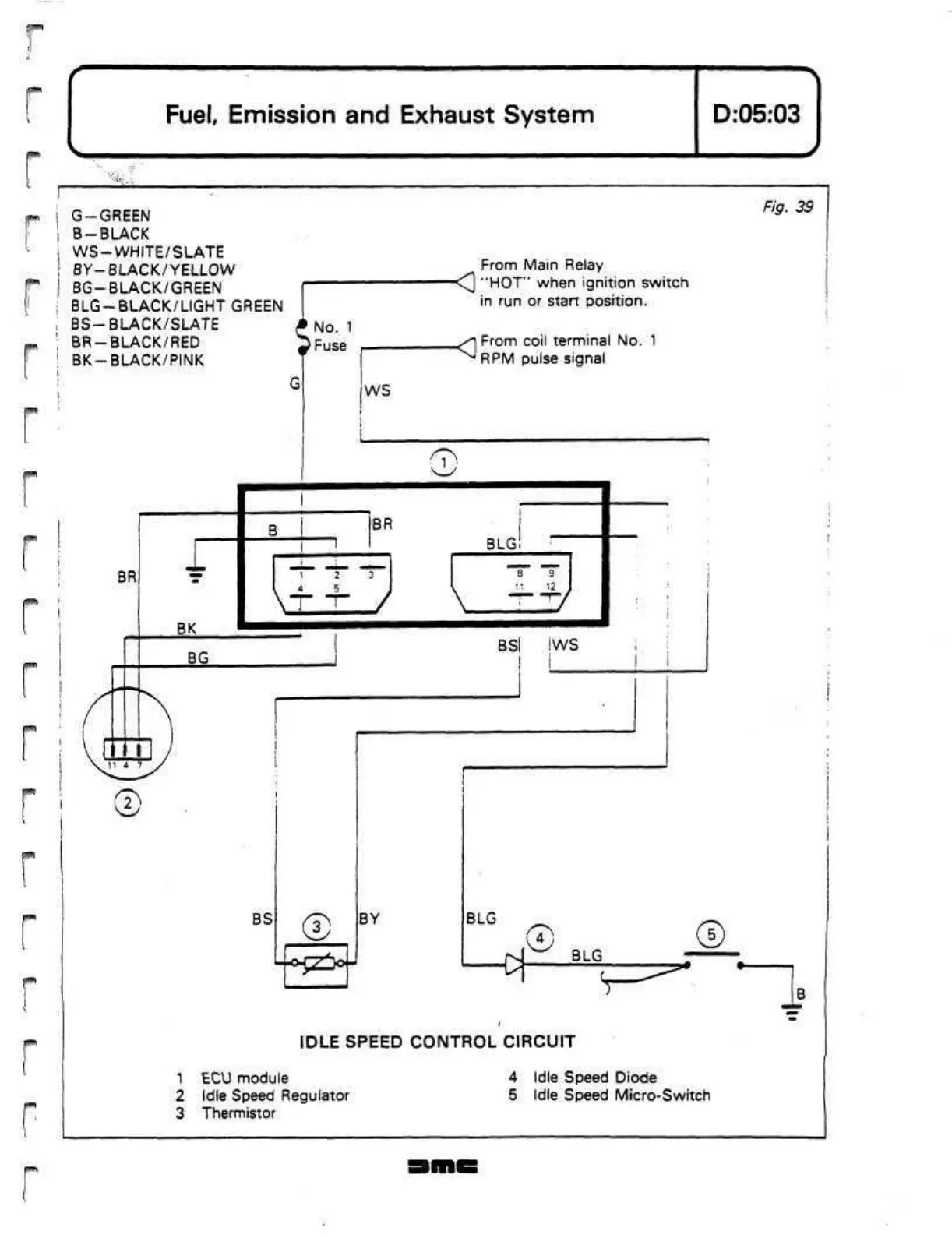

IDLE SPEED CONTROL CIRCUIT
1 ECU module
2 Idle Speed Regulator
3 Thermistor
4 Idle Speed Diode
5 Idle Speed Micro-Switch
