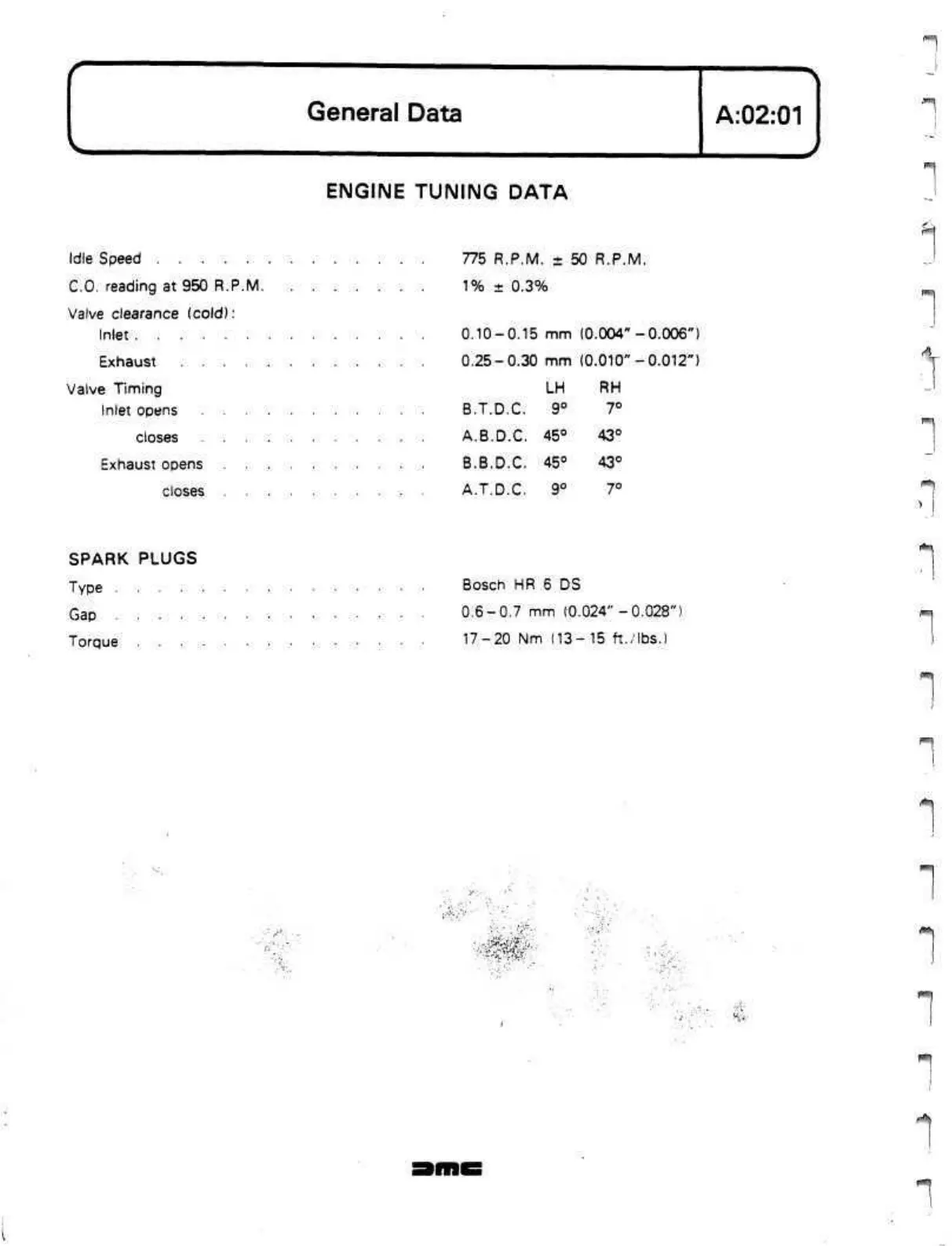

Delorean DMC - Engine Tuning Data

General Data
A:02:01
ENGINE TUNING DATA
,[:••• -j
Idle Speed 775 R.P.M. ± 50 R.P.M.
CO. reading at 950 R.P.M 1% ± 0.3%
Valve clearance (cold):
Inlet 0.10-0.15 mm (0.004" -0.006")
Exhaust 0.25-0.30 mm (0.010"-0.012")
Valve Timing LH RH
Inlet opens B.T.D.C. 9° 7°
closes A.B.D.C. 45° 43°
Exhaust opens B.B.D.C. 45° 43°
closes A.T.D.C. 9° 7°
SPARK PLUGS
Type Bosch HR 6 DS
Gap 0.6-0.7 mm (0.024"-0.028")
Torque 17-20 Nm (13- 15 ft./lbs.)
