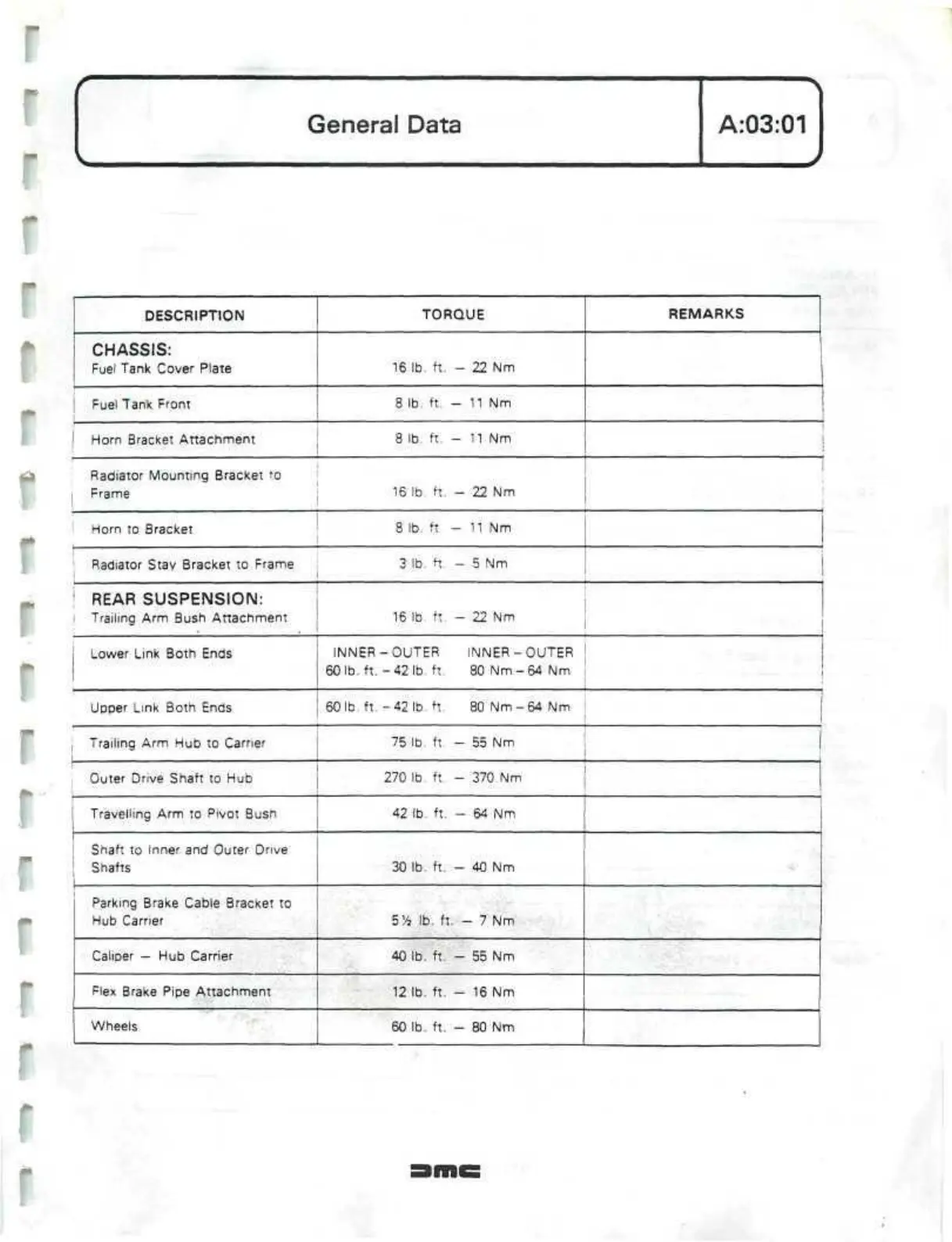

General Data A:03:01
DESCRIPTION
CHASSIS:
Fuel Tank Cover Plate
Fuel Tank Front
-
Horn Bracket Attachment
Radiator Mounting Bracket TO
Frame
Horn to Bracket
Radiator Stay Bracket to Frame
l
'
REAR SUSPENSION:
Trailing Arm Bush Attachment
Lower Link Both Ends
Upper
Link
Both Ends
Trailing Arm Hub to Carrier
r—
Outer Drive Shaft to Hub
Travelling Arm to Pivot Bush
Shaft to Inner and Outer Drive
|
Shafts
i
Parking Brake Cable Bracket to
Hub Carrier
Caliper — Hub Carrier
Flex Brake Pipe Attachment
Wheels
TORQUE
16 lb. ft. - 22
Nm
8 lb. ft. - 11 Nm
8 lb. ft. - 11 Nm
16 lb. ft. - 22 Nm
REMARKS
8 lb. ft - 11 Nm
3 lb. ft. - 5 Nm
16
lb
ft. - 22 Nm
INNER-OUTER INNER-OUTER
!
60
lb.
ft.-42
lb. ft.
80Nm-64Nm
60
lb.
ft.-42
lb. ft.
80Nm-64Nm
|
75 lb. ft. - 55 Nm I
l
270 lb. ft. - 370 Nm
42 lb. ft. - 64 Nm
30
lb.
ft. - 40 Nm
5
1
/?
lb. ft. - 7 Nm
40 lb. ft. - 55 Nm
12 lb. ft. - 16 Nm
60 lb. ft. - 80 Nm
•
f
