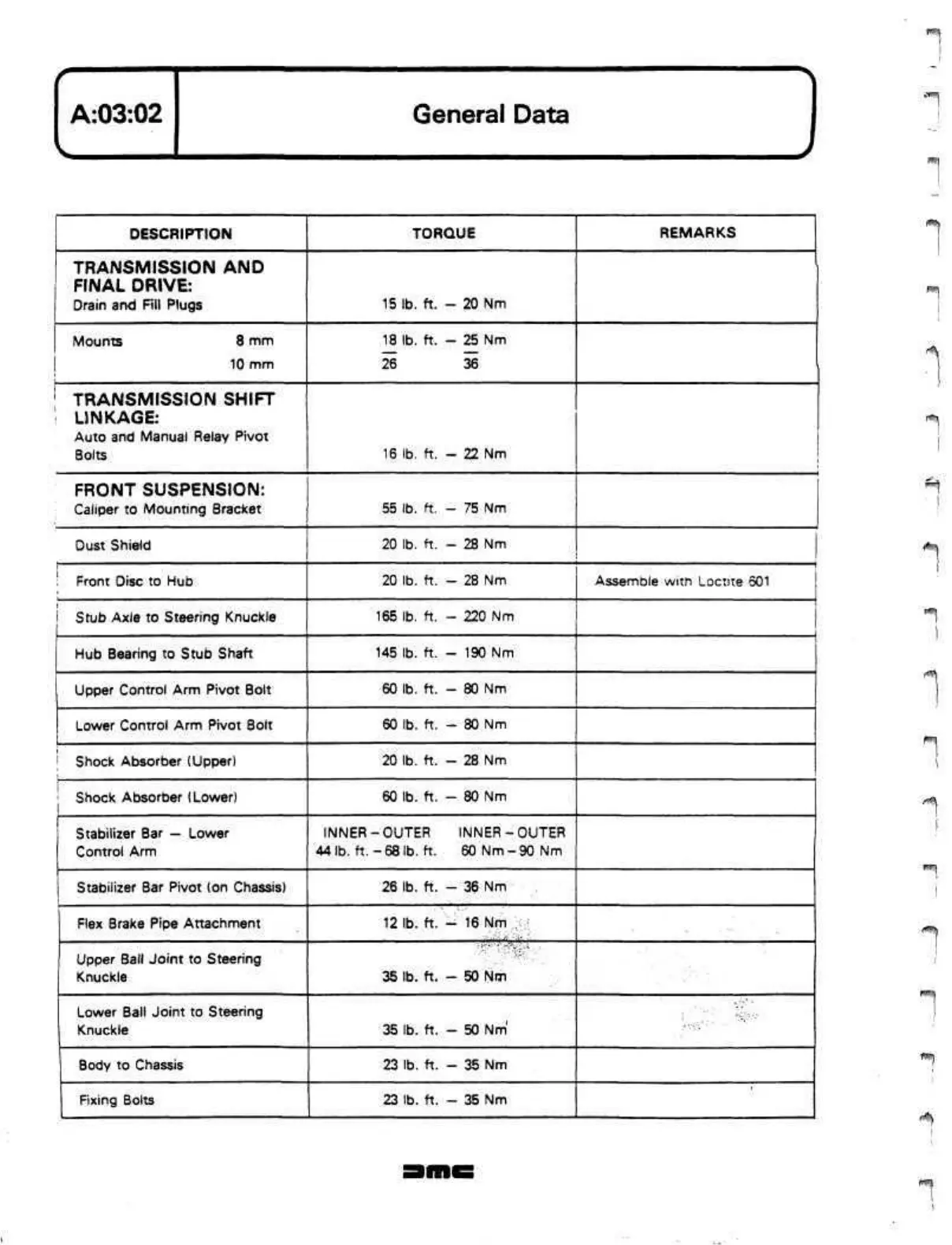

A:03:02
General Data
DESCRIPTION
TRANSMISSION AND
FINAL DRIVE:
Drain and Fill Plugs
Mounts 8 mm
10 mm
TRANSMISSION SHIFT
LINKAGE:
Auto and Manual Relay Pivot
Bolts
FRONT SUSPENSION:
Caliper to Mounting Bracket
Dust Shield
Front Disc to Hub
i
i Stub Axle to Steering Knuckle
Hub Bearing to Stub Shaft
Upper Control Arm Pivot Bolt
Lower Control Arm Pivot Bolt
Shock Absorber (Upper)
Shock Absorber (Lower)
Stabilizer Bar — Lower
Control Arm
Stabilizer Bar Pivot (on Chassis)
I
Flex Brake Pipe Attachment
Upper Ball Joint to Steering
Knuckle
Lower Ball Joint to Steering
Knuckle
Body to Chassis
Fixing Bolts
TORQUE
15 lb. ft. - 20 Nm
18 lb. ft. - 25 Nm
26 36
16 lb. ft. - 22 Nm
55 lb. ft. - 75 Nm
20 lb. ft. - 28 Nm
20 lb. ft. - 28 Nm
165 lb. ft. - 220 Nm
145 lb. ft. - 190 Nm
60 lb. ft. - 80 Nm
60 lb. ft. - 80 Nm
20 lb. ft. - 28 Nm
60 lb. ft. - 80 Nm
INNER-OUTER INNER-OUTER
44lb. ft.-68lb. ft. 60Nm-90Nm
26 lb. ft. - 36 Nm
12 1b. ft. - 16 Nm
:
0.
35 lb. ft. - 50 Nm
35 lb. ft. - 50 Nm
23 lb. ft. - 35 Nm
23 lb. ft. - 35 Nm
