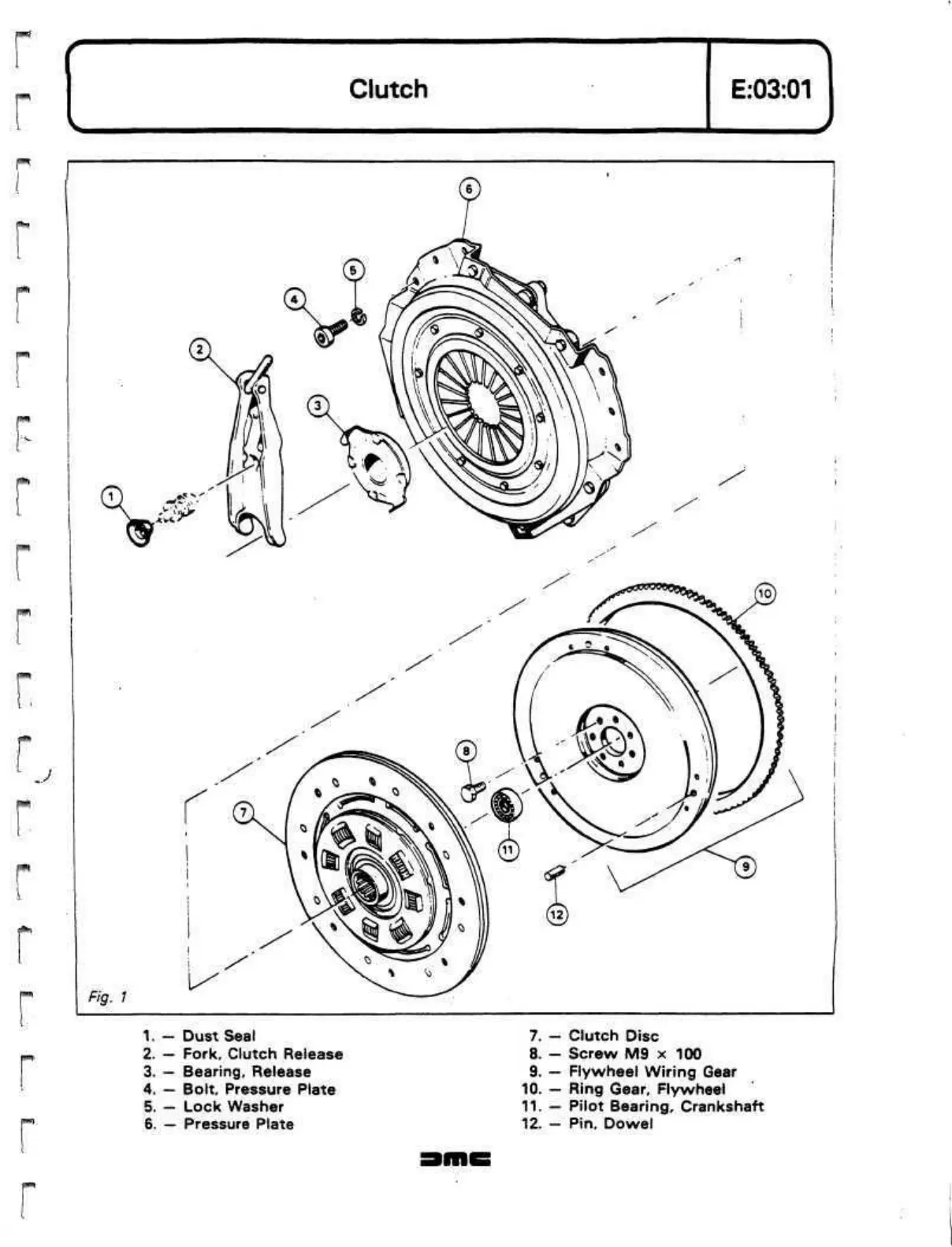

Fig. 1
1. — Dust Seal
2. — Fork, Clutch Release
3. — Bearing, Release
4. — Bolt, Pressure Plate
5. — Lock Washer
6. — Pressure Plate
7. — Clutch Disc
8. — Screw M9 x 100
9. — Flywheel Wiring Gear
10. — Ring Gear, Flywheel
11. — Pilot Bearing, Crankshaft
12. — Pin, Dowel
