Clutch

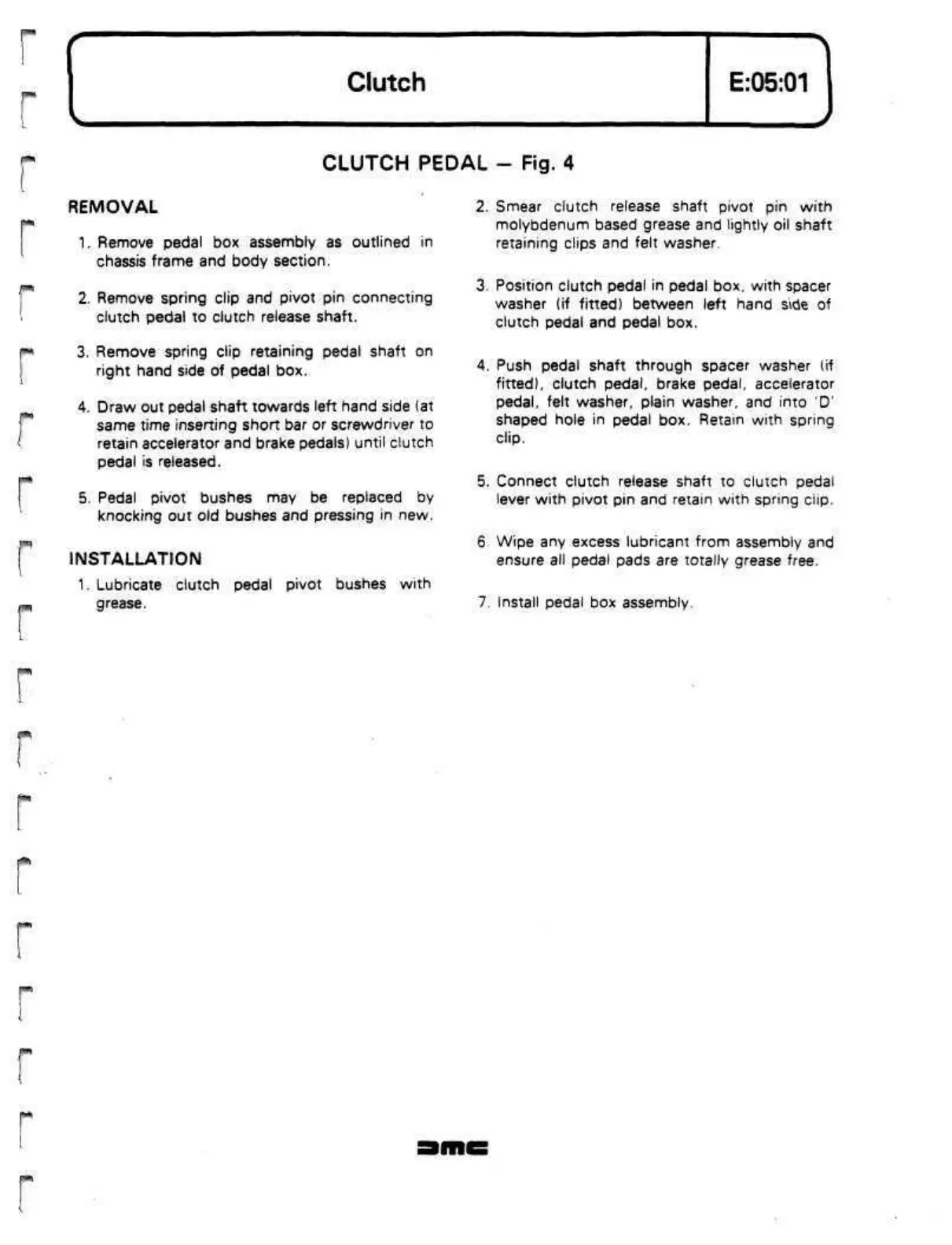

CLUTCH PEDAL - Fig. 4
^T^H,
^
REMOVAL
1. Remove pedal box assembly as outlined in
chassis frame and body section.
2. Remove spring clip and pivot pin connecting
clutch pedal to clutch release shaft.
3. Remove spring clip retaining pedal shaft on
right hand side of pedal box.
4. Draw out pedal shaft towards left hand side (at
same time inserting short bar or screwdriver to
retain accelerator and brake pedals) until clutch
pedal is released.
5. Pedal pivot bushes may be replaced by
knocking out old bushes and pressing in new.
INSTALLATION
1. Lubricate clutch pedal pivot bushes with
grease.
2. Smear clutch release shaft pivot pin with
molybdenum based grease and lightly oil shaft
retaining clips and felt washer.
3. Position clutch pedal in pedal box, with spacer
washer (if fitted) between left hand stde of
clutch pedal and pedal box.
4. Push pedal shaft through spacer washer (if
fitted), clutch pedal, brake pedal, accelerator
pedal, felt washer, plain washer, and into 'D'
shaped hole in pedal box. Retain with spring
clip.
5. Connect clutch release shaft to clutch pedal
lever with pivot pin and retain with spring ciip.
6 Wipe any excess lubricant from assembly and
ensure all pedal pads are totally grease free.
7. Install pedal box assembly.
