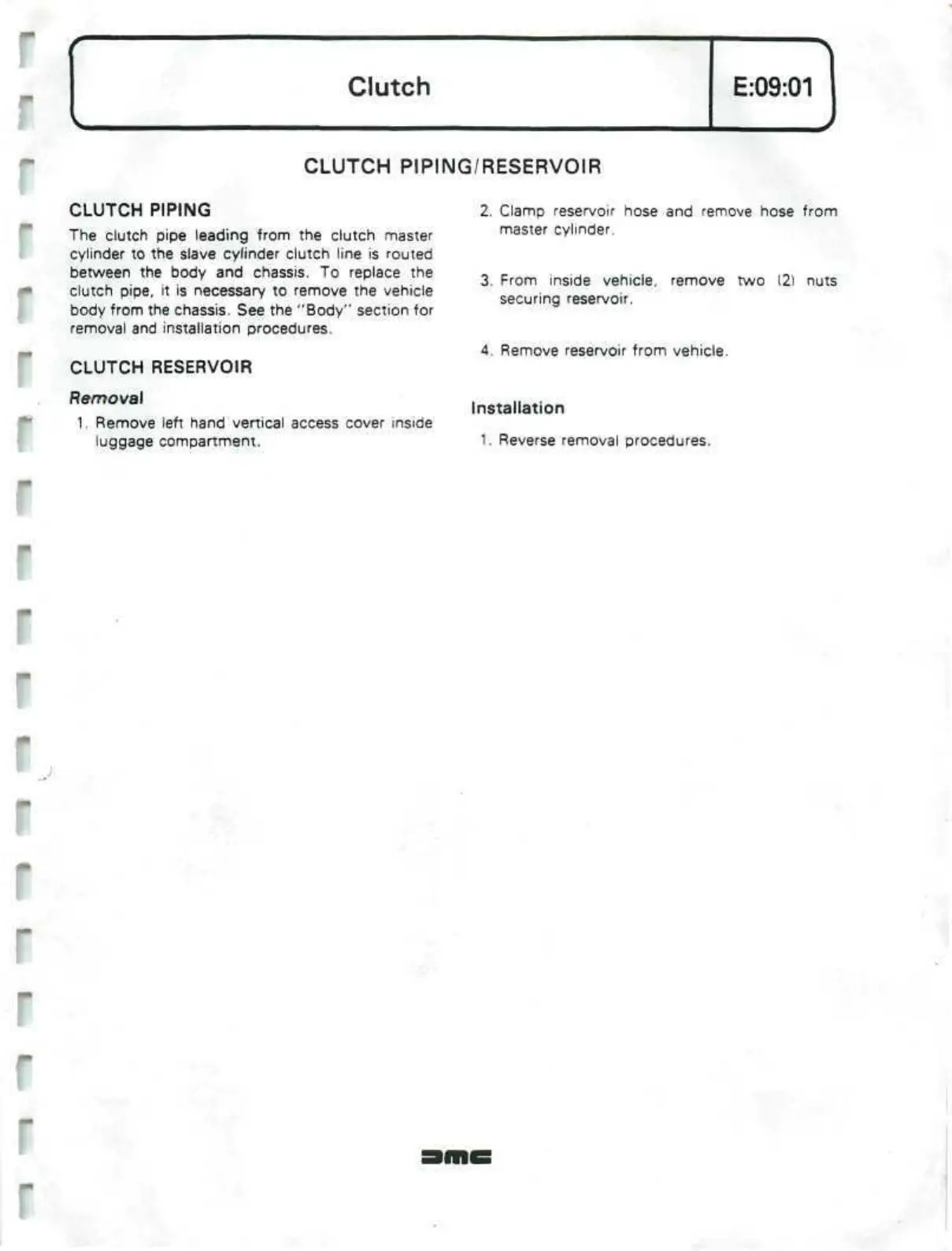

CLUTCH PIPING/RESERVOIR
CLUTCH PIPING
The clutch pipe leading from the clutch master
cylinder to the slave cylinder clutch line is routed
between the body and chassis. To replace the
clutch pipe, it is necessary to remove the vehicle
body from the chassis. See the "Body" section for
removal and installation procedures.
CLUTCH RESERVOIR
Removal
1.
Remove left hand vertical access cover inside
luggage compartment.
2.
Clamp reservoir hose and remove hose from
master cylinder.
3. From inside vehicle, remove two (2) nuts
securing reservoir.
4.
Remove reservoir from vehicle.
Installation
1.
Reverse removal procedures.
