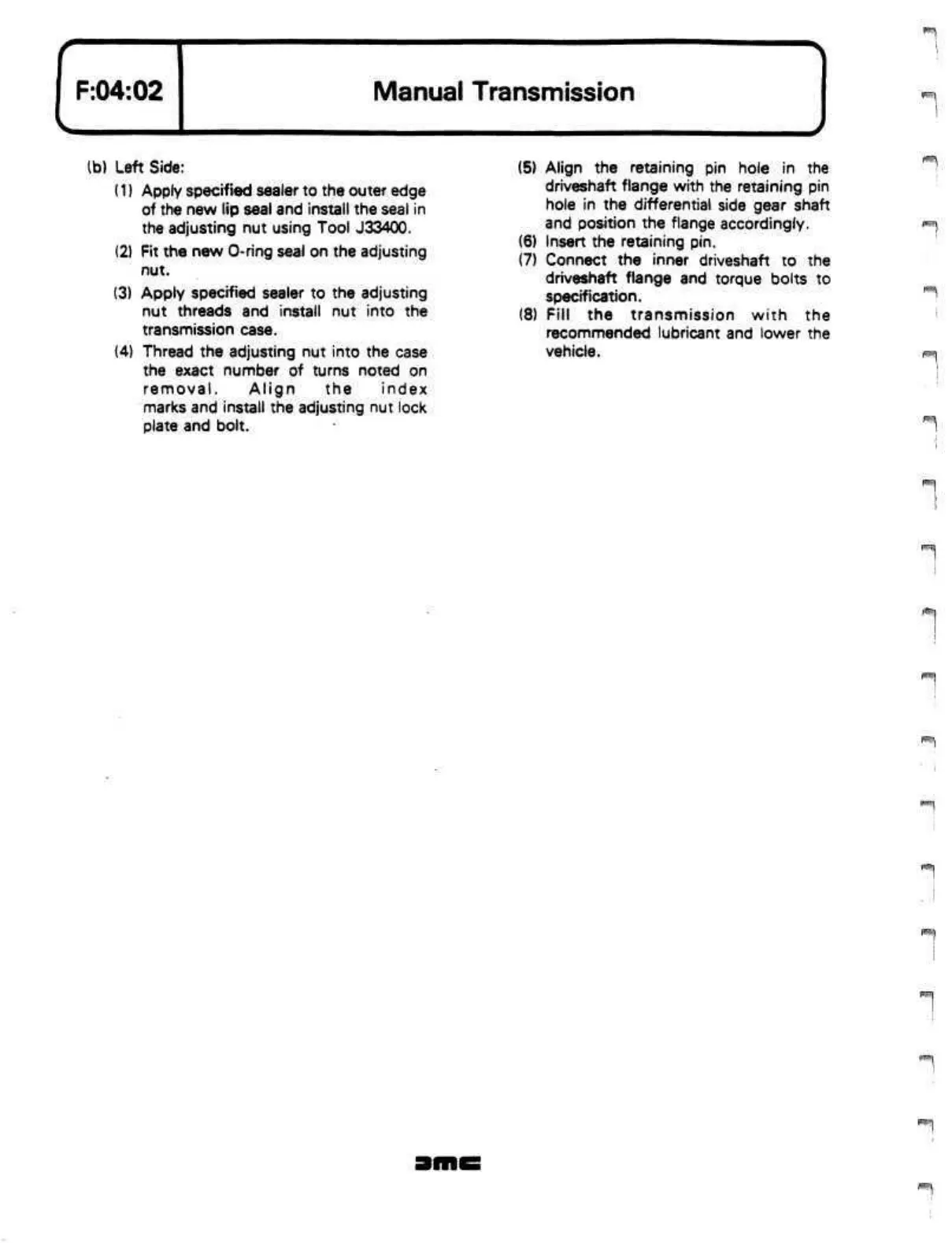

(b) Left Side:
(1)
Apply specified sealer to the outer edge
of the new lip seal and install the seal in
the adjusting nut using Tool J33400.
(2) Fit the new
O-ring
seal on the adjusting
nut.
(3) Apply specified sealer to the adjusting
nut threads and install nut into the
transmission case.
(4) Thread the adjusting nut into the case
the exact number of turns noted on
removal.
Align the index
marks and install the adjusting nut lock
plate and bolt.
(5) Align the retaining pin hole in the
driveshaft flange with the retaining pin
hole in the differential side gear shaft
and position the flange accordingly.
Insert the retaining pin.
Connect the inner driveshaft to the
driveshaft flange and torque bolts to
specification.
Fill the transmission with the
recommended lubricant and lower the
vehicle.
