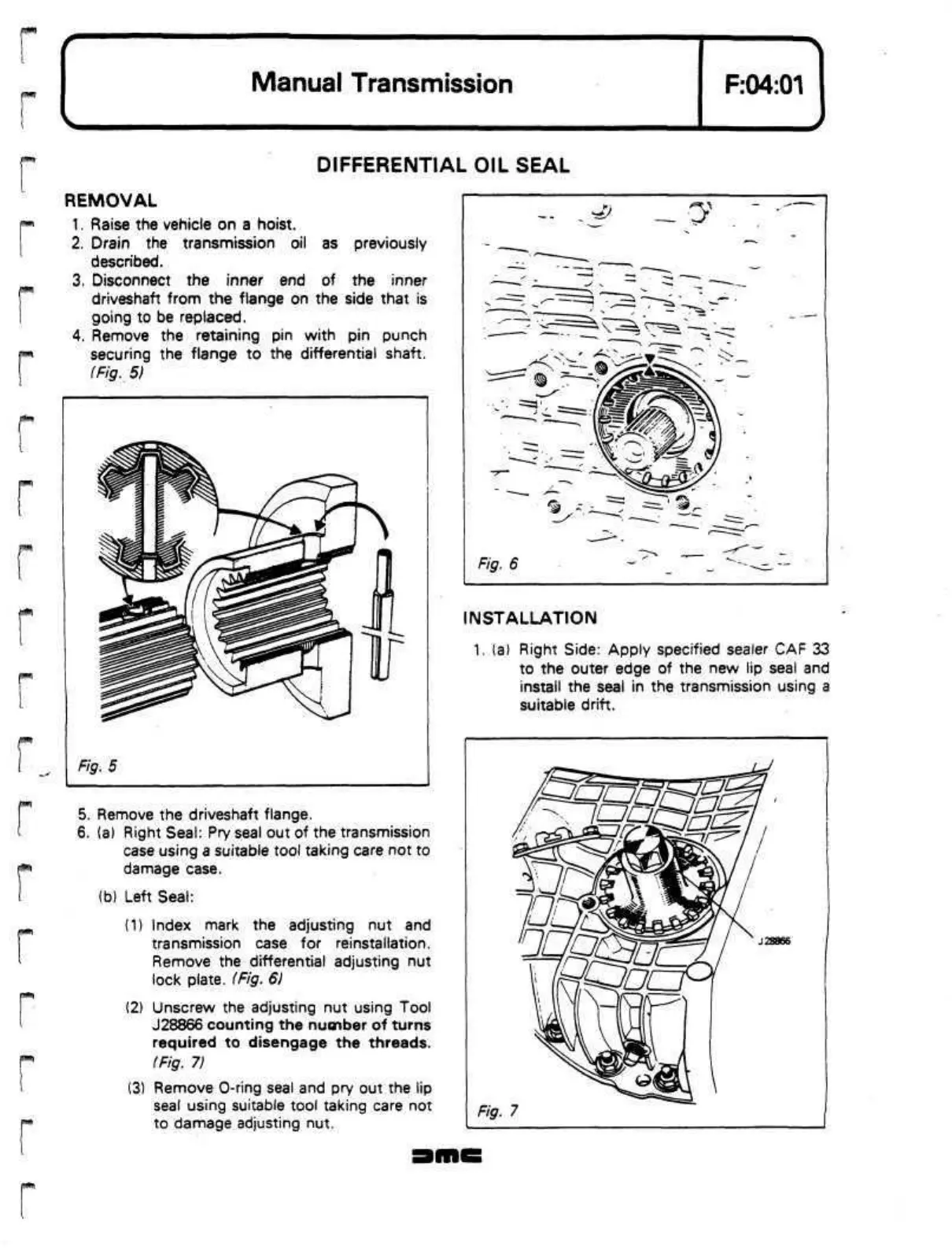

Manual Transmission
F:04:01
^
DIFFERENTIAL OIL SEAL
REMOVAL
1.
Raise the vehicle on a hoist.
2.
Drain the transmission oil as previously
described.
3. Disconnect the inner end of the inner
driveshaft from the flange on the side that is
going to be replaced.
4.
Remove the retaining pin with pin punch
securing the flange to the differential shaft.
(Fig. 5)
>
1
Fig. 5
ir
INSTALLATION
(a
1.
(a)
Right Side: Apply specified sealer CAF 33
to the outer edge of the new lip seal and
install the seal in the transmission using a
suitable drift.
5. Remove the driveshaft flange.
6. (a) Right Seal: Pry seal out of the transmission
case using a suitable tool taking care not to
damage case.
(b) Left Seal:
(1)
Index mark the adjusting nut and
transmission case for reinstallation.
Remove the differential adjusting nut
lock plate. (Fig.
6)
(2) Unscrew the adjusting nut using Tool
J28866 counting the number of turns
required to disengage the threads.
(Fig. 7)
(3) Remove
O-ring
seal and pry out the lip
seal using suitable tool taking care not
to damage adjusting nut.
