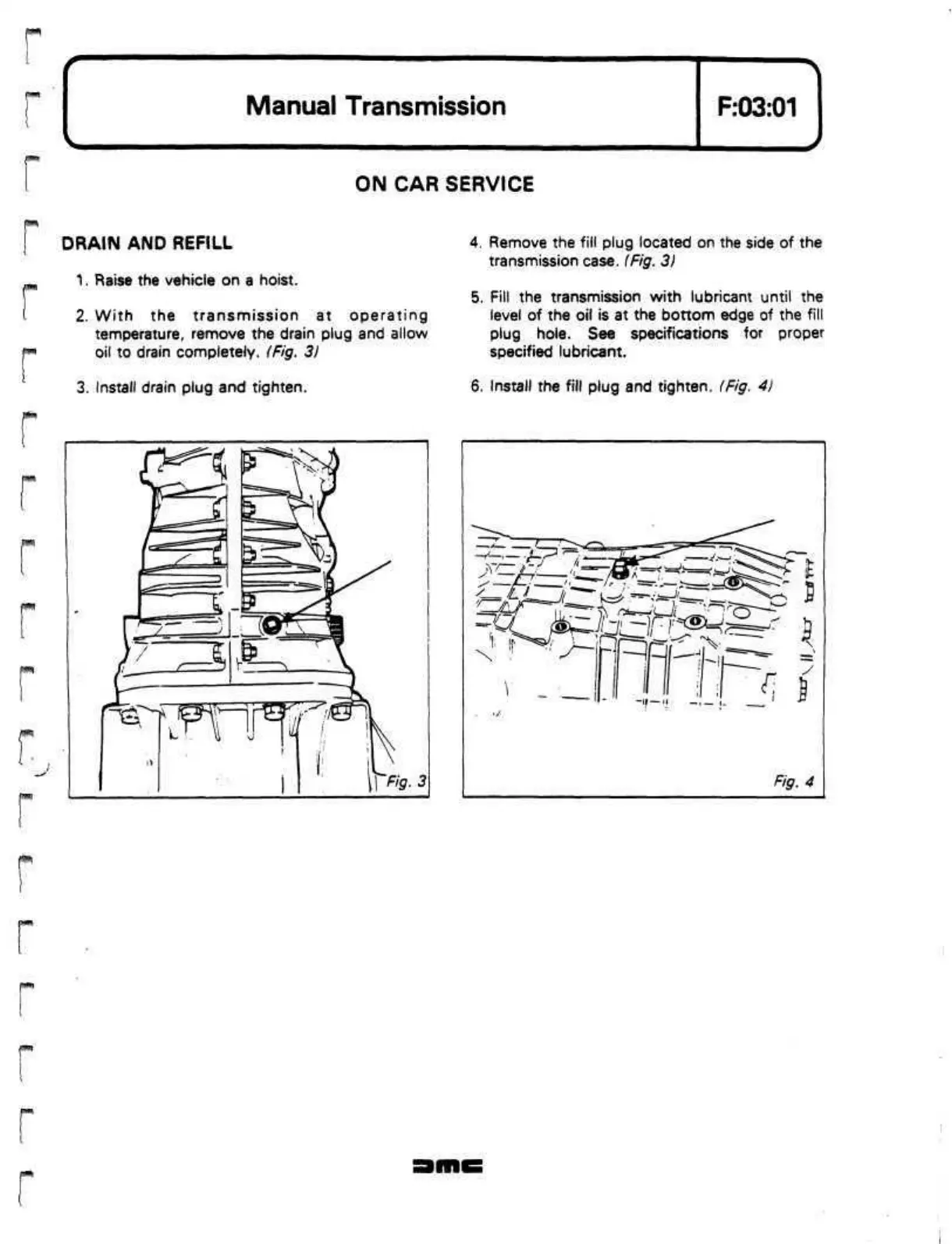

Manual Transmission
-A
F:03:01
ON CAR SERVICE
F$nn
TWty
:"W\
"i^\
DRAIN AND REFILL
1.
Raise the vehicle on a hoist.
2.
With the transmission at operating
temperature, remove the drain plug and allow
oil to drain completely. (Fig. 3)
3. Install drain plug and tighten.
4.
Remove the fill plug located on the side of the
transmission case.
(Fig.
3)
5. Fill the transmission with lubricant until the
level of the oil is at the bottom edge of the fill
plug hole. See specifications for proper
specified lubricant.
6. Install the fill plug and tighten. (Fig. 4)
-II—II
_,_
i
Fig. 4
f!09{
