Manual Transmission
*\
F:06:01

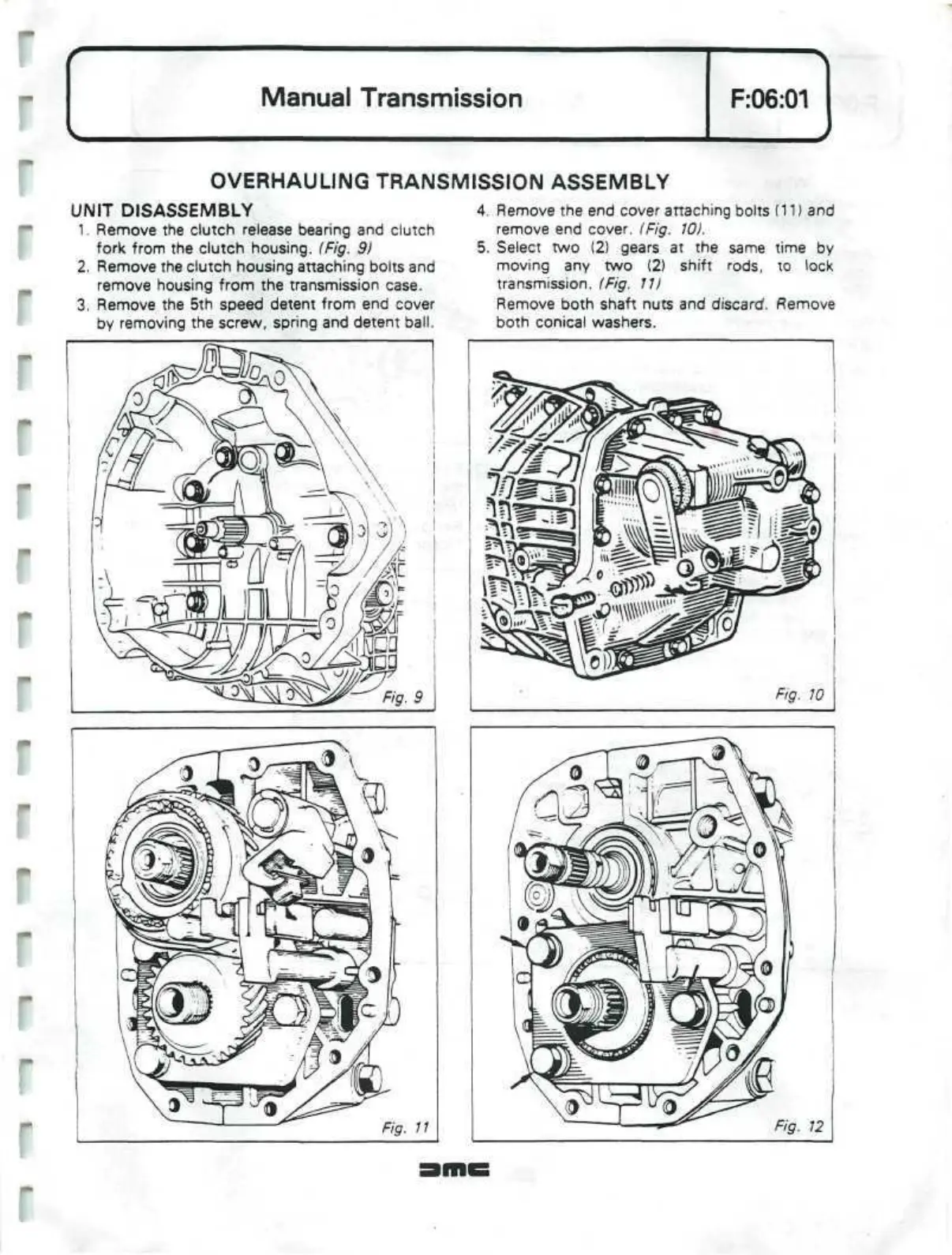

OVERHAULING TRANSMISSION ASSEMBLY
UNIT DISASSEMBLY
1.
Remove the clutch release bearing and clutch
fork from the clutch housing. (Fig. 9)
2. Remove the clutch housing attaching bolts and
remove housing from the transmission case.
3. Remove the 5th speed detent from end cover
by removing the screw, spring and detent
ball.
4.
Remove the end cover attaching bolts
(11)
and
remove end cover. (Fig.
10).
5. Select two (2) gears at the same time by
moving any two (2) shift rods, to lock
transmission. (Fig.
7
7J
Remove both shaft nuts and discard. Remove
both conical washers.
