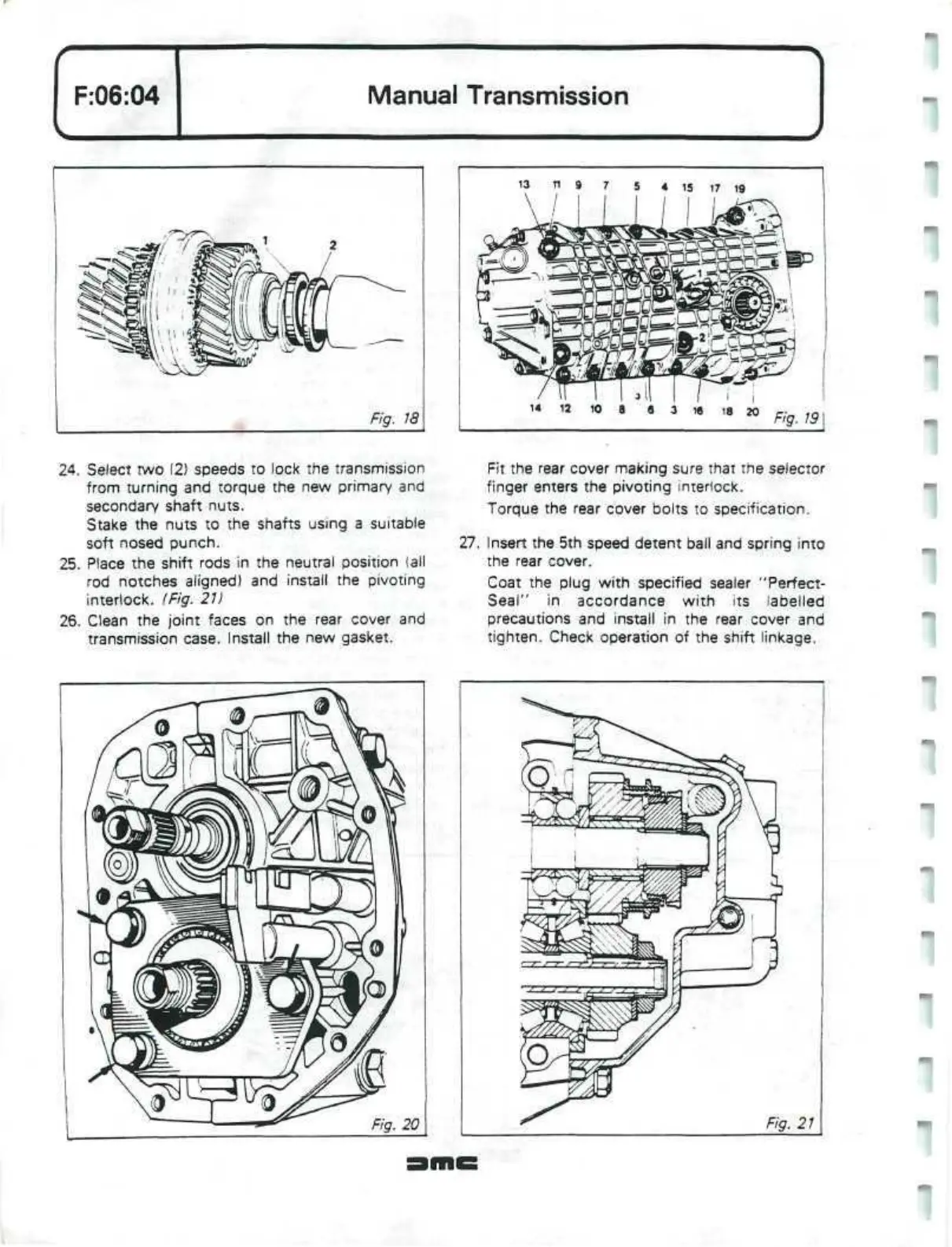

F:06:04
Manual Transmission
14 12
10
8
8
3 18 18 20
Fig.
19 \
24.
Select two (2) speeds to lock the transmission
from turning and torque the new primary and
secondary shaft nuts.
Stake the nuts to the shafts using a suitable
soft nosed punch.
25.
Place the shift rods in the neutral position (all
rod notches aligned) and install the pivoting
interlock.
(Fig.
21)
26.
Clean the joint faces on the rear cover and
transmission case. Install the new gasket.
Fit the rear cover making sure that the selector
finger enters the pivoting interlock.
Torque the rear cover bolts to specification.
27.
Insert the 5th speed detent ball and spring into
the rear cover.
Coat the plug with specified sealer "Perfect-
Seal"
in accordance with its labelled
precautions and install in the rear cover and
tighten.
Check operation of the shift linkage.
