Automatic Transmission
G:09:03
8. Remove the outer bearing race and planetary
carrier shims from the housing using a brass
drift. Retain the shims for reassembly. Fig. 72
9. Remove the parking pawl by releasing the
retracting spring and remove the pivot pin.
Reassembly
1. Lubricate the thrust washer No. 16 with
automatic transmission fluid and install on the
carrier shaft. Fig. 71
2. Install the brake Hub No. 14 on the carrier
shaft. Fig. 71
3. Lubricate the needle bearing with automatic
transmission fluid and install the washer and
needle bearing on the carrier shaft.
5. Install the spacer No. 10 on the carrier shaft
with its larger diameter facing the park
sprocket. Fig. 71
6. Fit the parking pawl in the housing and install
the pivot pin. Attach the retracting spring to
the pawl.
7. Fit the bearing race planetary carrier clearance
shims (removed during disassembly) and the
bearing outer race in the housing. Ensure that
the race is fully seated. Fig. 72
8. Install the planetary gear carrier in the housing.
Notice:
Do not install the lip seal in the housing at this
time.
Notice:
Place the needle bearing on top of the washer with
the needles facing the washer.
4. Install the park sprocket on the earner shaft
with its diameter flange facing the bearing.
9. Install the roller bearing and spacer sleeve on
the carrier shaft.
10 Install the output gear on the carrier shaft
WITH THE GROOVE IN THE GEAR FACING
UPWARD.
SHIMS
L
RACE

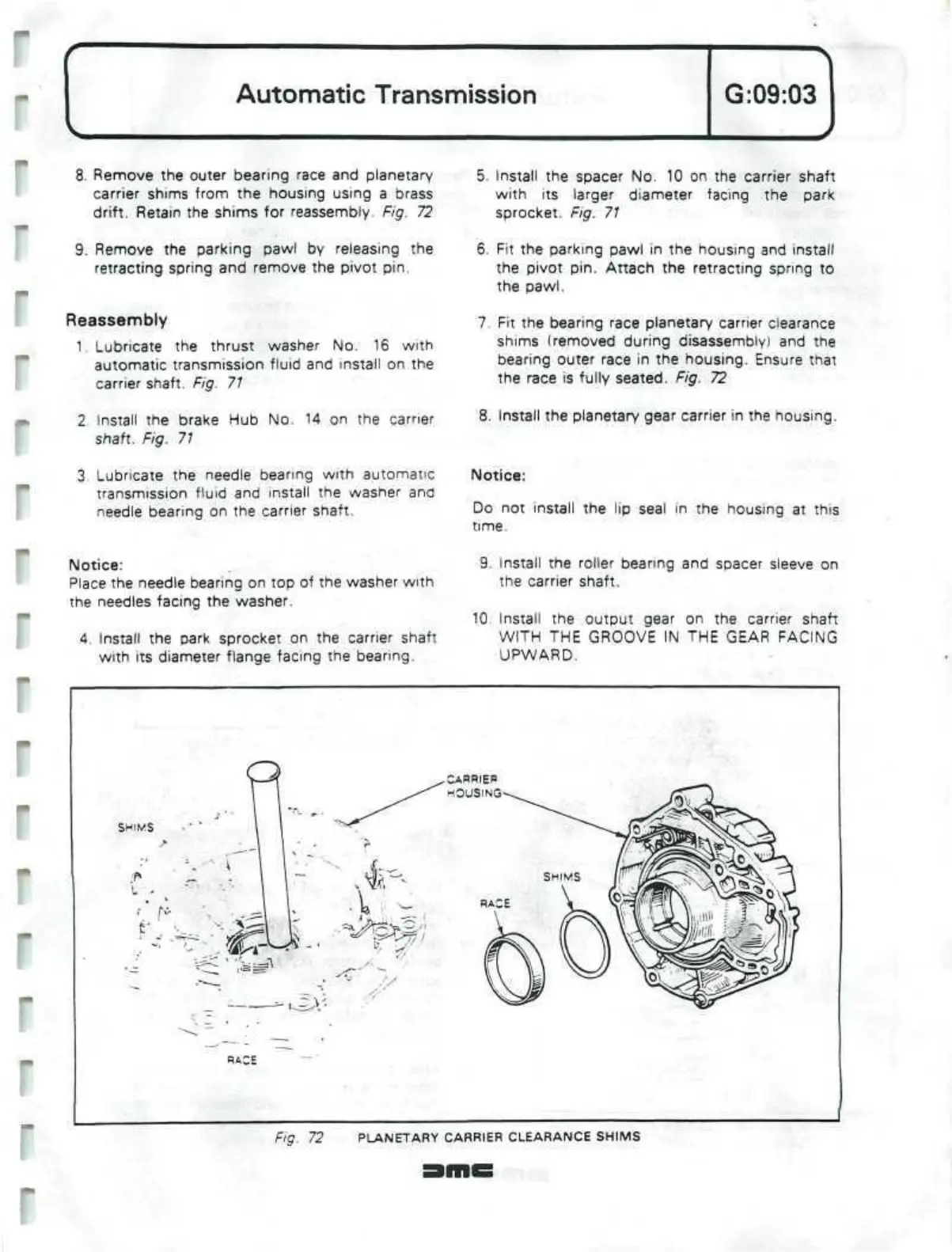

Fig. 72 PLANETARY CARRIER CLEARANCE SHIMS
