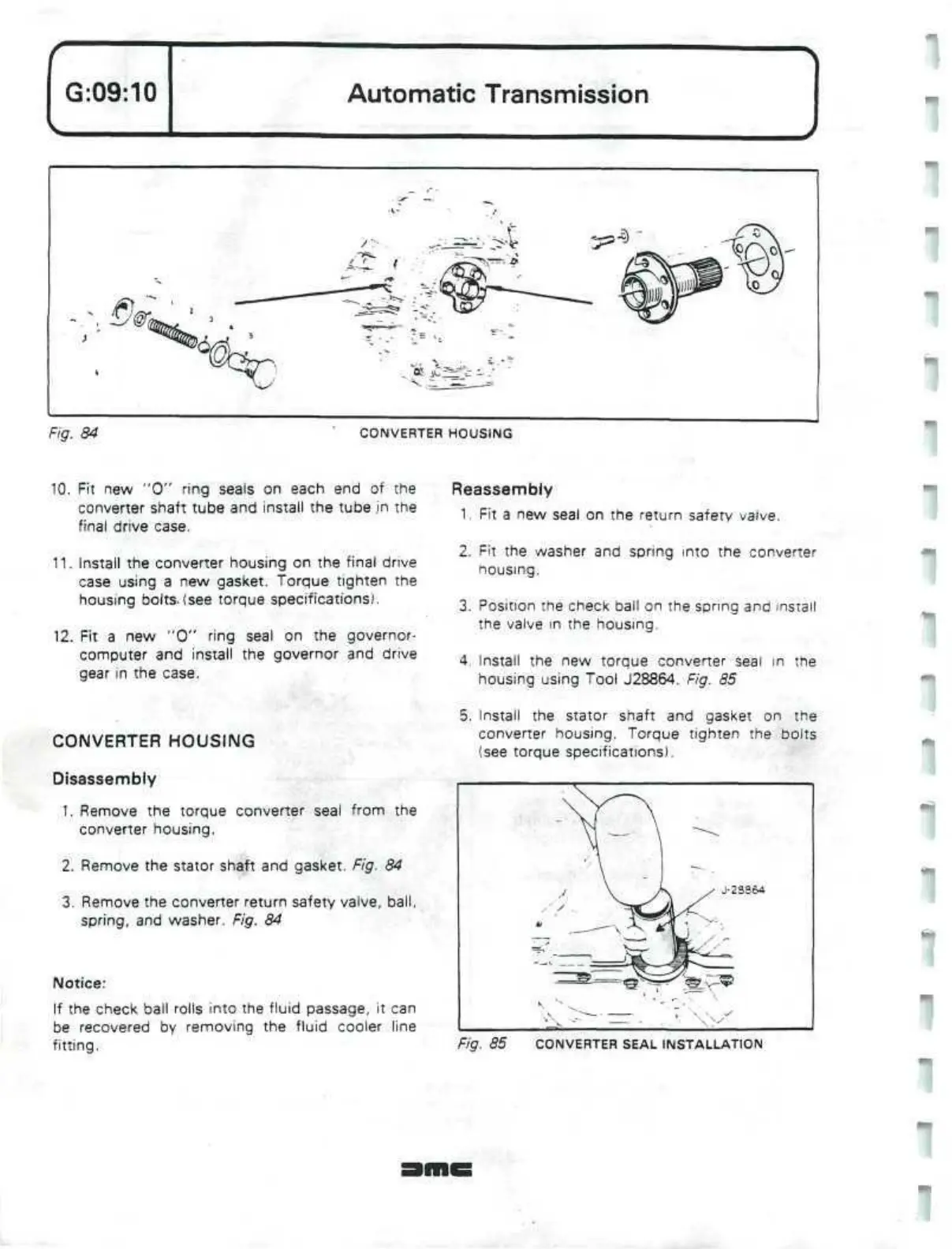

Automatic Transmission
Fig. 84
CONVERTER HOUSING
10.
Fit new "0" ring seals on each end of the
converter shaft tube and install the tube in the
final drive case.
11.
Install the converter housing on the final drive
case using a new gasket. Torque tighten the
housing
bolts-(see
torque specifications).
12.
Fit a new "0" ring seal on the governor-
computer and install the governor and drive
gear in the case.
CONVERTER HOUSING
Disassembly
1.
Remove the torque converter seal from the
converter housing.
2.
Remove the stator shaft and gasket. Fig. 84
3. Remove the converter return safety valve,
ball,
spring,
and washer. Fig. 84
Notice:
If
the check ball rolls into the fluid passage, it can
be recovered by removing the fluid cooler line
fitting.
Reassembly
1.
Fit a new seal on the return
saferv
val^e.
2. Fit the washer and spring
into
the converter
housing.
3. Position the check ball on the spring and install
the valve
in
the housing.
4.
Install the new torque converter seal in the
housing using Tool J28864. Fig. 85
5. Install the stator shaft and gasket on the
converter housing. Torque tighten the bolts
(see torque specifications).
-
•
,/
,. •
y
.
ii
=1/
--"•
-
K
'"
v.
^ -"
\1
'
\
_ \ •'S M
w
'
J
.
pk.
•s -7
— -
r
1
-
y
J-23S64
1
V
:
•
S>-y-^
Fig. 85 CONVERTER SEAL INSTALLATION
