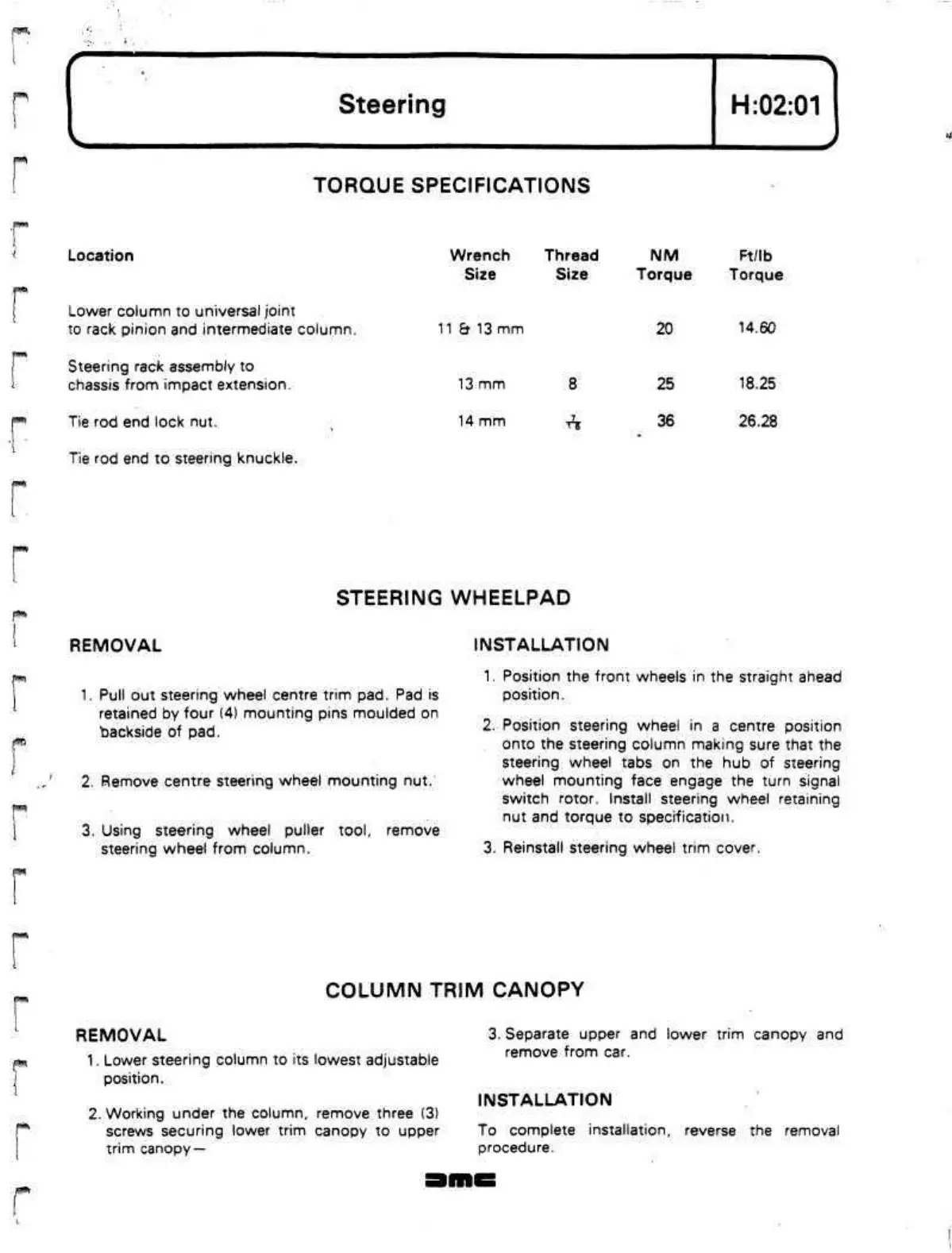

Steering
H:02:01
FW\
TORQUE SPECIFICATIONS
Location
Lower column to universal joint
to rack pinion and intermediate column.
Steering rack assembly to
chassis from impact extension.
Tie rod end lock nut.
Tie rod end to steering knuckle.
Wrench Thread NM Ft/lb
Size Size Torque Torque
11
&
13
mm
13
mm
14
mm
8
*
20
25
36
14.60
18.25
26.28
STEERING WHEELPAD
REMOVAL
1.
Pull out steering wheel centre trim pad. Pad is
retained by four (4) mounting pins moulded on
backside of pad.
2.
Remove centre steering wheel mounting
nut.
3. Using steering wheel puller
tool,
remove
steering wheel from column.
INSTALLATION
1.
Position the front wheels in the straight ahead
position.
2.
Position steering wheel in a centre position
onto the steering column making sure that the
steering wheel tabs on the hub of steering
wheel mounting face engage the turn signal
switch rotor. Install steering wheel retaining
nut and torque to specification.
3. Reinstall steering wheel trim cover.
COLUMN TRIM CANOPY
REMOVAL
1.
Lower steering column to its lowest adjustable
position.
2.
Working under the column, remove three (3)
screws securing lower trim canopy to upper
trim canopy
—
3. Separate upper and lower trim canopy and
remove from car.
INSTALLATION
To complete installation, reverse the removal
procedure.
