Front Suspension
J:01:01
GENERAL DESCRIPTION
The front suspension is fully independent with upper and lower control arms, stabilizer bar and steering
knuckle assembly. Telescopic shock absorbers, secured to the chassis frame tower at the absorber's upper
end and to the lower control arm at the absorber's lower end, are positioned through the
coil
springs.
The single front spindle bearing supports the hub assembly on the spindle which is fastened to the steering
knuckle. The steering knuckle is secured to the upper and lower control arms with upper and lower ball
joints and to the steering system
with
an adjustable tie rod. Fig. 1 and Fig. 2

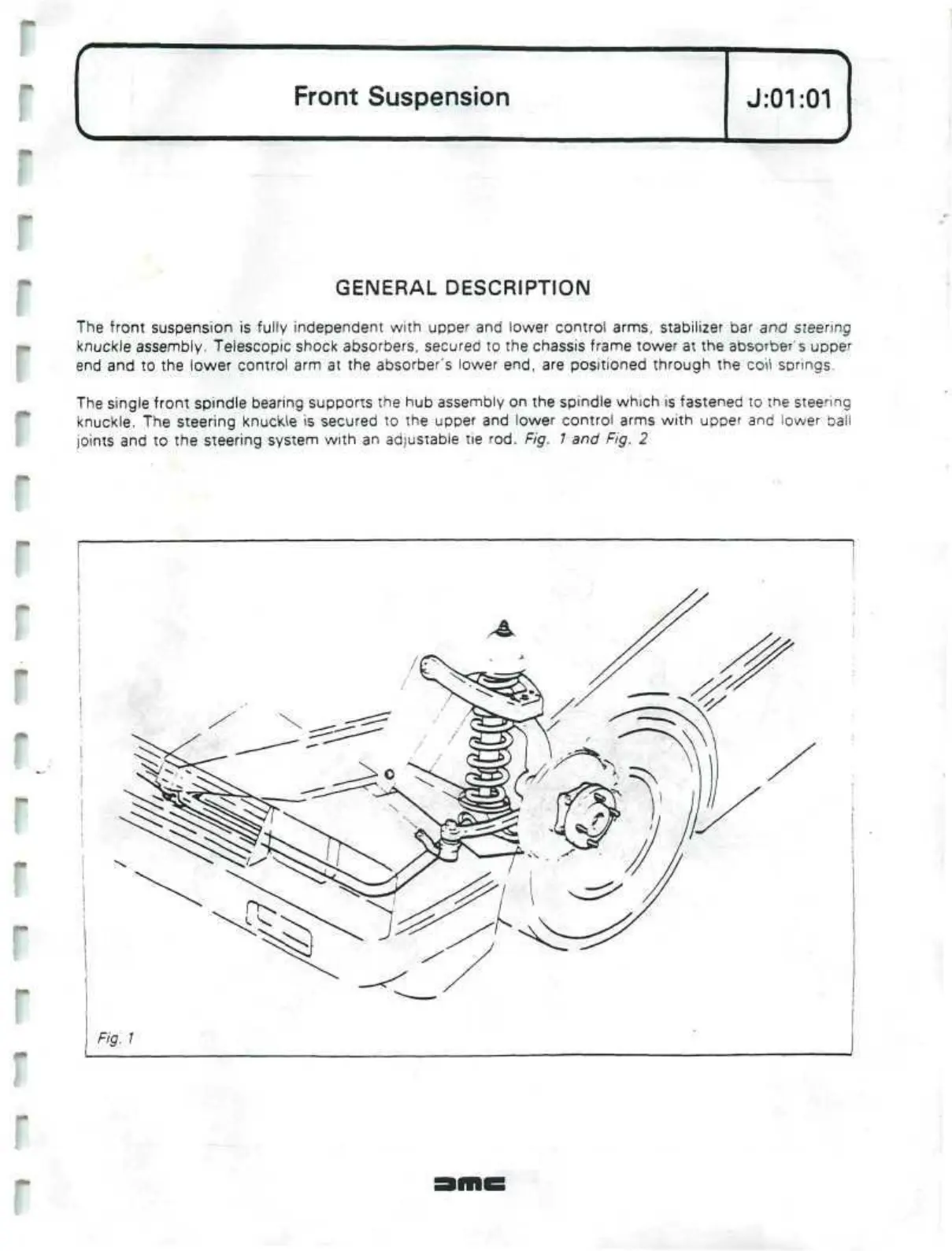

Fig. 1
