Front Suspension
J:02:01

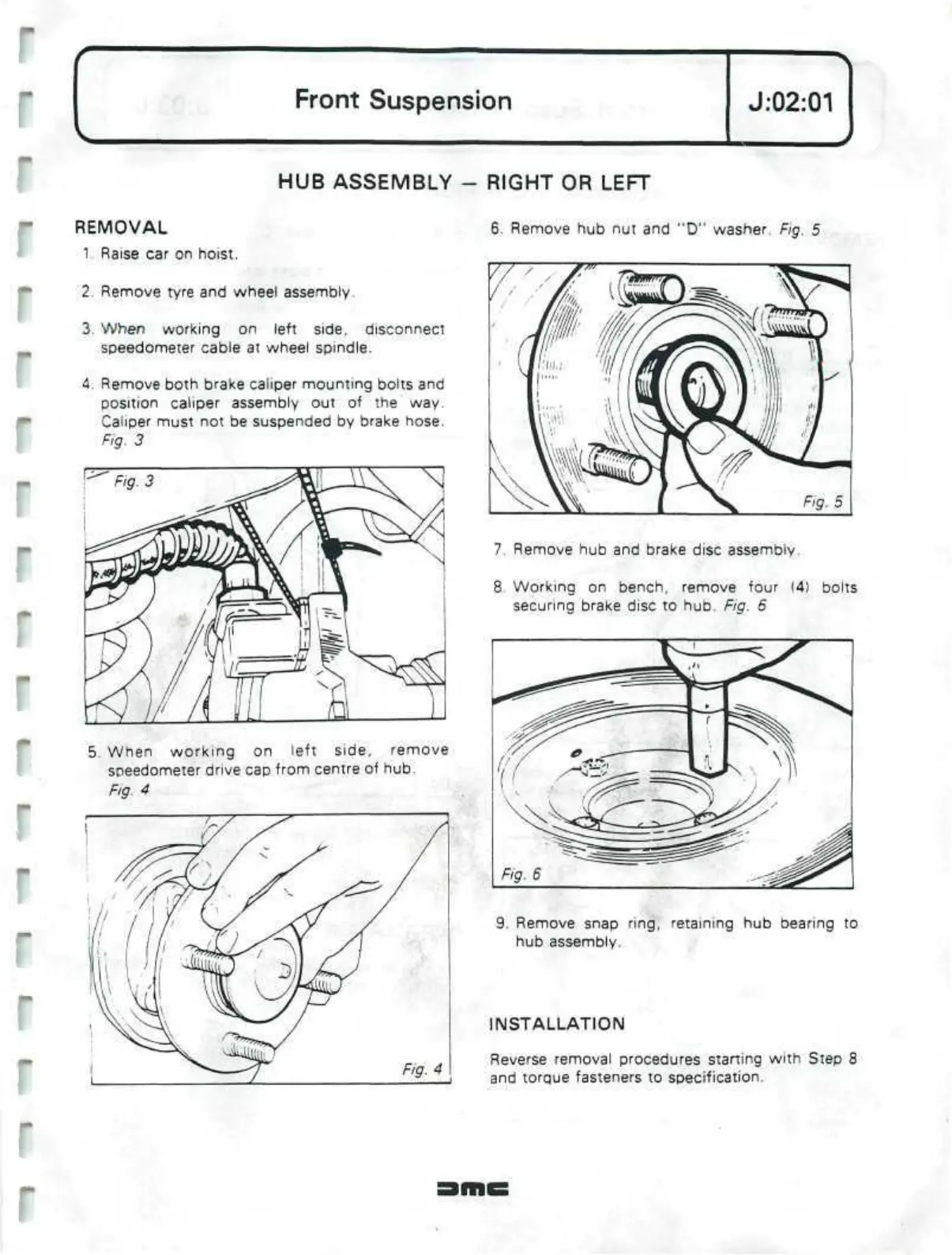

HUB ASSEMBLY - RIGHT OR LEFT
REMOVAL
1. Raise car on hoist.
2. Remove tyre and wheel assembly.
3. When working on left side, disconnect
speedometer cable at wheel spindle.
4. Remove both brake caliper mounting bolts and
position caliper assembly out of the way.
Caliper must not be suspended by brake hose.
Fig. 3
6. Remove hub nut and "D" washer. Fig. 5
5. When working on left side, remove
speedometer drive cap from centre of hub.
Fig. 4
7. Remove hub and brake disc assembly.
8. Working on bench, remove four (4) bolts
securing brake disc to hub. Fig. 6
9. Remove snap ring, retaining hub bearing to
hub assembly.
INSTALLATION
Reverse removal procedures starting with Step 8
and torque fasteners to specification.
