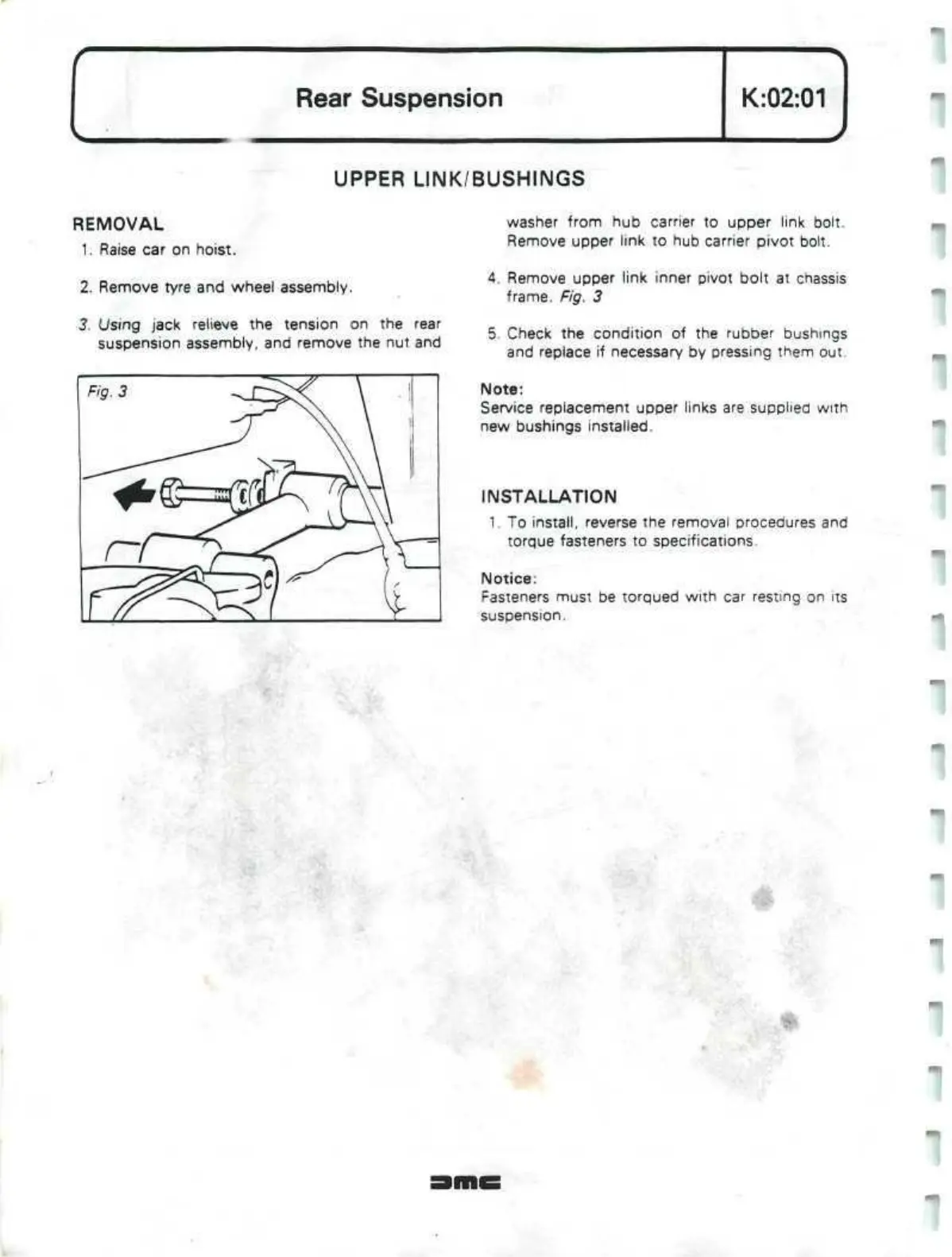

Rear Suspension
K:02:01
UPPER LINK/BUSHINGS
REMOVAL
1.
Raise car on hoist.
2.
Remove tyre and wheel assembly.
3. Using jack relieve the tension on the rear
suspension assembly, and remove the nut and
washer from hub carrier to upper link bolt.
Remove upper link to hub carrier pivot bolt.
4.
Remove upper link inner pivot bolt at chassis
frame.
Fig. 3
5. Check the condition of the rubber bushings
and replace if necessary by pressing them out.
Note:
Service replacement upper links are supplied
with
new bushings installed.
INSTALLATION
1.
To install, reverse the removal procedures and
torque fasteners to specifications.
Notice:
Fasteners must be torqued
with
car resting on its
suspension.
"
