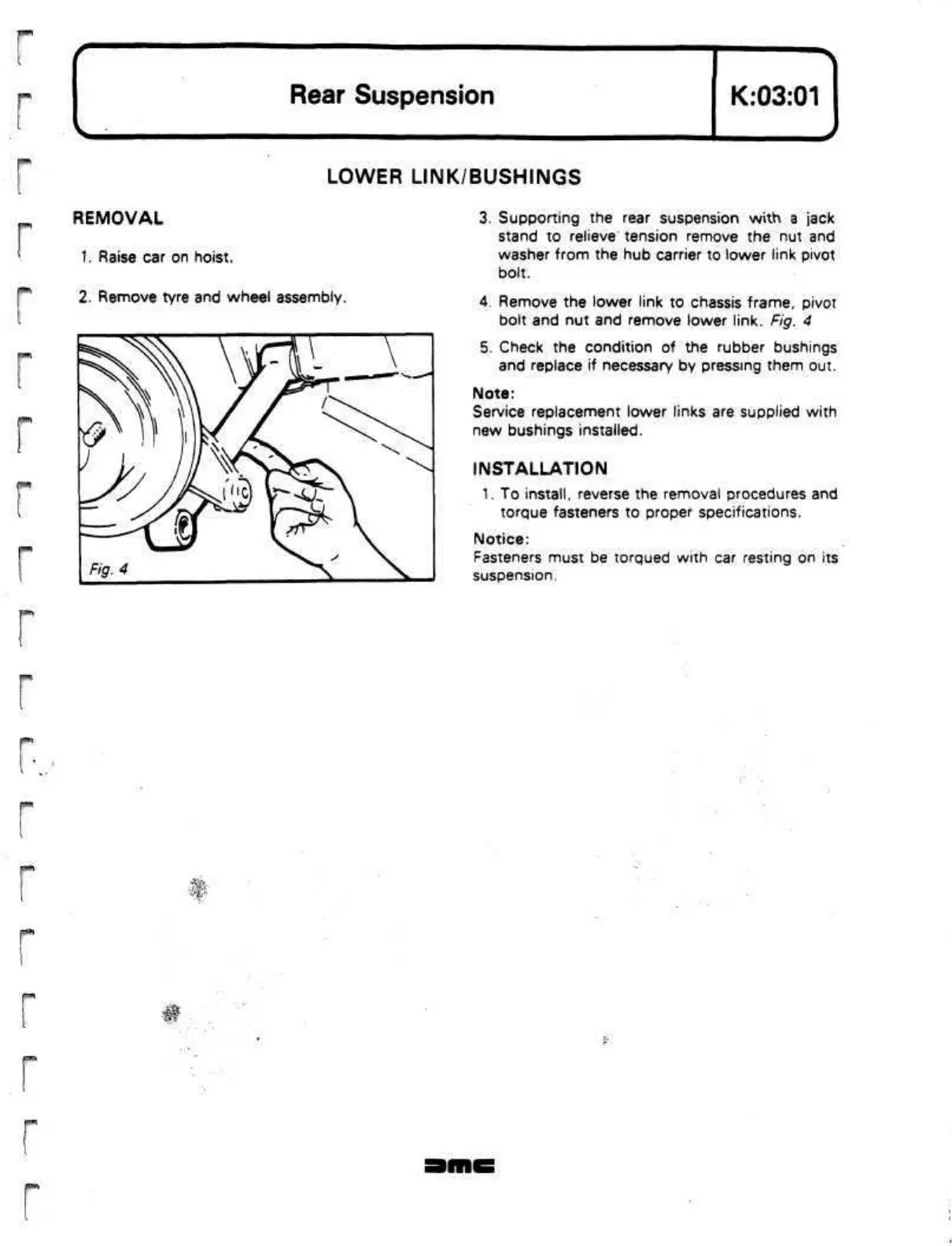

Rear Suspension
K:03:01
LOWER LINK/BUSHINGS
REMOVAL
1.
Raise car on hoist.
2.
Remove tyre and wheel assembly.
3. Supporting the rear suspension with a jack
stand to
relieve
tension remove the nut and
washer from the hub carrier to lower link pivot
bolt.
4.
Remove the lower link to chassis frame, pivot
bolt and nut and remove lower link. Fig. 4
5. Check the condition of the rubber bushings
and replace if necessary by pressing them out.
Note:
Service replacement lower links are supplied with
new bushings installed.
INSTALLATION
1.
To install, reverse the removal procedures and
torque fasteners to proper specifications.
Notice:
Fasteners must be torqued with car resting on its
suspension.
