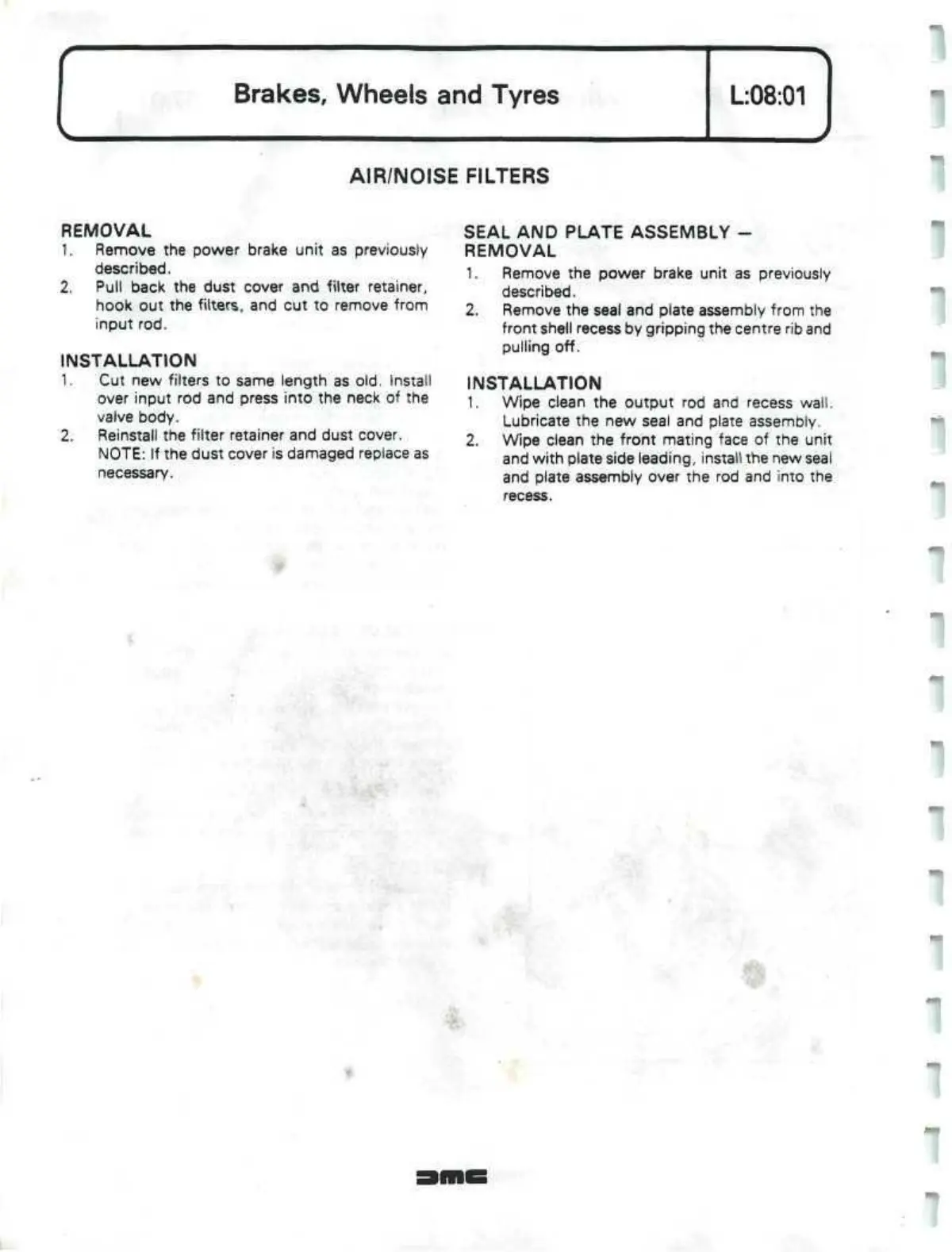

AIR/NOISE FILTERS
REMOVAL
1.
Remove the power brake unit as previously
described.
2.
Pull back the dust cover and filter retainer,
hook out the filters, and cut to remove from
input rod.
INSTALLATION
1.
Cut new filters to same length as old. Install
over input rod and press into the neck of the
valve body.
2.
Reinstall the filter retainer and dust cover.
NOTE:
If
the dust cover is damaged replace as
necessary.
SEAL AND PLATE ASSEMBLY -
REMOVAL
1.
2.
Remove the power brake unit as previously
described.
Remove the seal and plate assembly from the
front shell recess by gripping the centre rib and
pulling off.
INSTALLATION
1.
Wipe clean the output rod and recess
wall.
Lubricate the new seal and plate assembly.
2.
Wipe clean the front mating face of the unit
and with plate side leading, install the new seal
and plate assembly over the rod and into the
recess.
*
'
