Automatic transmission
only,

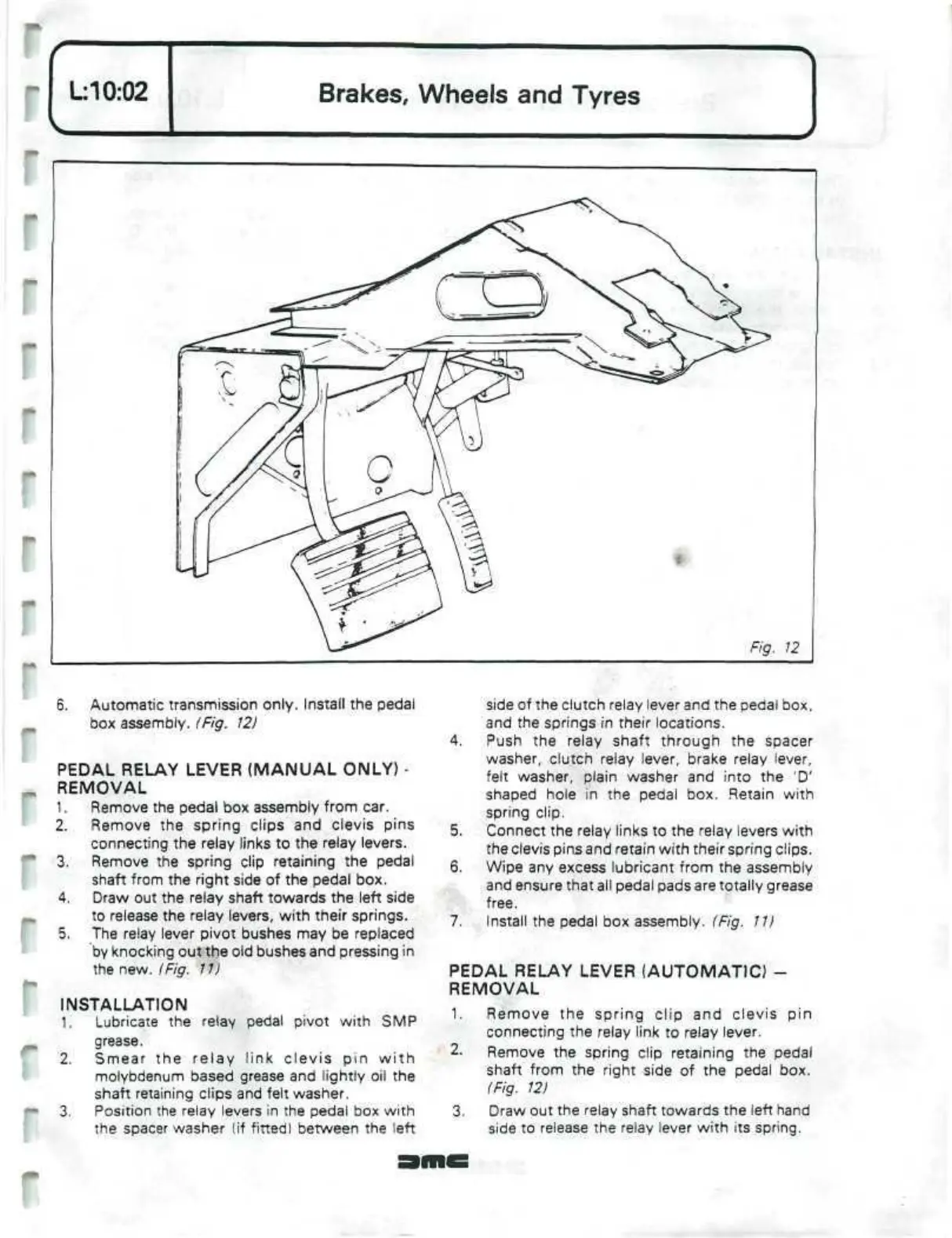

box assembly. (Fig. 12)
Install the pedal
PEDAL RELAY LEVER (MANUAL ONLY)
REMOVAL
1.
2.
4.
Remove the pedal box assembly from car.
Remove the spring clips and clevis pins
connecting the relay links to the relay levers.
Remove the spring clip retaining the pedal
shaft from the right side of the pedal box.
Draw out the relay shaft towards the left side
to release the relay levers, with their springs.
The relay lever pivot bushes may be replaced
by knocking out the old bushes and pressing in
the new. (Fig. 11)
INSTALLATION
1.
Lubricate the relay pedal pivot with
SMP
^
grease.
2.
Smear the relay link clevis pin with
molybdenum based grease and lightly oil the
shaft retaining clips and felt washer.
»•
3. Position the relay levers in the pedal box with
the spacer washer (if fitted) between the left
7.
side of the clutch relay lever and the pedal box,
and the springs in their locations.
Push the relay shaft through the spacer
washer, clutch relay lever, brake relay lever,
felt washer, plain washer and into the 'D'
shaped hole in the pedal box. Retain with
spring clip.
Connect the relay links to the relay levers with
the clevis pins and retain with their spring clips.
Wipe any excess lubricant from the assembly
and ensure that all pedal pads are totally grease
free.
Install the pedal box assembly. (Fig. 11)
PEDAL RELAY LEVER (AUTOMATIC) -
REMOVAL
1
2.
3.
Remove the spring clip and clevis pin
connecting the relay link to relay lever.
Remove the spring clip retaining the pedal
shaft from the right side of the pedal box.
(Fig. 12)
Draw out the relay shaft towards the left hand
side to release the relay lever with its spring.
