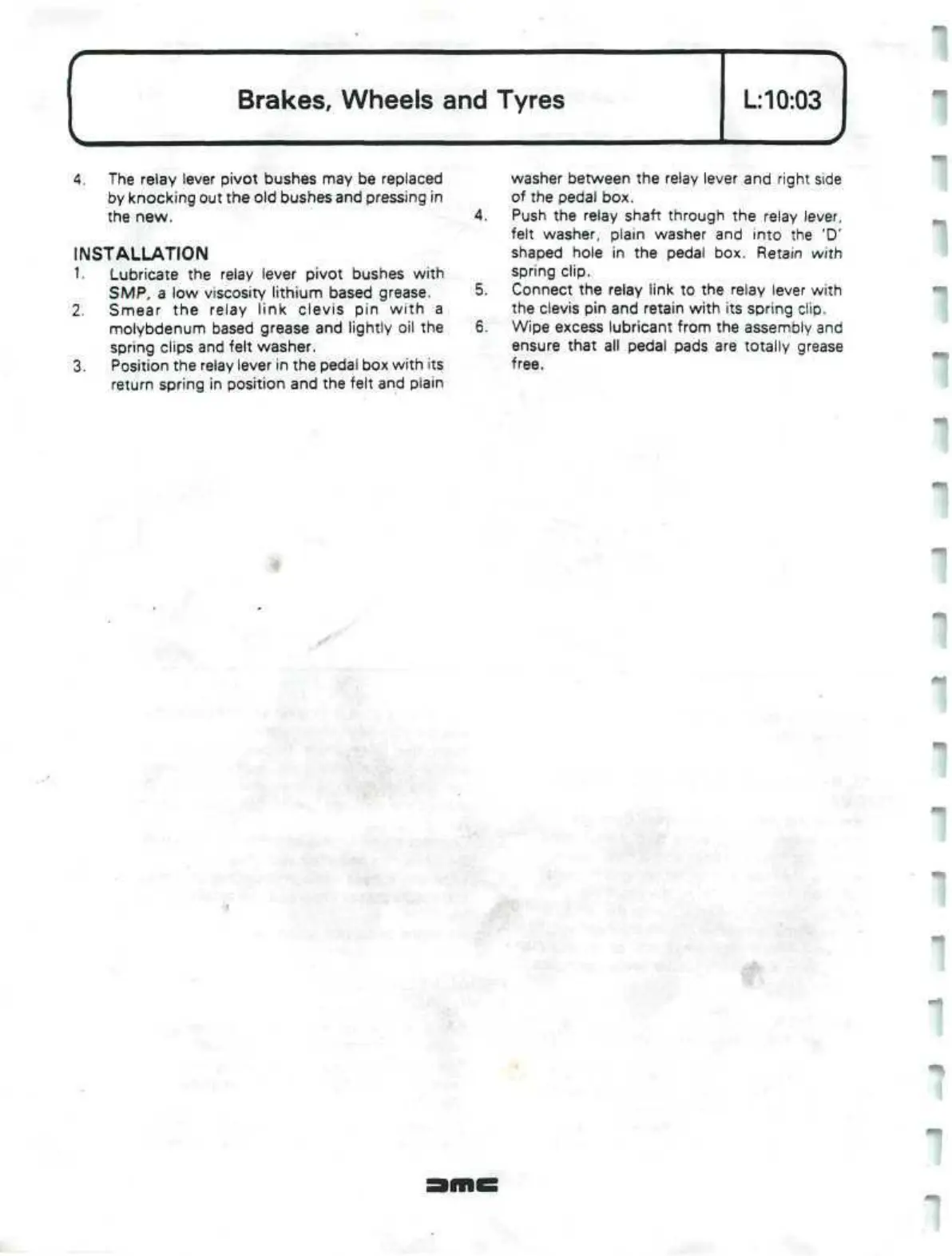

4.
The relay lever pivot bushes may be replaced
by knocking out the old bushes and pressing in
the new.
INSTALLATION
f.
Lubricate the relay lever pivot bushes with
SMP,
a low viscosity lithium based grease.
2.
Smear the relay link clevis pin with a
molybdenum based grease and lightly oil the
spring clips and felt washer.
3. Position the relay lever in the pedal box with its
return spring in position and the felt and plain
washer between the relay lever and right side
of the pedal box.
4.
Push the relay shaft through the relay lever,
felt washer, plain washer and into the
'D'
shaped hole in the pedal box. Retain with
spring clip.
5. Connect the relay link to the relay lever with
the clevis pin and retain with its spring clip.
6. Wipe excess lubricant from the assembly and
ensure that all pedal pads are totally grease
free.
•
