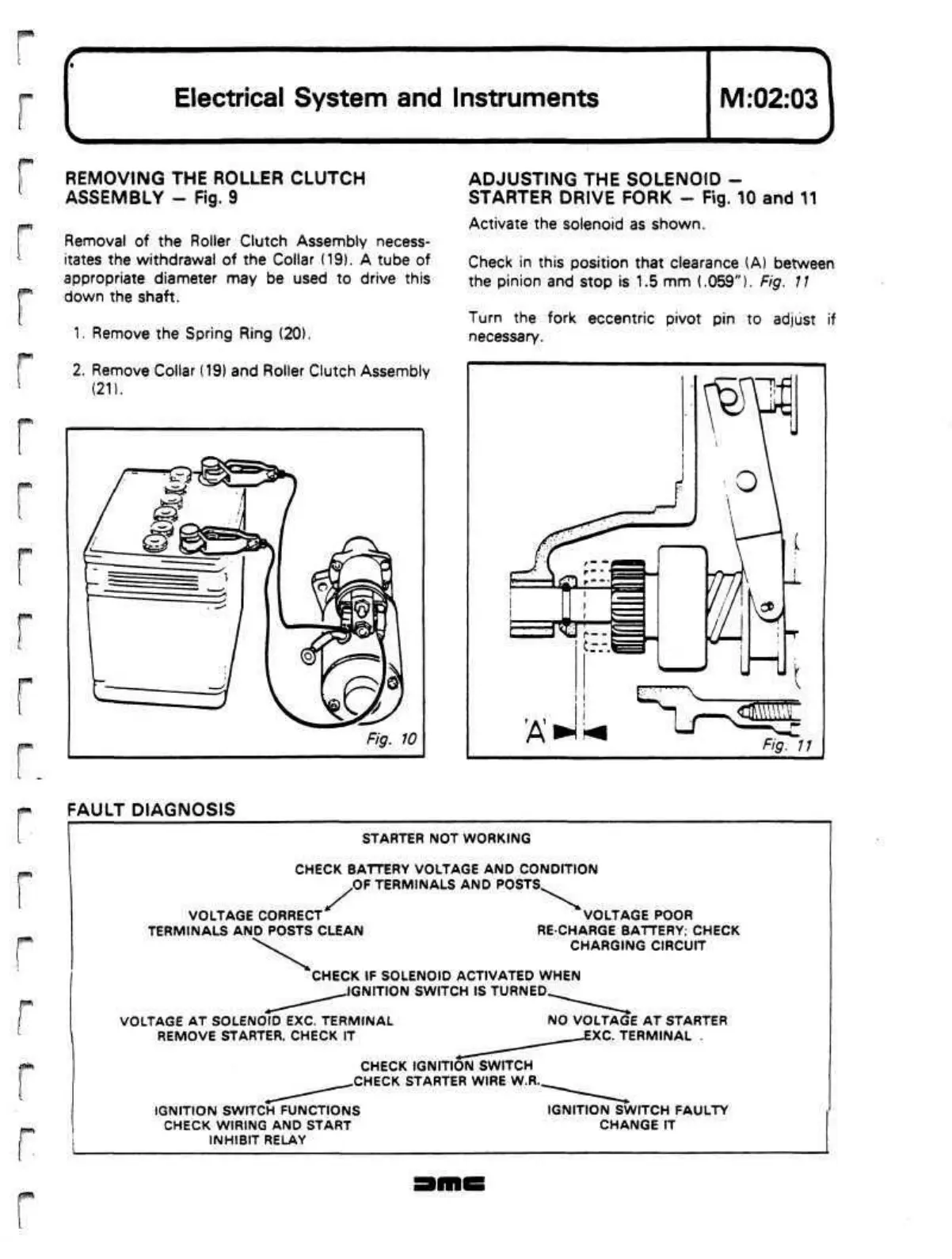

REMOVING THE ROLLER CLUTCH
ASSEMBLY - Fig. 9
Removal of the Roller Clutch Assembly necess-
itates the withdrawal of the Collar (19). A tube of
appropriate diameter may be used to drive this
down the shaft.
1.
Remove the Spring Ring (20).
2.
Remove Collar (19) and Roller Clutch Assembly
(21).
rp9r\
ADJUSTING THE SOLENOID -
STARTER DRIVE FORK - Fig. 10 and 11
Activate the solenoid as shown.
Check in this position that clearance (A) between
the pinion and stop is 1.5 mm (.059"). Fig. n
Turn the fork eccentric pivot pin to adjust if
necessary.
FAULT DIAGNOSIS
STARTER NOT WORKING
CHECK BATTERY VOLTAGE AND CONDITION
OF TERMINALS AND
POSTS
VOLTAGE CORRECT VOLTAGE POOR
TERMINALS AND POSTS CLEAN RECHARGE BATTERY; CHECK
CHARGING CIRCUIT
'CHECK IF SOLENOID ACTIVATED WHEN
.IGNITION
SWITCH IS TURNED.
VOLTAGE AT SOLENOID EXC. TERMINAL
REMOVE STARTER, CHECK IT
NO VOLTAGE AT STARTER
EXC.
TERMINAL .
CHECK IGNITION SWITCH
.CHECK
STARTER WIRE W.R..
IGNITION SWITCH FUNCTIONS
CHECK WIRING AND START
INHIBIT RELAY
IGNITION SWITCH FAULTY
CHANGE IT
