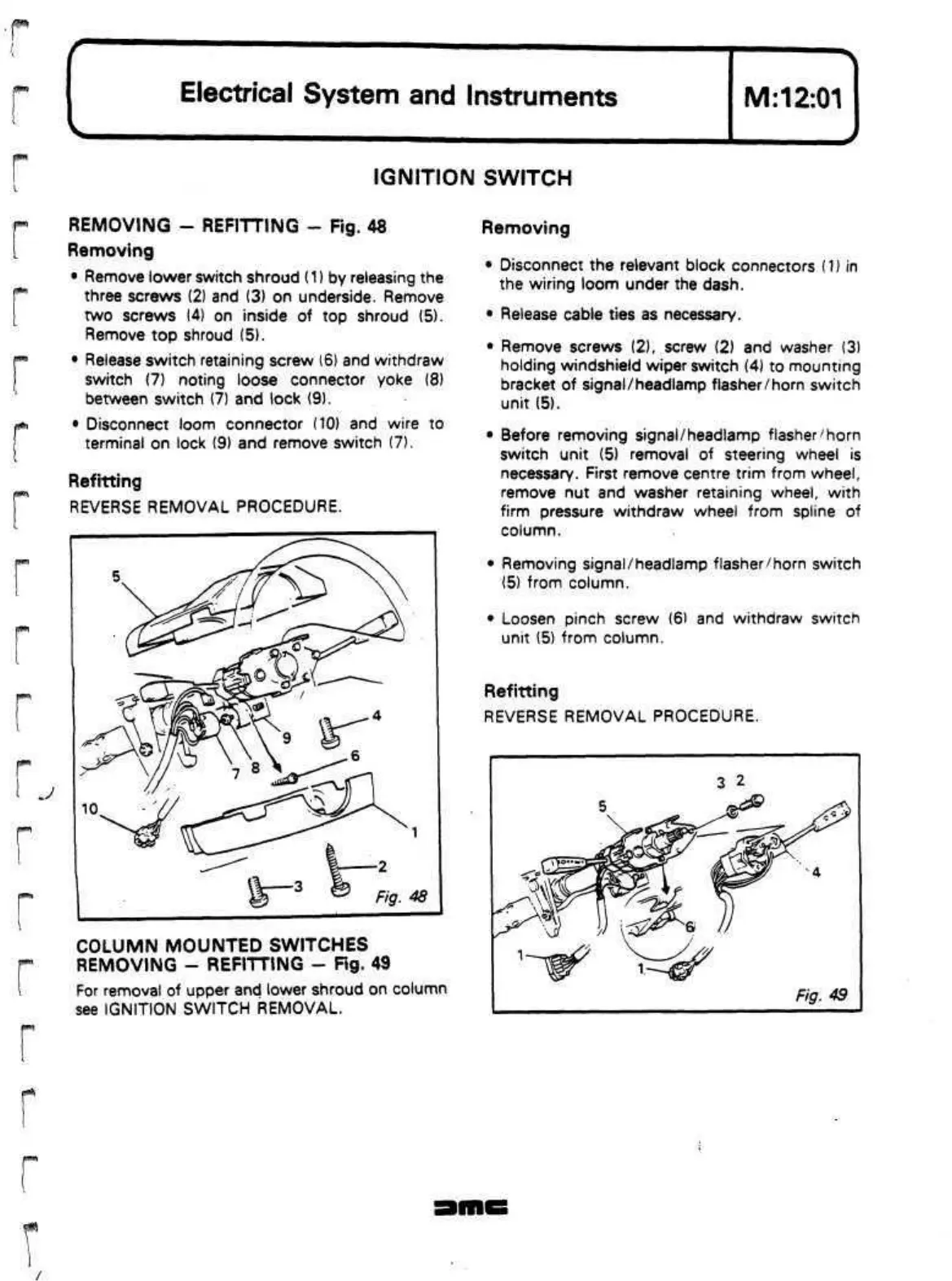

Electrical System and Instruments
M:12:01
IGNITION SWITCH
J
REMOVING - REFITTING - Fig. 48
Removing
• Remove lower switch shroud
(1)
by releasing the
three screws (2) and (3) on underside. Remove
two screws (4) on inside of top shroud (5).
Remove top shroud (5).
• Release switch retaining screw (6) and withdraw
switch (7) noting loose connector yoke (8)
between switch (7) and lock (9).
• Disconnect loom connector (10) and wire to
terminal on lock (9) and remove switch (7).
Refitting
REVERSE REMOVAL PROCEDURE.
COLUMN MOUNTED SWITCHES
REMOVING - REFITTING
-
Fig.
49
For removal of upper and lower shroud on column
see IGNITION SWITCH REMOVAL.
Removing
• Disconnect the relevant block connectors (1) in
the wiring loom under the dash.
• Release cable ties as necessary.
• Remove screws (2), screw
(2)
and washer (3)
holding windshield wiper switch (4) to mounting
bracket of
signal/headlamp
flasher/horn switch
unit (5).
• Before removing
signal/headlamp flasher 'horn
switch unit (5) removal of steering wheel is
necessary. First remove centre trim from wheel,
remove nut and washer retaining wheel, with
firm pressure withdraw wheel from spline of
column.
• Removing
signal/headlamp flasher/horn
switch
(5) from column.
• Loosen pinch screw (6) and withdraw switch
unit (5) from column.
Refitting
REVERSE REMOVAL PROCEDURE.
