M:11:04
Electrical System and Instruments
]
Refitting
REVERSE REMOVAL PROCEDURE.
ENGINE COMPARTMENT LJGHT

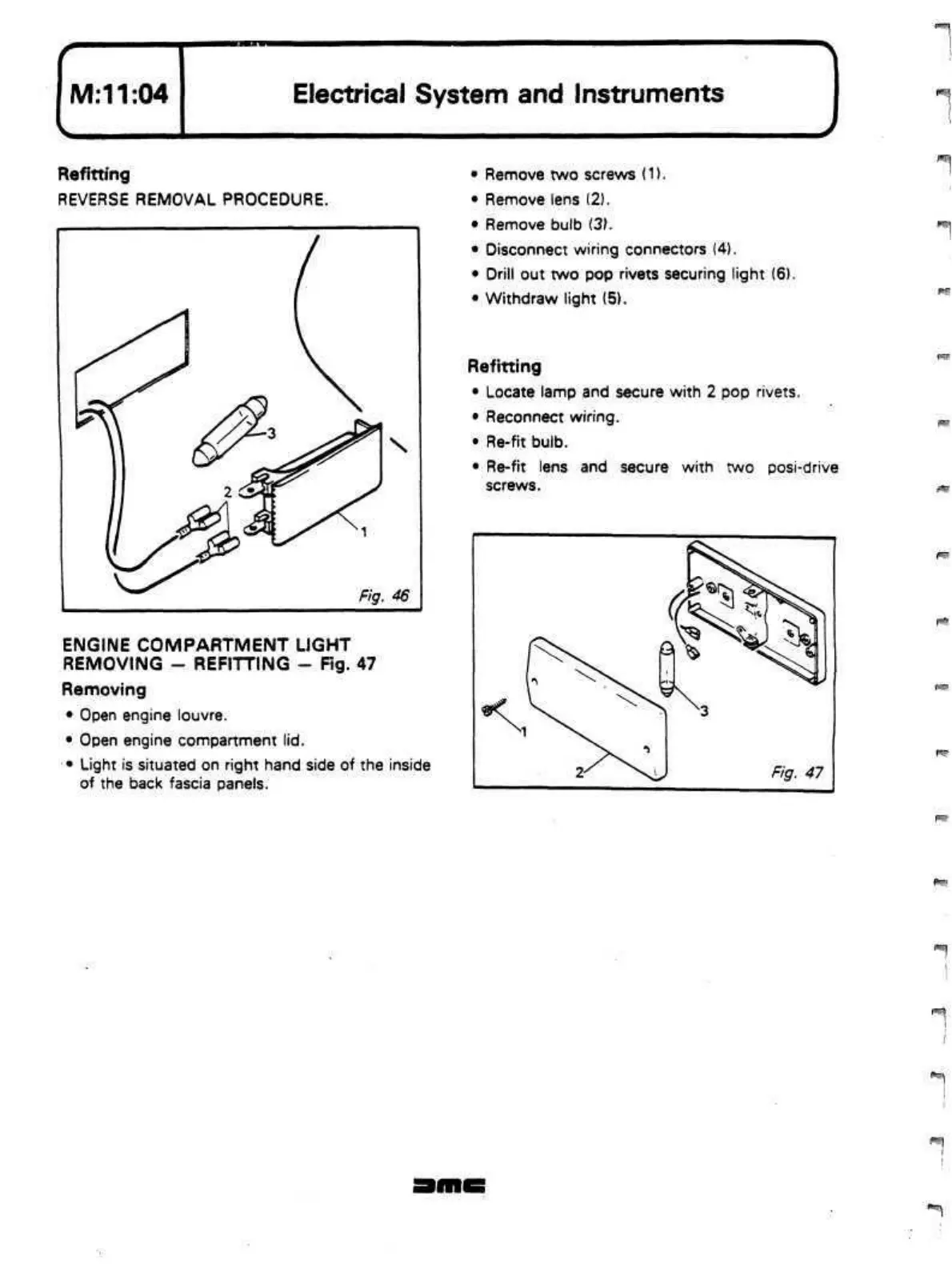

REMOVING - REFITTING - Fig. 47
Removing
• Open engine louvre.
• Open engine compartment lid.
• Light is situated on right hand side of the inside
of the back fascia panels.
• Remove two screws
(1).
• Remove lens (2).
• Remove bulb (3).
• Disconnect wiring connectors (4).
• Drill out two pop rivets securing light (6).
• Withdraw light (5).
Refitting
• Locate lamp and secure with 2 pop rivets.
• Reconnect wiring.
• Re-fit bulb.
•
Re-fit
lens and secure with two posi-drive
screws.
