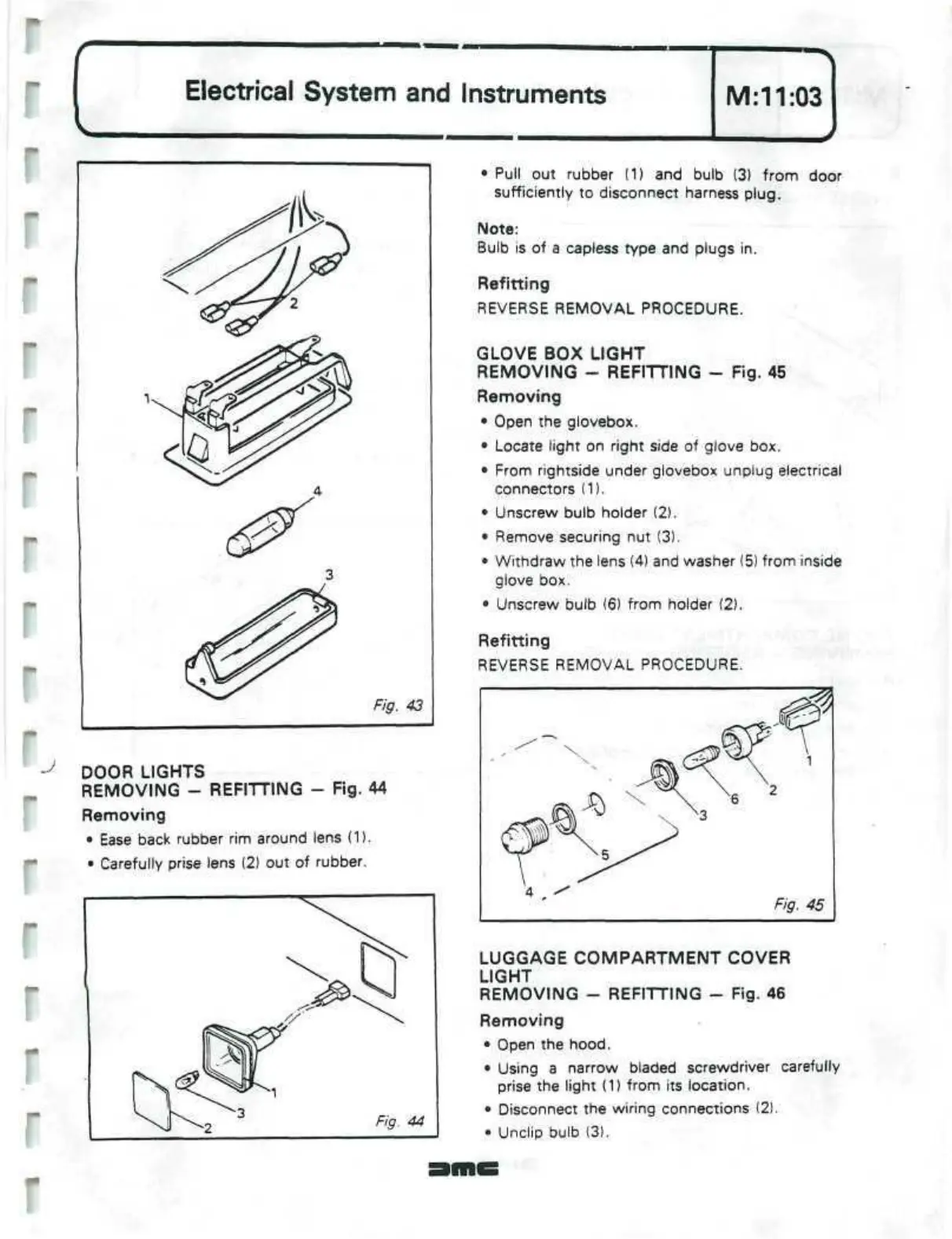

Electrical System and Instruments
Fig. 43
J
DOOR LIGHTS
REMOVING - REFITTING - Fig. 44
Removing
• Ease back rubber rim around lens (1).
• Carefully prise lens (2) out of rubber.
M:11:03
• Pull out rubber (1) and bulb (3) from door
sufficiently to disconnect harness
plug.
Note:
Bulb is of a capless type and plugs in.
Refitting
REVERSE REMOVAL PROCEDURE.
GLOVE BOX LIGHT
REMOVING - REFITTING
-
Fig. 45
Removing
• Open the glovebox.
• Locate light on right side of glove box.
• From rightside under glovebox unplug electrical
connectors (1).
• Unscrew bulb holder (2).
• Remove securing nut (3).
• Withdraw the lens (4) and washer (5) from inside
glove box.
• Unscrew bulb (6) from holder (2).
Refitting
REVERSE REMOVAL PROCEDURE.
LUGGAGE COMPARTMENT COVER
LIGHT
REMOVING - REFITTING - Fig. 46
Removing
• Open the hood.
• Using a narrow bladed screwdriver carefully
prise the light (1) from its location.
• Disconnect the wiring connections (2).
• Unclip bulb (3).
