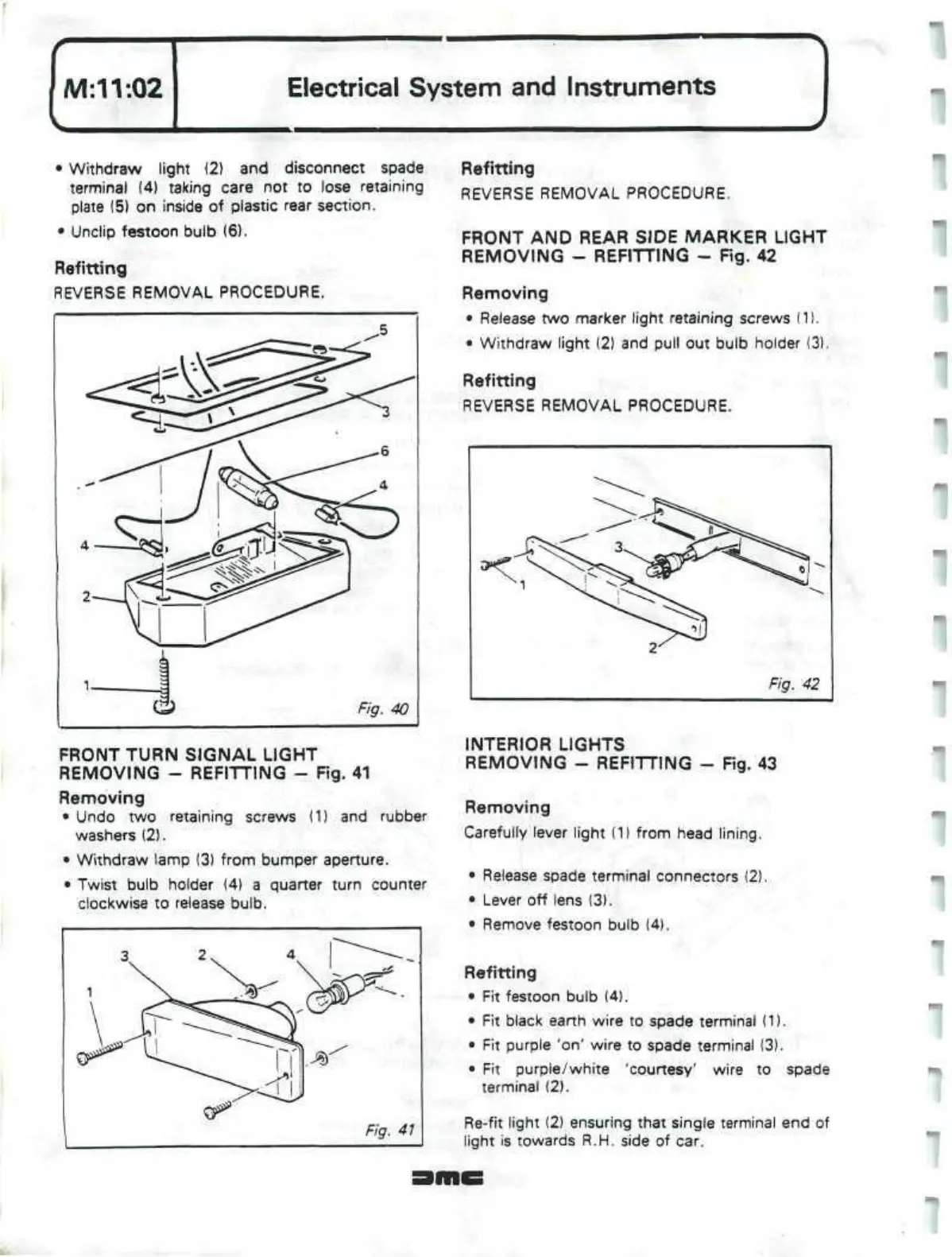

M:11:02
Electrical System and Instruments
• Withdraw light (2) and disconnect spade
terminal (4) taking care not to lose retaining
plate (5) on inside of plastic rear section.
• Unclip festoon bulb (6).
Refitting
REVERSE REMOVAL PROCEDURE.
-5i
^h3p
Fig. 40
FRONT TURN SIGNAL LIGHT
REMOVING - REFITTING - Fig. 41
Removing
• Undo two retaining screws (1) and rubber
washers (2).
• Withdraw lamp (3) from bumper aperture.
• Twist bulb holder (4) a quarter turn counter
clockwise to release bulb.
Refitting
REVERSE REMOVAL PROCEDURE.
FRONT AND REAR SIDE MARKER LIGHT
REMOVING - REFITTING
-
Fig. 42
Removing
• Release two marker light retaining screws (1).
• Withdraw light (2) and pull out bulb holder (3).
Refitting
REVERSE REMOVAL PROCEDURE.
INTERIOR LIGHTS
REMOVING - REFITTING - Fig. 43
Removing
Carefully lever light (1) from head lining.
• Release spade terminal connectors (2).
• Lever off lens (3).
• Remove festoon bulb (4).
Refitting
• Fit festoon bulb (4).
• Fit black earth wire to spade terminal (1).
• Fit purple 'on' wire to spade terminal (3).
• Fit purple/white 'courtesy' wire to spade
terminal (2).
Re-fit light (2) ensuring that single terminal end of
light is towards R.H. side of car.
