Electrical System and Instruments
RADIO
REMOVAL
-
REFITTING -

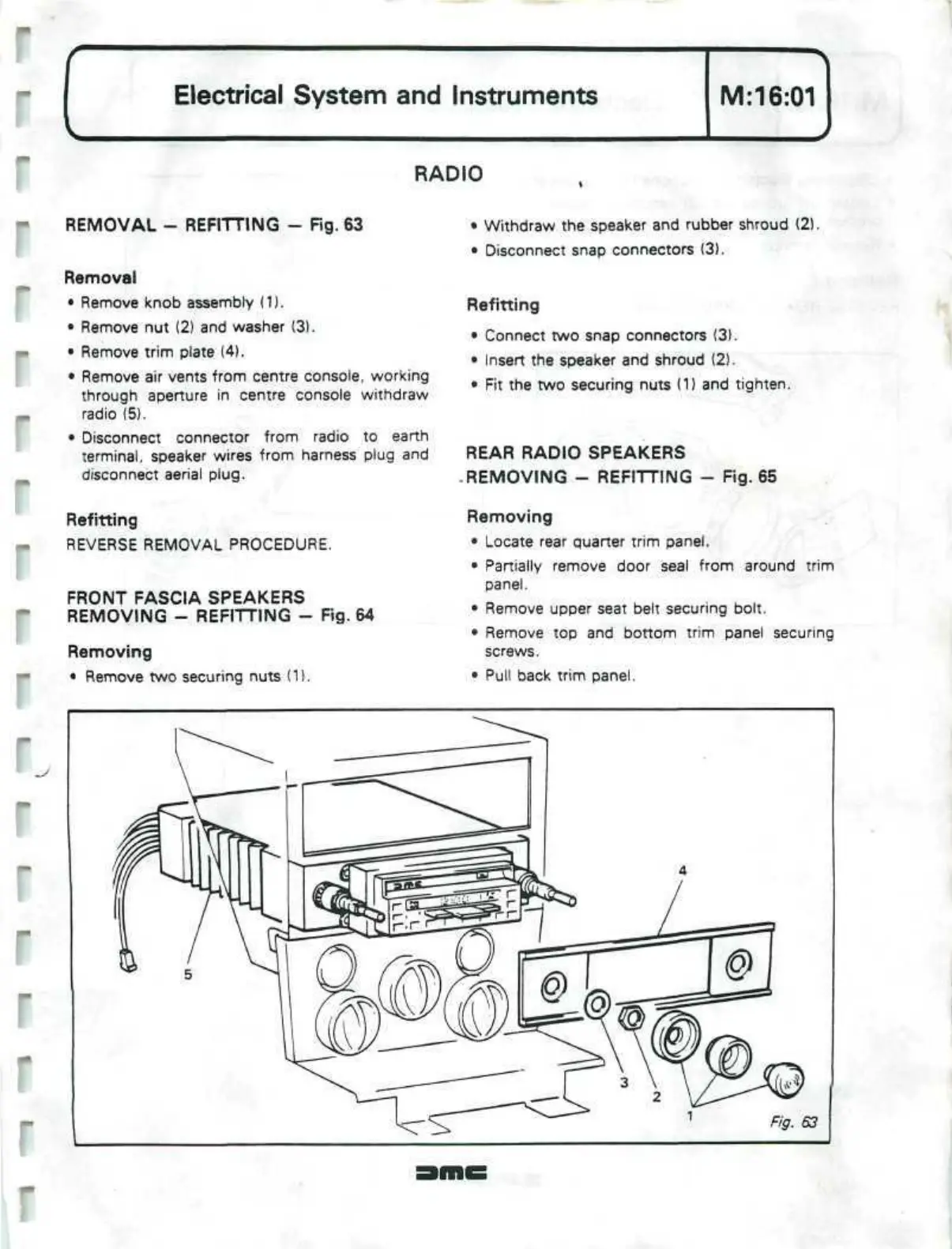

Fig.
63
Removal
• Remove knob assembly (1).
• Remove nut (2) and washer (3).
• Remove trim plate (4).
• Remove air vents from centre console, working
through aperture in centre console withdraw
radio (5).
• Disconnect connector from radio to earth
terminal,
speaker wires from harness plug and
disconnect aerial
plug.
Refitting
REVERSE REMOVAL PROCEDURE.
FRONT FASCIA SPEAKERS
REMOVING
-
REFITTING - Fig. 64
Removing
• Remove two securing nuts (1!
• Withdraw the speaker and rubber shroud (2).
• Disconnect snap connectors (3).
Refitting
• Connect two snap connectors (3).
• Insert the speaker and shroud (2).
• Fit the two securing nuts (1) and tighten.
REAR RADIO SPEAKERS
REMOVING
-
REFITTING - Fig. 65
Removing
• Locate rear quarter trim panel.
• Partially remove door seal from around trim
panel.
•
Remove upper seat belt securing bolt.
• Remove top and bottom trim panel securing
screws.
• Pull back trim panel.
