Electrical System and Instruments
M:17:01
DOOR ELECTRICS
DOOR ELECTRICS
• Pull off trim panel.
• Remove armrest fixing screw and remove
armrest.
• Remove door handle and switch support
bracket.
• Remove polythene post
seal.
DOOR LOCK SOLENOID

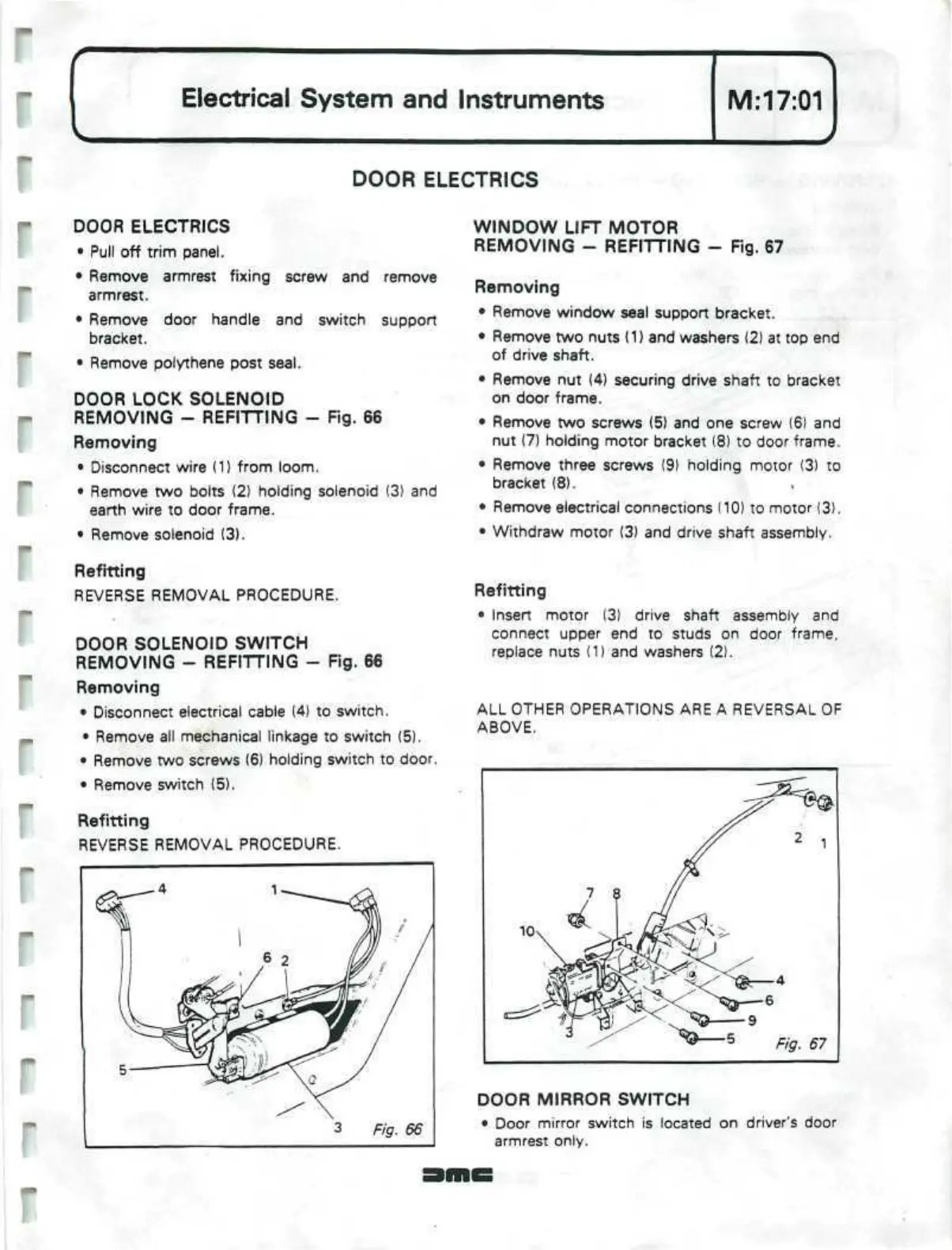

REMOVING - REFITTING - Fig. 66
Removing
• Disconnect wire (1) from loom.
• Remove two bolts (2) holding solenoid (3) and
earth wire to door frame.
• Remove solenoid (3).
Refitting
REVERSE REMOVAL PROCEDURE.
DOOR SOLENOID SWITCH
REMOVING - REFITTING - Fig. 66
Removing
• Disconnect electrical cable (4) to switch.
• Remove all mechanical linkage to switch (5).
• Remove two screws (6) holding switch to door.
• Remove switch (5).
Refitting
REVERSE REMOVAL PROCEDURE.
WINDOW LIFT MOTOR
REMOVING - REFITTING - Fig. 67
Removing
• Remove window seal support bracket.
• Remove two nuts (1) and washers (2) at top end
of drive shaft.
• Remove nut (4) securing drive shaft to bracket
on door frame.
• Remove two screws (5) and one screw (6) and
nut (7) holding motor bracket (8) to door frame.
• Remove three screws (9) holding motor (3) to
bracket (8).
• Remove electrical connections (10) to motor (3).
• Withdraw motor (3) and drive shaft assembly.
Refitting
• Insert motor (3) drive shaft assembly and
connect upper end to studs on door frame,
replace nuts (1) and washers (2).
ALL OTHER OPERATIONS ARE A REVERSAL OF
ABOVE.
DOOR MIRROR SWITCH
• Door mirror switch is located on driver's door
armrest only.
