Delorean DMC - Page 324

M:17:02
Electrical System and Instruments

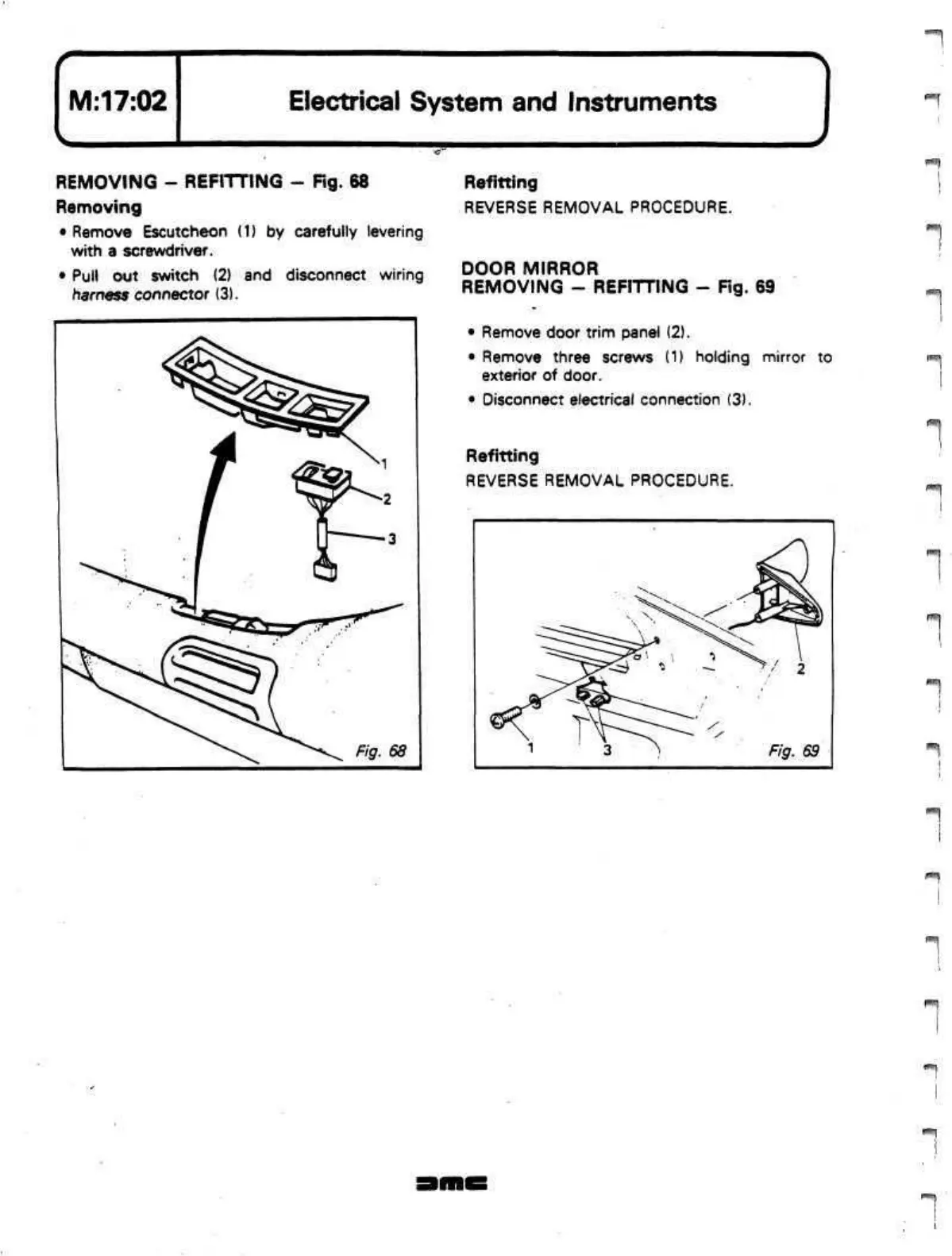

REMOVING - REFITTING - Fig. 68
Removing
• Remove Escutcheon (1) by carefully levering
with a screwdriver.
• Pull out switch (2) and disconnect wiring
harness connector (3).
Refitting
REVERSE REMOVAL PROCEDURE.
DOOR MIRROR
REMOVING - REFITTING - Fig. 69
• Remove door trim panel (2).
• Remove three screws (1) holding mirror to
exterior of door.
• Disconnect electrical connection (3).
Refitting
REVERSE REMOVAL PROCEDURE.
