Electrical System and Instruments
M
: 18:01
ELECTRICAL WIRING DIAGRAMS
B -
G -
K -
LG -
S;
CABLE COLOUR CODE
BLACK
GREEN
PINK
LIGHT GREEN
BROWN
ORANGE
P - PURPLE
R - RED
S - SLATE
U - BLUE
W - WHITE
Y - YELLOW

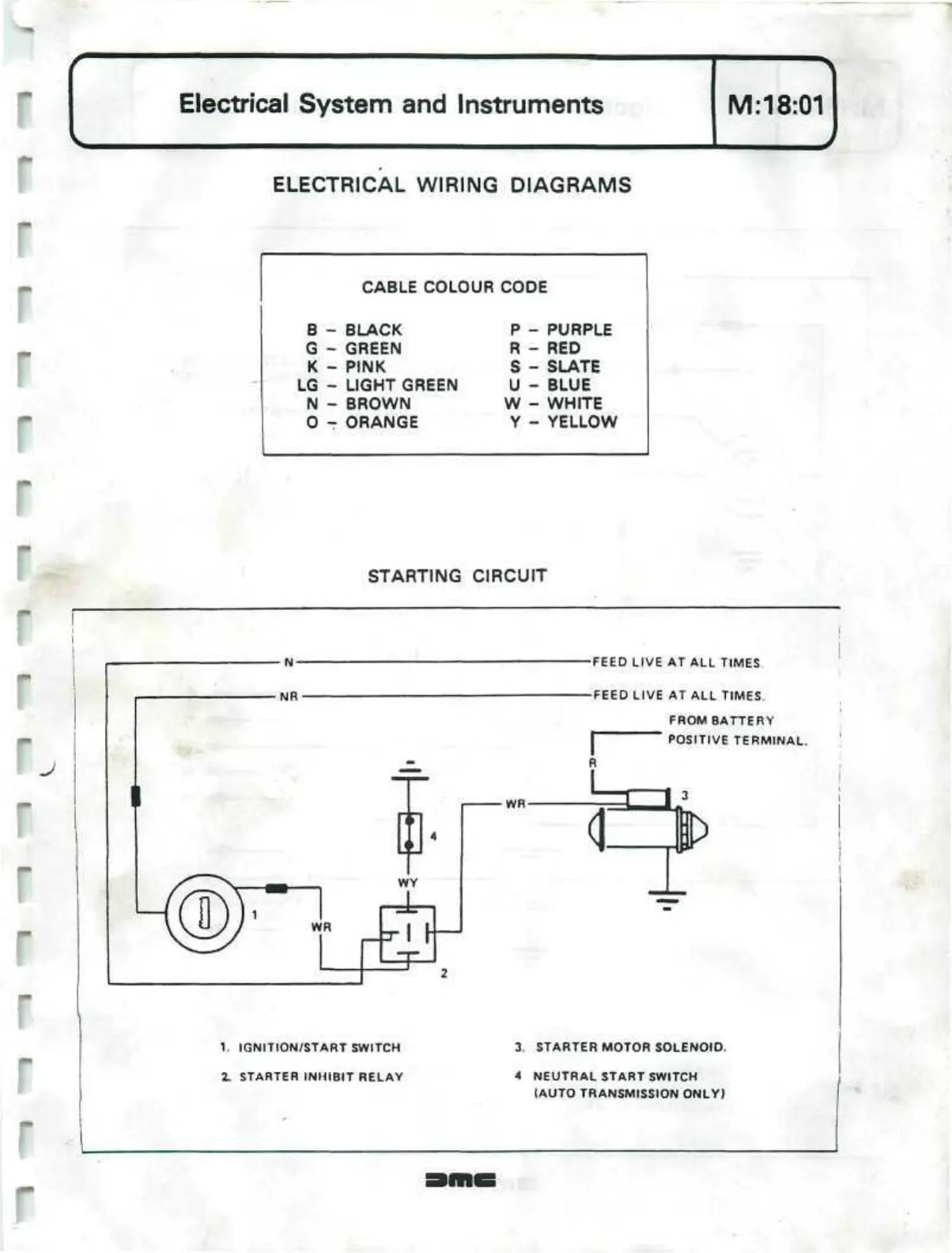

STARTING CIRCUIT
J
FEED LIVE AT ALL TIMES
FEED LIVE AT ALL TIMES.
FROM BATTERY
POSITIVE TERMINAL.
1. IGNITION/START SWITCH
2. STARTER INHIBIT RELAY
3. STARTER MOTOR SOLENOID.
4 NEUTRAL START SWITCH
(AUTO TRANSMISSION ONLY)
r
