Delorean DMC - Page 326

M:18:02
Electrical System and Instruments

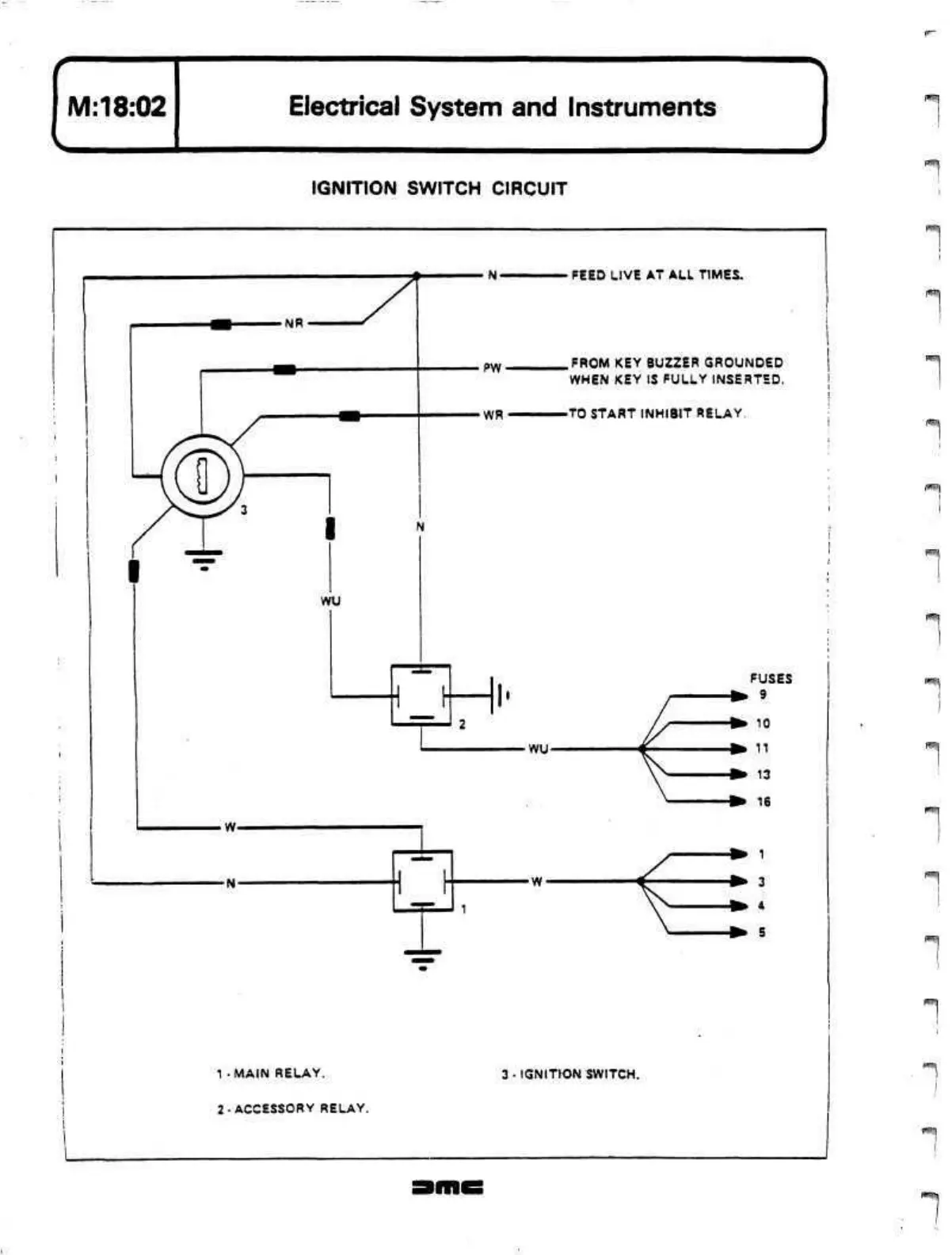

IGNITION SWITCH CIRCUIT
FEED LIVE AT ALL TIMES.
PROM KEY BUZZER GROUNDED
WHEN KEY IS FULLY INSERTED.
TO START INHI8IT RELAY.
FUSES
. 9
• 10
. 11
• 13
16
• 1
• 3
> 4
• S
1 -MAIN RELAY.
2-ACCESSORY RELAY.
3 • IGNITION SWITCH.
