Electrical System and Instruments
\
M:18:07
*

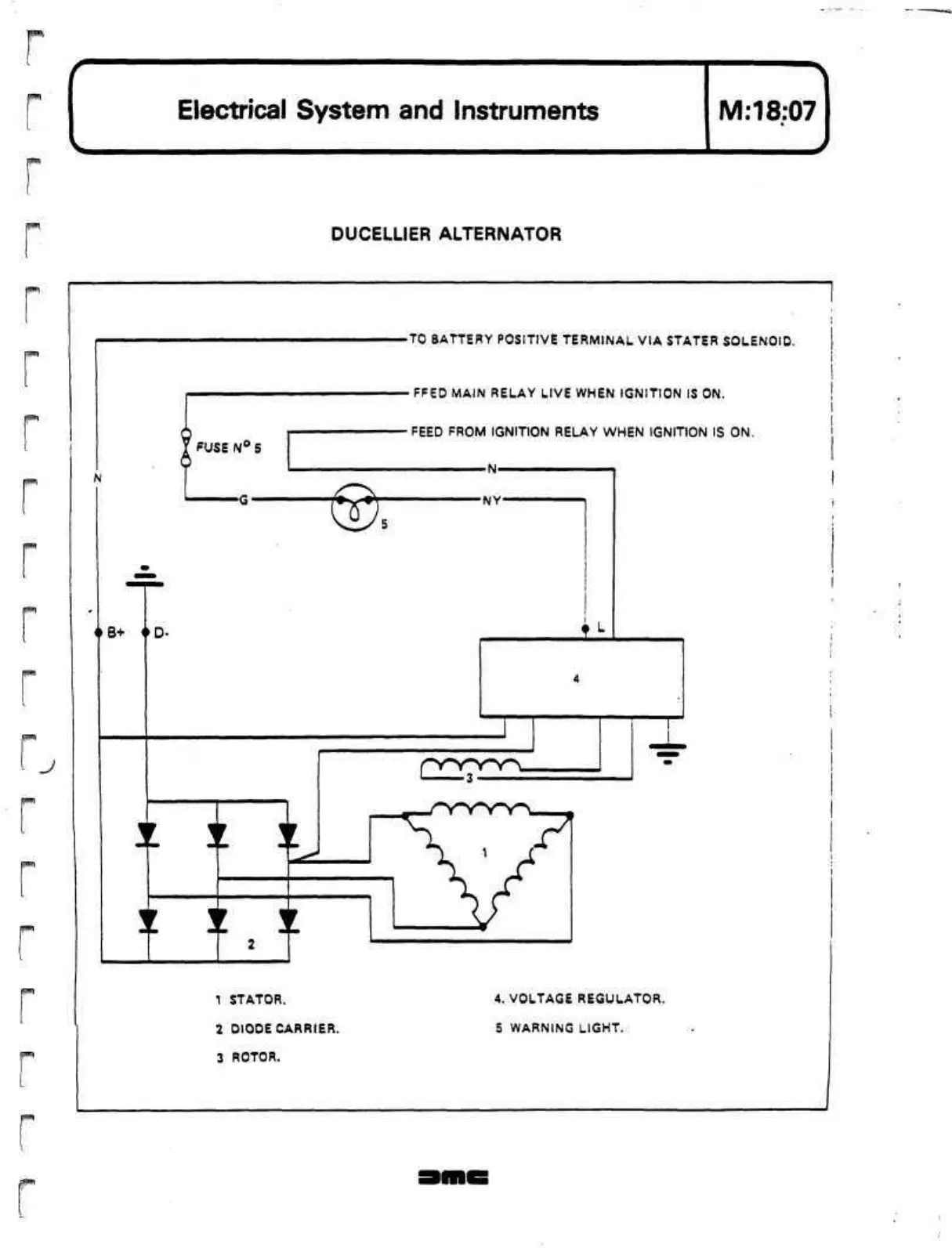

DUCELUER ALTERNATOR
J
IW'I
FUSE N° 5
•TO BATTERY POSITIVE TERMINAL VIA STATER SOLENOID.
- FFED MAIN RELAY LIVE WHEN IGNITION IS ON.
•FEED FROM IGNITION RELAY WHEN IGNITION IS ON.
N-
1 STATOR.
2 DIOOE CARRIER.
3 ROTOR.
4. VOLTAGE REGULATOR.
5 WARNING LIGHT.
