M:18:08
Electrical System and Instruments

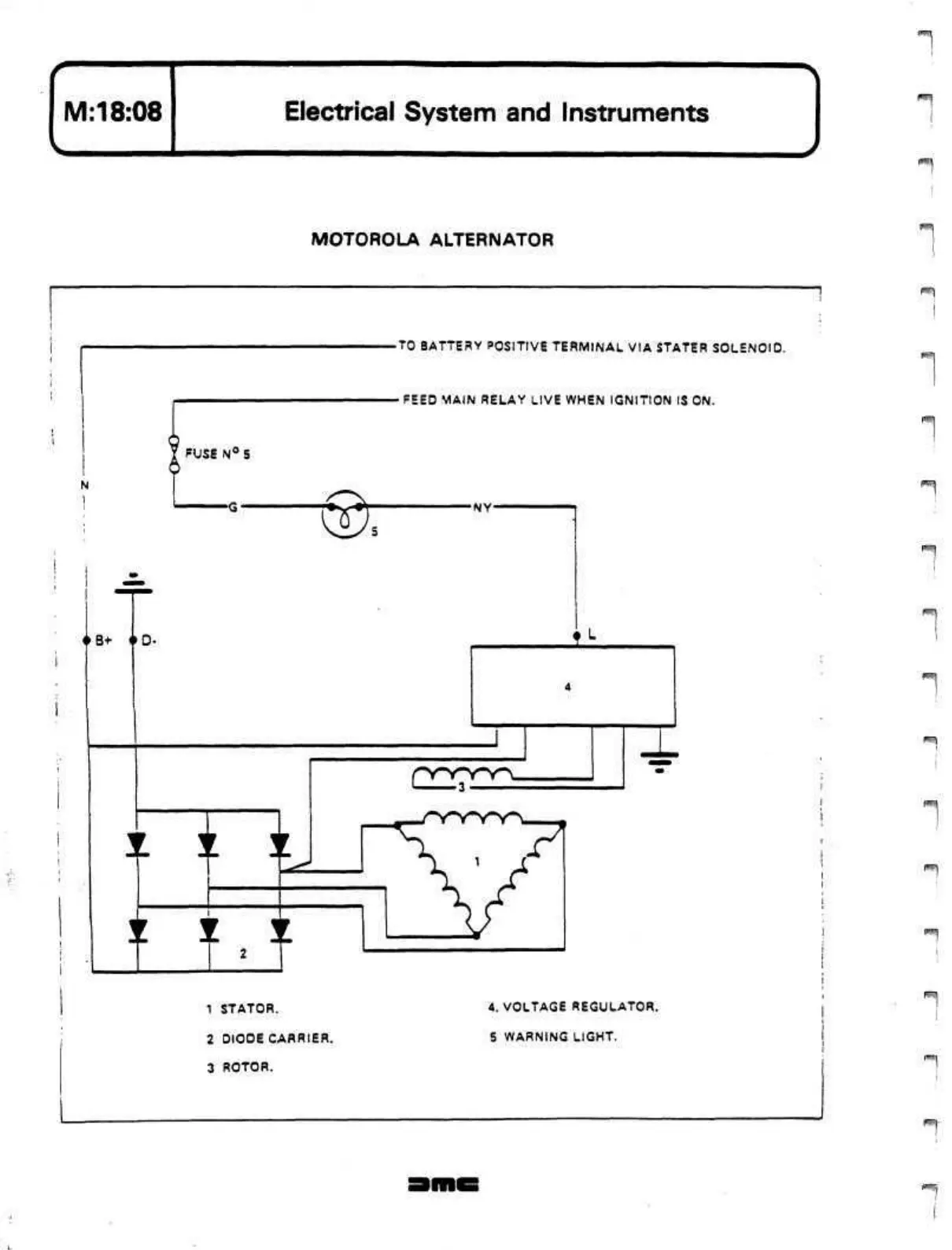

MOTOROLA ALTERNATOR
TO BATTERY POSITIVE TERMINAL VIA STATER SOLENOID.
FEED MAIN RELAY LIVE WHEN IGNITION IS ON.
1 STATOR.
2 DIOOE CARRIER.
3 ROTOR.
4. VOLTAGE REGULATOR.
5 WARNING LIGHT.
