Heating and Air Conditioning
N:01:05
L

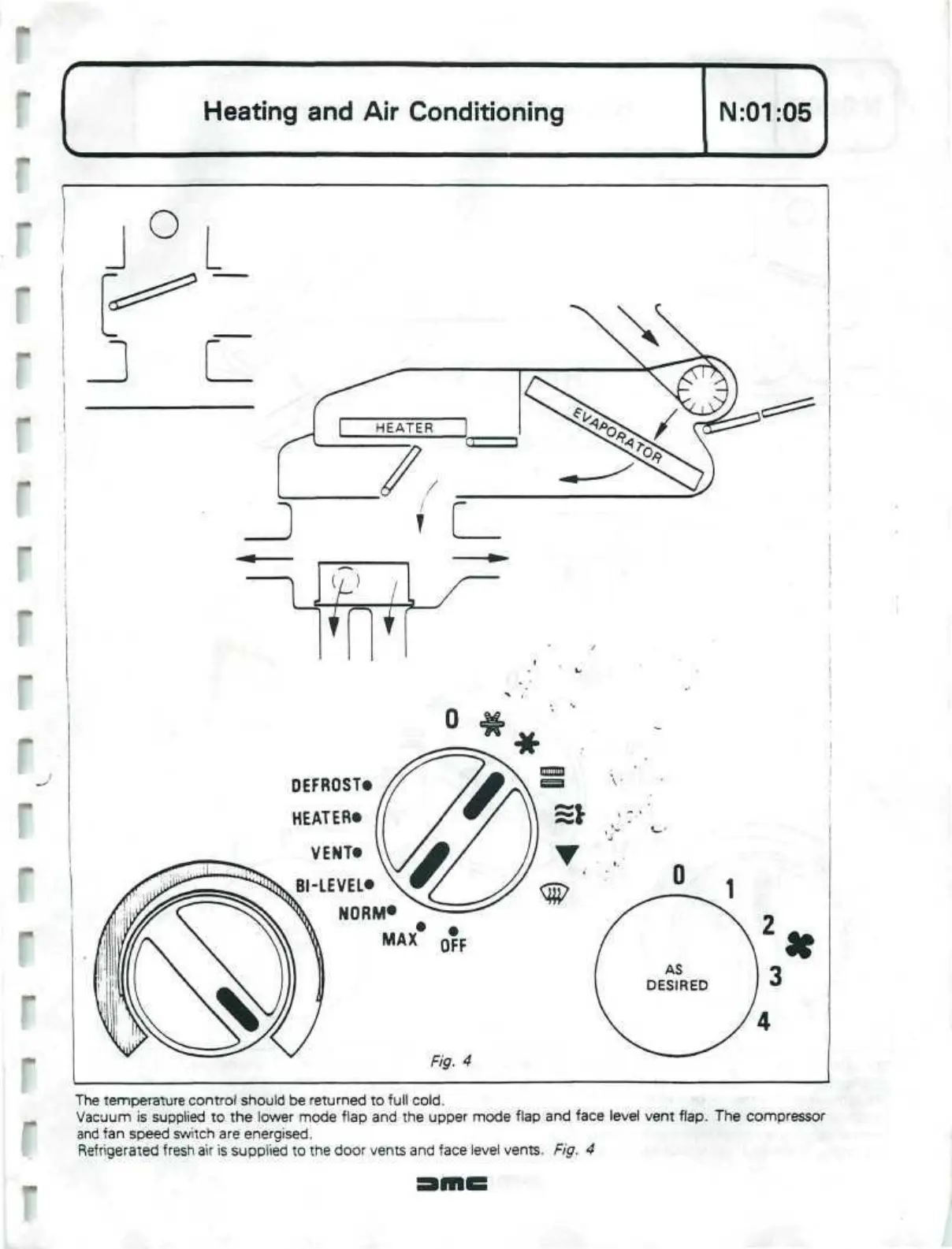

Fig. 4
The temperature control should be returned to full cold.
Vacuum is supplied to the lower mode flap and the upper mode flap and face level vent flap. The compressor
and fan speed switch are energised.
Refrigerated fresh air is supplied to the door vents and face level vents. Fig. 4
