Heating and Air Conditioning
fH:i
DEFROST*
HEATER*
VENT*
BI-LEVEL*
NORM*

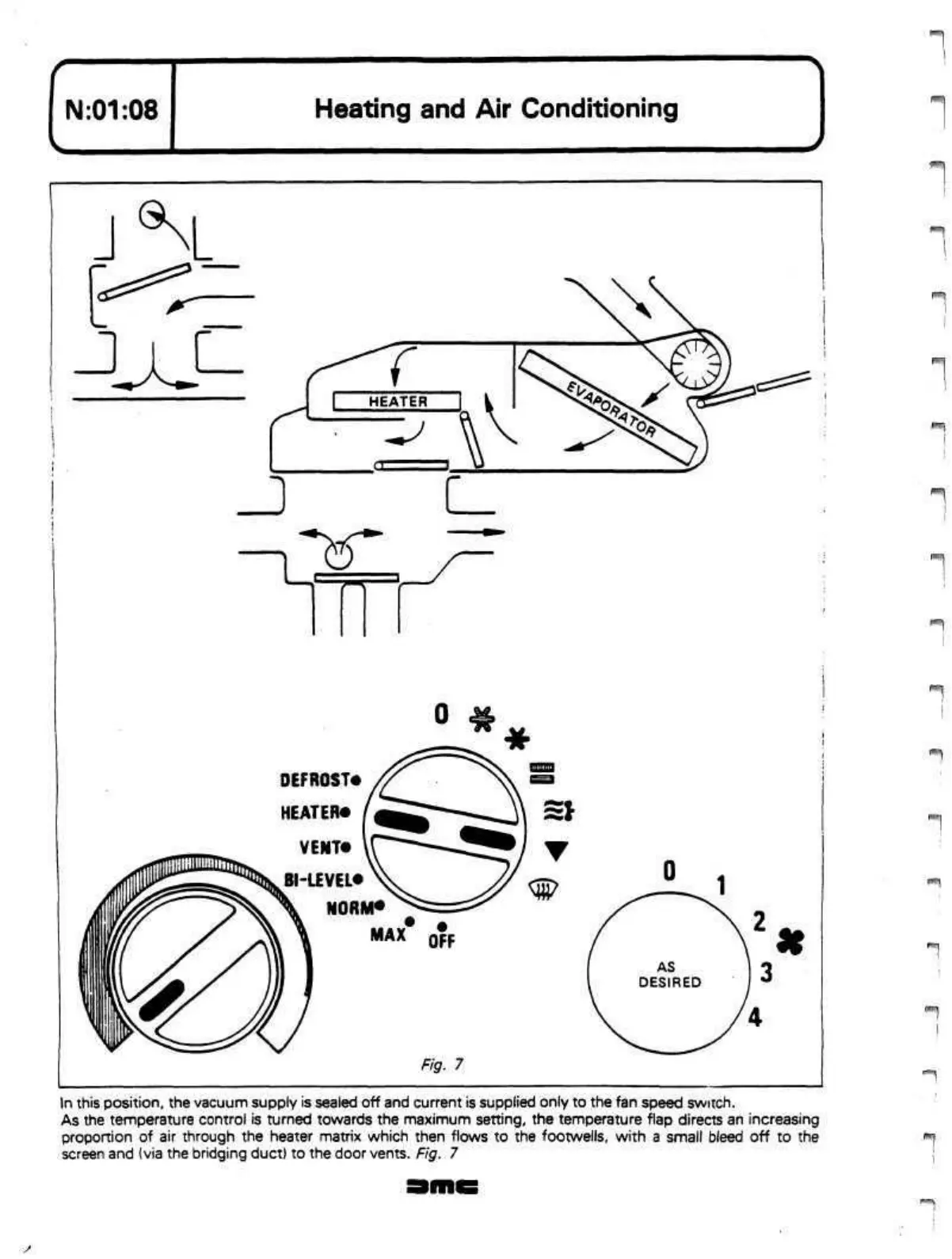

Fig. 7
HM
In this position, the vacuum supply is sealed off and current is supplied only to the fan speed switch.
As the temperature control is turned towards the maximum setting, the temperature flap directs an increasing
proportion of air through the heater matrix which then flows to the footwells, with a small bleed off to the
screen and (via the bridging duct) to the door
vents.
Fig. 7
