Heating and Air Conditioning
(
r
N.01.07
p-^H
DEFROST*
HEATER*
VENT*
BI-LEVEL*
NORM*
MAX
OFF

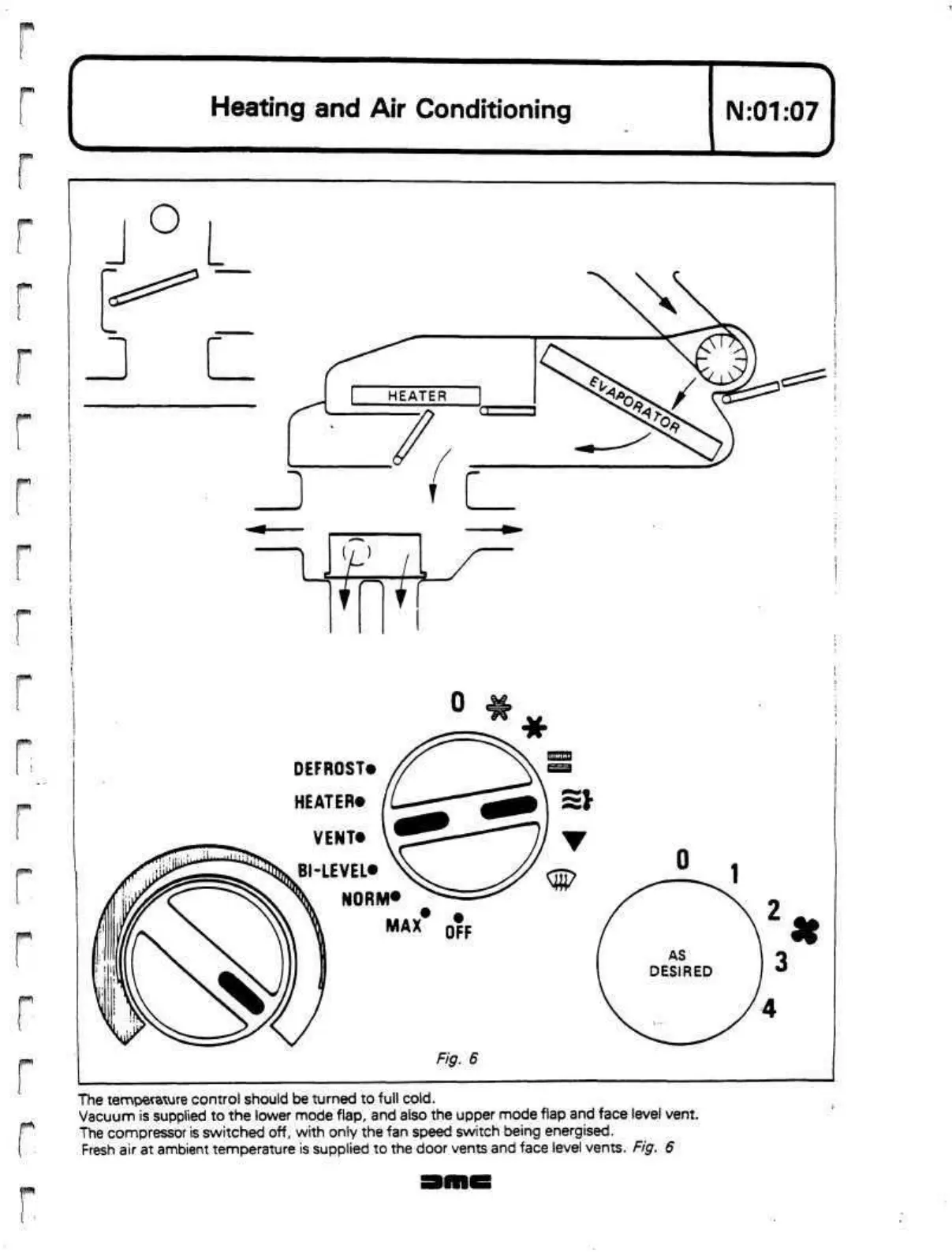

Fig. 6
The temperature control should be turned to full
cold.
Vacuum is supplied to the lower mode flap, and also the upper mode flap and face level vent.
The compressor
is
switched off, with only the fan speed switch being energised.
Fresh air at ambient temperature is supplied to the door vents and face level vents. Fig. 6
