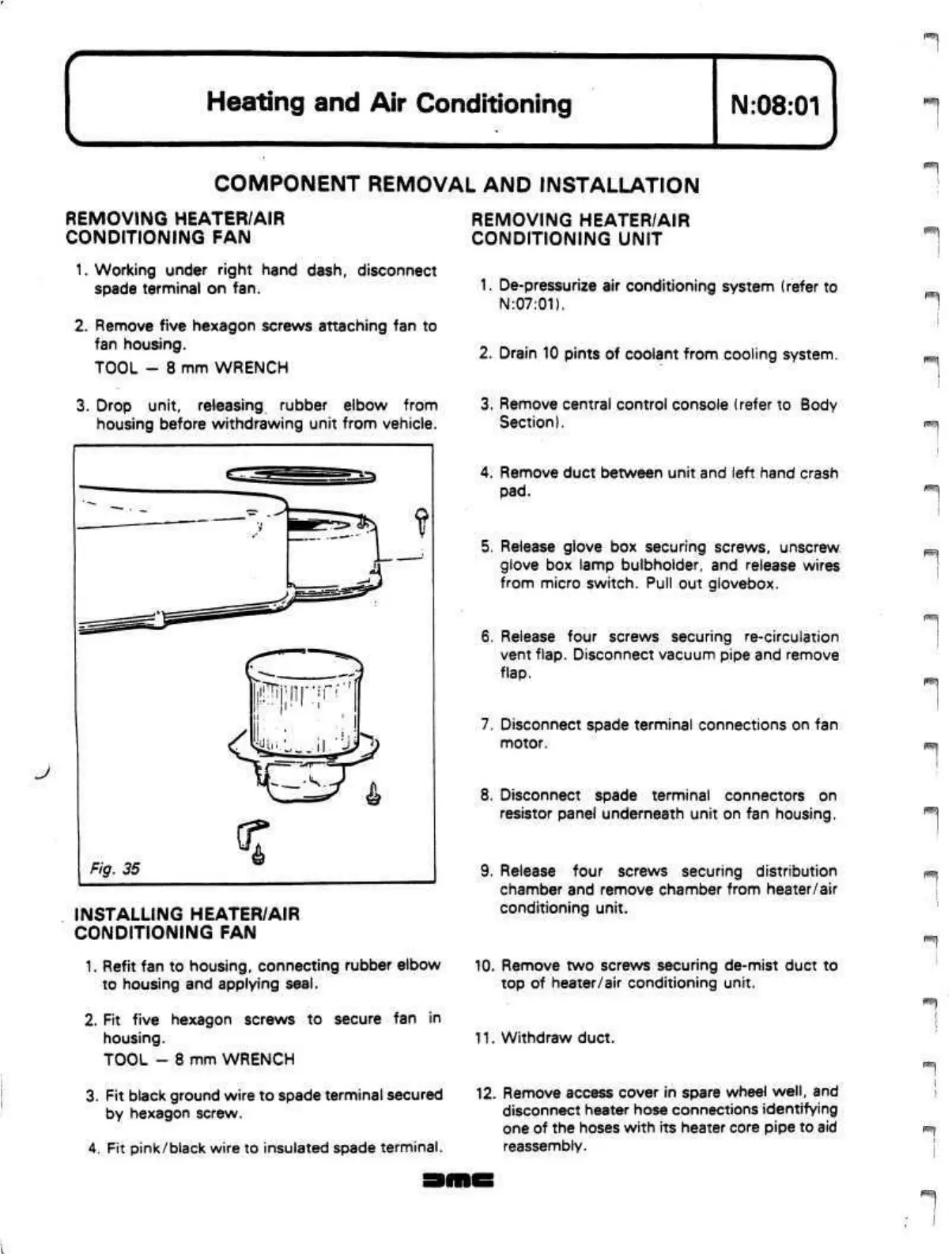

COMPONENT REMOVAL AND INSTALLATION
REMOVING HEATER/AIR
CONDITIONING FAN
1. Working under right hand dash, disconnect
spade terminal on fan.
2. Remove five hexagon screws attaching fan to
fan housing.
TOOL - 8 mm WRENCH
3. Drop unit, releasing rubber elbow from
housing before withdrawing unit from vehicle.
J
?
Y>-. , 1
Fig. 35
INSTALLING HEATER/AIR
CONDITIONING FAN
1. Refit fan to housing, connecting rubber elbow
to housing and applying seal.
2. Fit five hexagon screws to secure fan in
housing.
TOOL - 8 mm WRENCH
3. Fit black ground wire to spade terminal secured
by hexagon screw.
4. Fit pink/black wire to insulated spade terminal.
REMOVING HEATER/AIR
CONDITIONING UNIT
1. De-pressurize air conditioning system (refer to
N:07:01).
2. Drain 10 pints of coolant from cooling system.
3. Remove central control console (refer to Body
Section).
4. Remove duct between unit and left hand crash
pad.
5. Release glove box securing screws, unscrew
glove box lamp bulbholder, and release wires
from micro switch. Pull out glovebox.
6. Release four screws securing re-circulation
vent flap. Disconnect vacuum pipe and remove
flap.
7. Disconnect spade terminal connections on fan
motor.
8. Disconnect spade terminal connectors on
resistor panel underneath unit on fan housing.
9. Release four screws securing distribution
chamber and remove chamber from heater/air
conditioning unit.
10. Remove two screws securing de-mist duct to
top of heater/air conditioning unit.
11. Withdraw duct.
12. Remove access cover in spare wheel well, and
disconnect heater hose connections identifying
one of the hoses with its heater core pipe to aid
reassembly.
