N:08:14
Heating and
Air
Conditioning
p^*fe
T^l
•v?^H
r^r

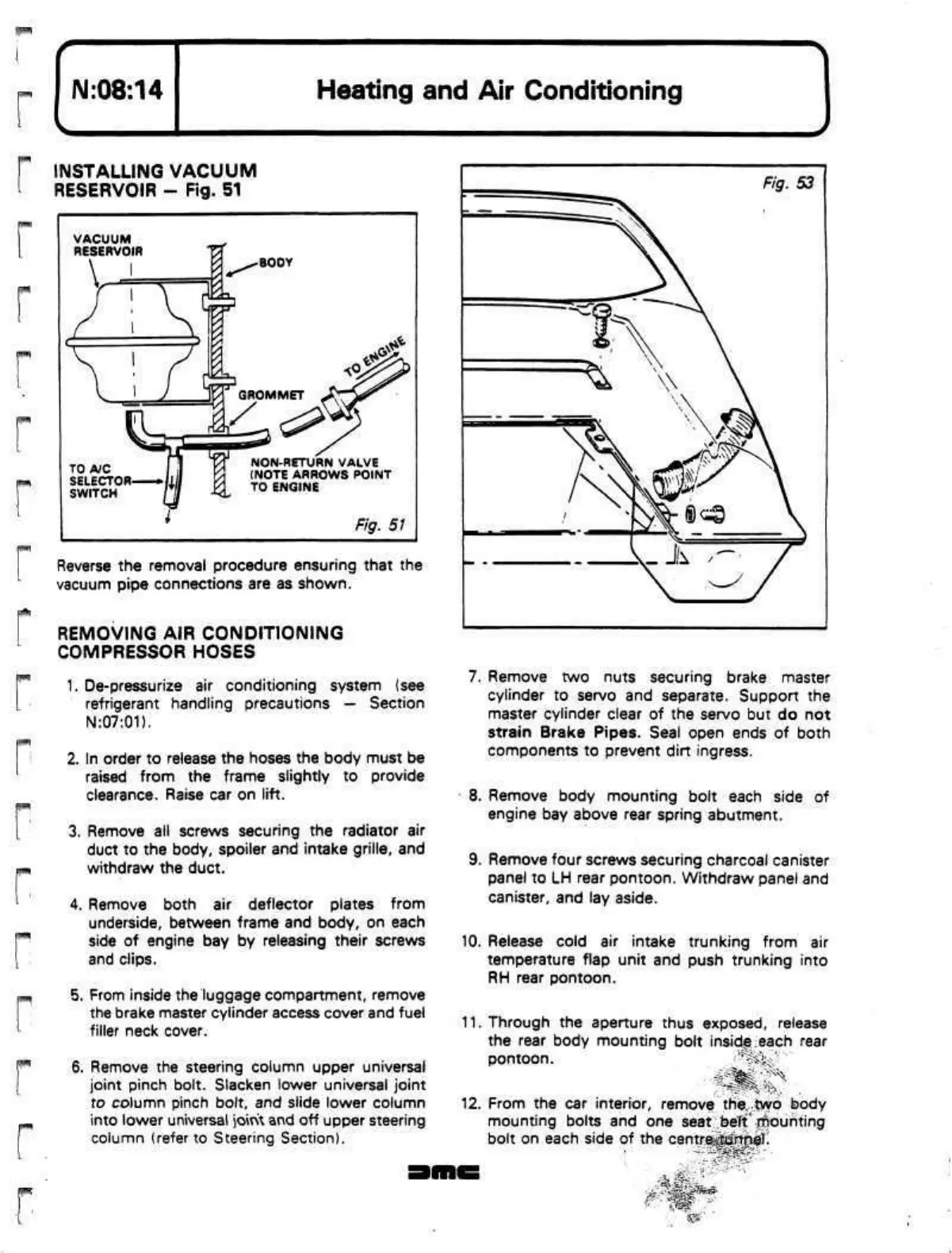

INSTALLING VACUUM
RESERVOIR - Fig. 51
VACUUM
RESERVOIR
GROMMET
TO
A/C
SELECTOR
SWITCH
NON-RETURN VALVE
(NOTE ARROWS POINT
TO ENGINE
Fig.
51
Reverse the removal procedure ensuring that the
vacuum pipe connections are as shown.
REMOVING AIR CONDITIONING
COMPRESSOR HOSES
1.
De-pressurize
air
conditioning system
(see
refrigerant handling precautions
—
Section
N:07:01).
2.
In
order
to
release
the
hoses
the
body must
be
raised from
the
frame slightly
to
provide
clearance. Raise
car on
lift.
3. Remove
all
screws securing
the
radiator
air
duct
to the
body, spoiler and intake grille,
and
withdraw
the
duct.
4.
Remove both
air
deflector plates from
underside, between frame
and
body,
on
each
side
of
engine
bay by
releasing their screws
and clips.
5. From inside the luggage compartment, remove
the brake master cylinder access cover and fuel
filler neck cover.
6. Remove
the
steering column upper universal
joint pinch bolt. Slacken lower universal joint
to column pinch bolt,
and
slide lower column
into lower universal
joint,
and
off
upper steering
column (refer
to
Steering Section).
7. Remove
two
nuts securing brake master
cylinder
to
servo
and
separate. Support
the
master cylinder clear
of the
servo
but do not
strain Brake Pipes. Seal open ends
of
both
components
to
prevent dirt ingress.
8. Remove body mounting bolt each side
of
engine
bay
above rear spring abutment.
9. Remove four screws securing charcoal canister
panel
to LH
rear pontoon. Withdraw panel
and
canister,
and lay
aside.
10.
Release cold
air
intake trunking from
air
temperature flap unit
and
push trunking into
RH rear pontoon.
11.
Through
the
aperture thus exposed, release
the rear body mounting bolt
insidgeach
rear
pontoon.
"?^i
•;^
12.
From the car interior, remove
the,.jwb
body
mounting bolts and one seat
>eT|
i^buriting
bolt on each side of the
centr0@tfi$(\
—
~*3£
=?«--
'
>*•
f&
