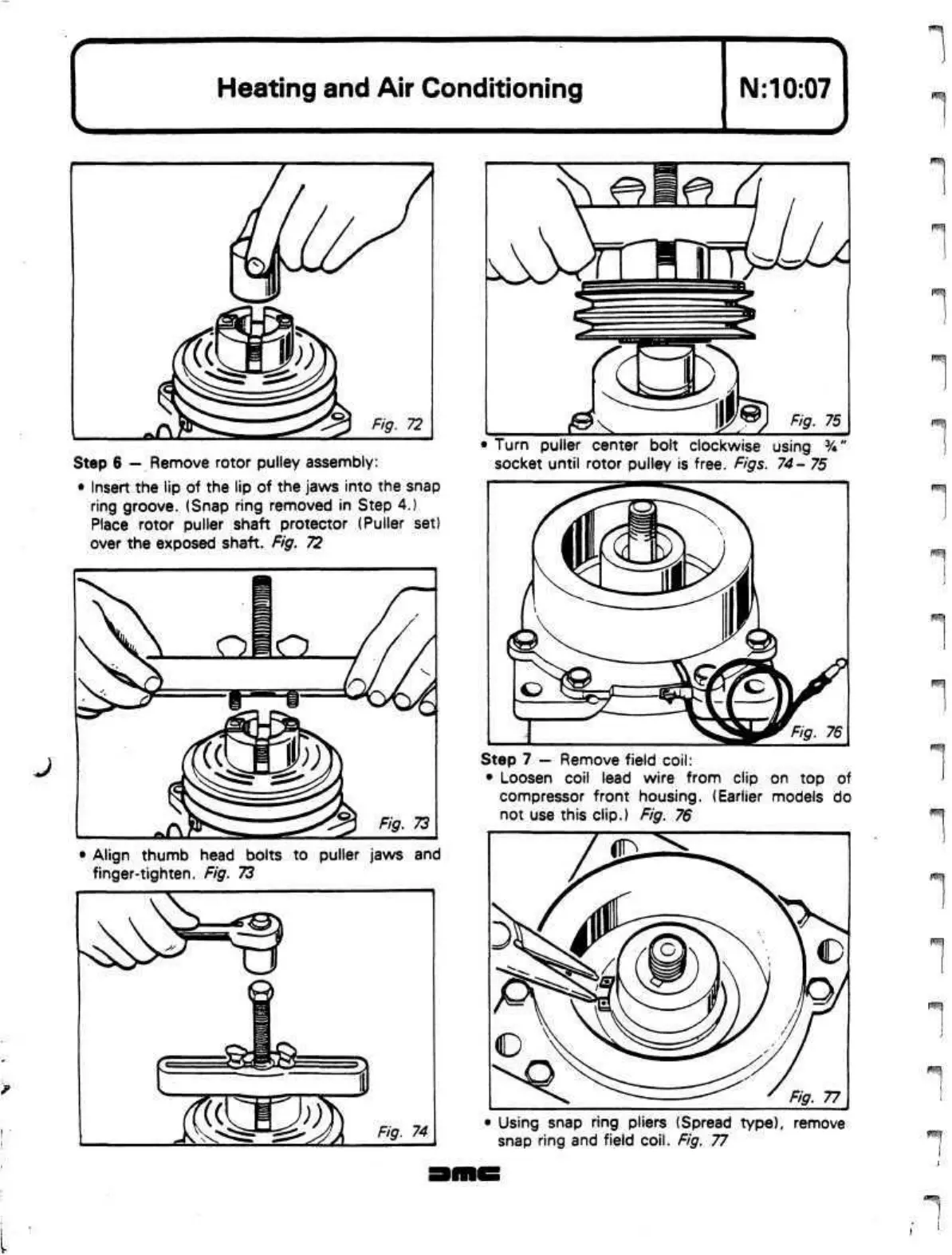

Step 6 — Remove rotor pulley assembly:
• Insert the lip of the lip of the jaws into the snap
ring groove. (Snap ring removed in Step 4.)
Place rotor puller shaft protector (Puller set)
over the exposed shaft. Fig. 72
• Align thumb head bolts to puller jaws and
finger-tighten. Fig. 73
• Turn puller center bolt clockwise using
%'
socket until rotor pulley is free. Figs. 74- 75
Step 7 — Remove field
coil:
• Loosen coil lead wire from clip on top of
compressor front housing. (Earlier models do
not use this clip.) Fig. 76
Using snap ring pliers (Spread type), remove
snap ring and field
coil.
Fig. 77
