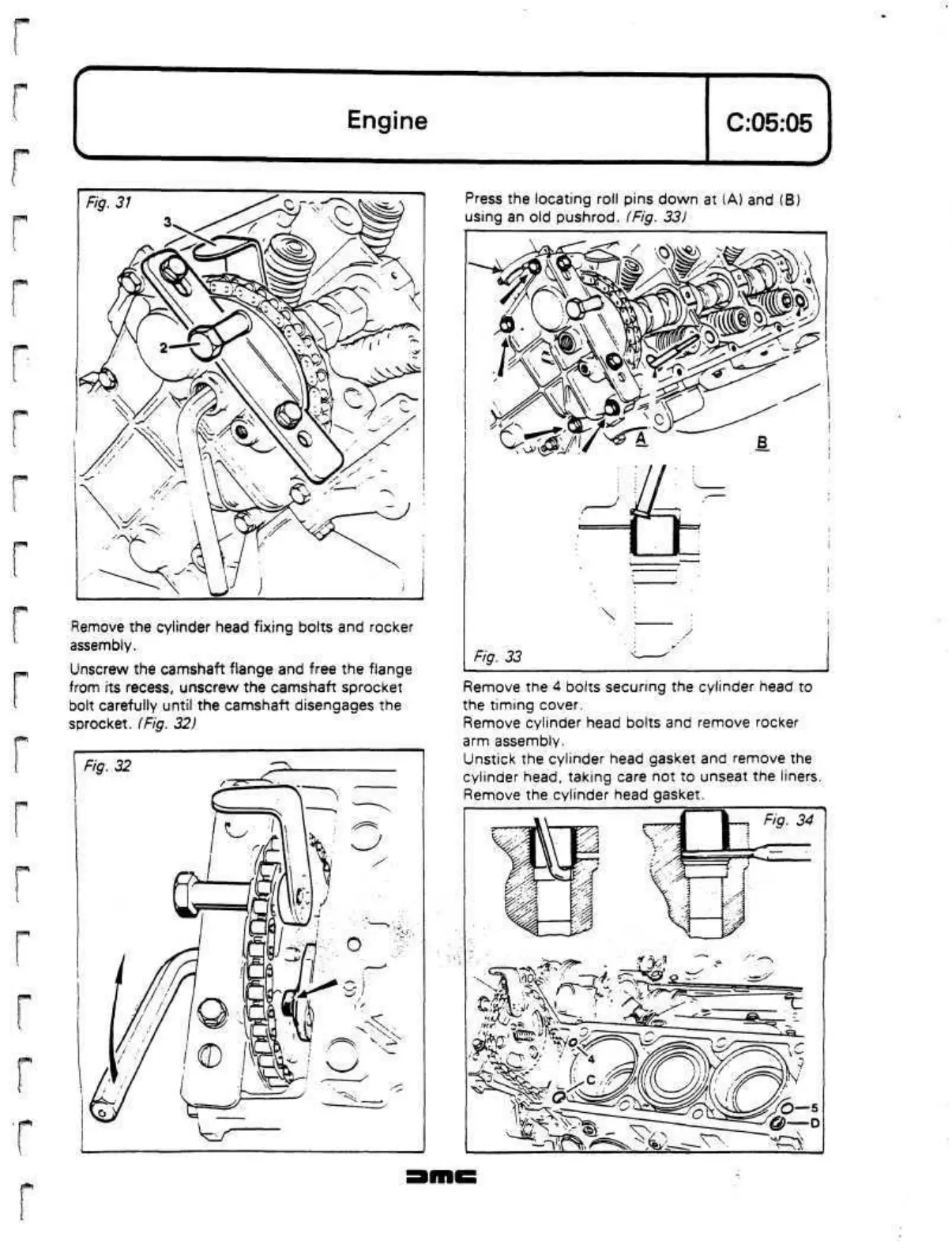

Remove the cylinder head fixing bolts and rocker
assembly.
Unscrew the camshaft flange and free the flange
from its recess, unscrew the camshaft sprocket
bolt carefully until the camshaft disengages the
sprocket. (Fig. 32)
Press the locating roll pins down at (A) and (B)
using an old pushrod.
(Fig.
33)
^C^ji/^i
B
\
Fig. 33
Remove the 4 bolts securing the cylinder head to
the timing cover.
Remove cylinder head bolts and remove rocker
arm assembly.
Unstick the cylinder head gasket and remove the
cylinder head, taking care not to unseat the liners.
Remove the cylinder head gasket.
,
Fig. 34
~
a
^^P
D
