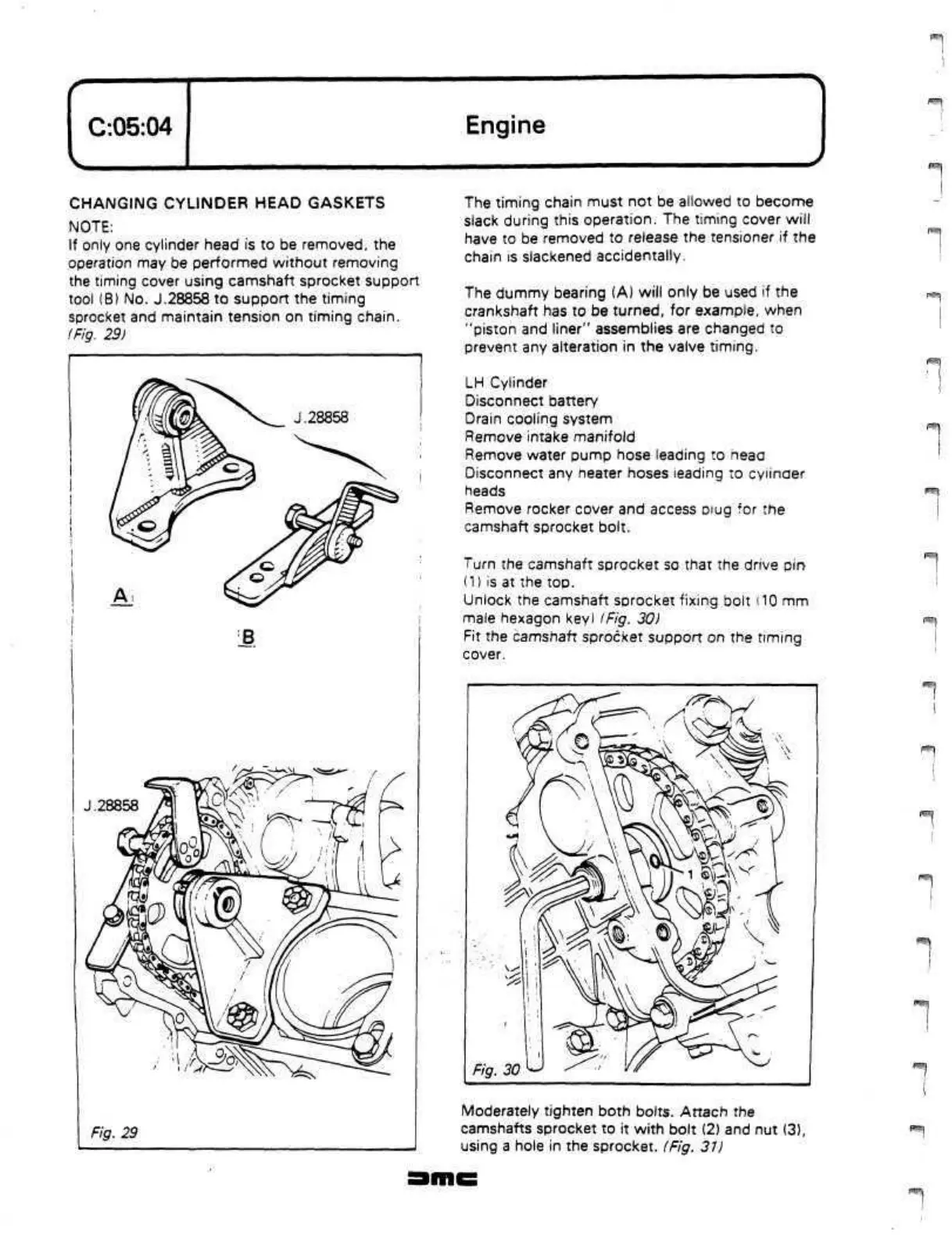

C:05:04
V.
Engine
CHANGING CYLINDER HEAD GASKETS
NOTE:
If only one cylinder head is to be removed, the
operation may be performed without removing
the timing cover using camshaft sprocket support
tool (B) No.
J.28858
to support the timing
sprocket and maintain tension on timing chain.
(Fig. 29)
The timing chain must not be allowed to become
slack during this operation. The timing cover will
have to be removed to release the tensioner if the
chain
is
slackened accidentally.
The dummy bearing (A) will only be used if the
crankshaft has to be turned, for example, when
"piston and liner" assemblies are changed to
prevent any alteration in the valve timing.
I_H
Cylinder
Disconnect battery
Drain cooling system
Remove intake manifold
Remove water pump hose leading to neaa
Disconnect any neater hoses leading to
cyiinaer
heads
Remove rocker cover and access
Diug
for the
camshaft sprocket bolt.
Turn the camshaft sprocket so that the drive pin
(1) is at the top.
Unlock the camshaft sprocket fixing bolt (10 mm
male hexagon key)
I
Fig. 30)
Fit the camshaft sprocket support on the timing
cover.
Moderately tighten both bolts. Attach the
camshafts sprocket to it with bolt
(2)
and nut (3),
using a hole in the sprocket.
(Fig.
31)
