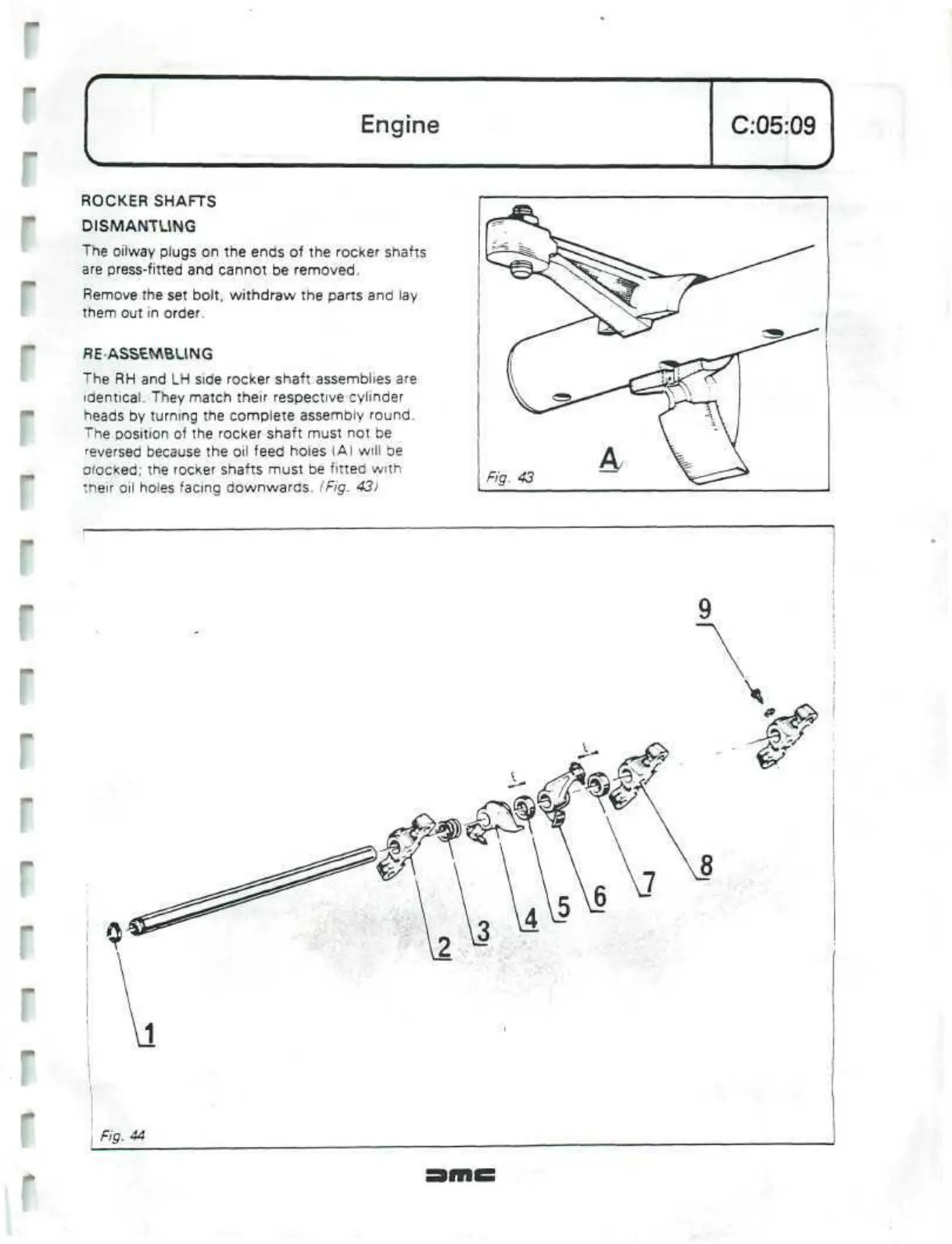

ROCKER SHAFTS
DISMANTLING
The oilway plugs on the ends of the rocker shafts
are press-fitted and cannot be removed.
Remove the set bolt, withdraw the parts and lay
them out in order.
RE-ASSEMBLING
The RH and LH side rocker shaft assemblies are
identical.
They match their respective cylinder
heads by turning the complete assembly round.
The position of the rocker shaft must not be
reversed because the oil feed holes (A) will be
ofocked;
the rocker shafts must be fitted
with
tneir
oil holes facing downwards. (Fig.
43)
