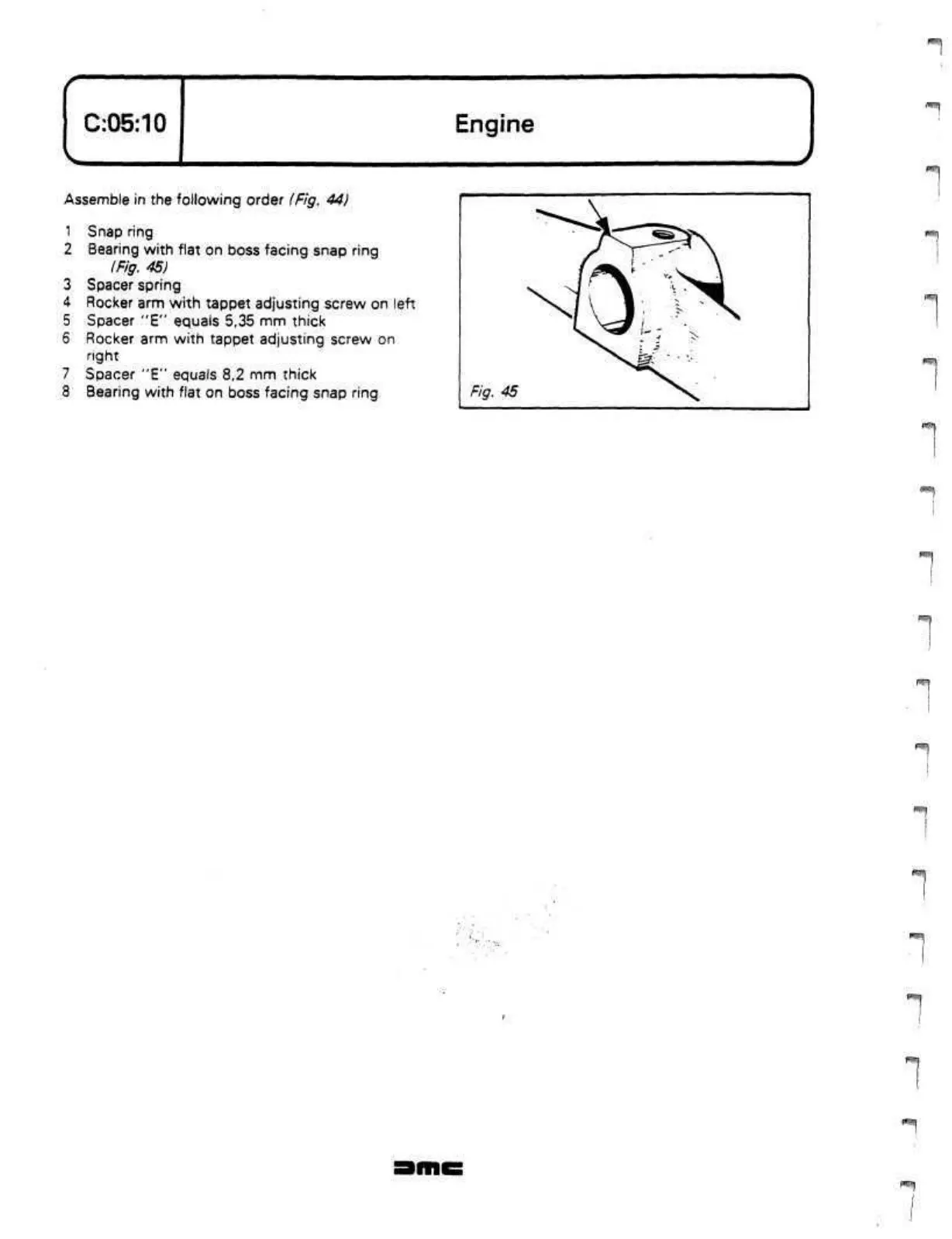

Assemble in the following order (Fig. 44)
1 Snap ring
2 Bearing with flat on boss facing snap ring
(Fig.
45)
3 Spacer spring
4 Rocker arm with tappet adjusting screw on left
5 Spacer "E" equals 5,35 mm thick
6 Rocker arm with tappet adjusting screw on
right
7 Spacer "E" equals 8,2 mm thick
8 Bearing with flat on boss facing snap ring
''
-
