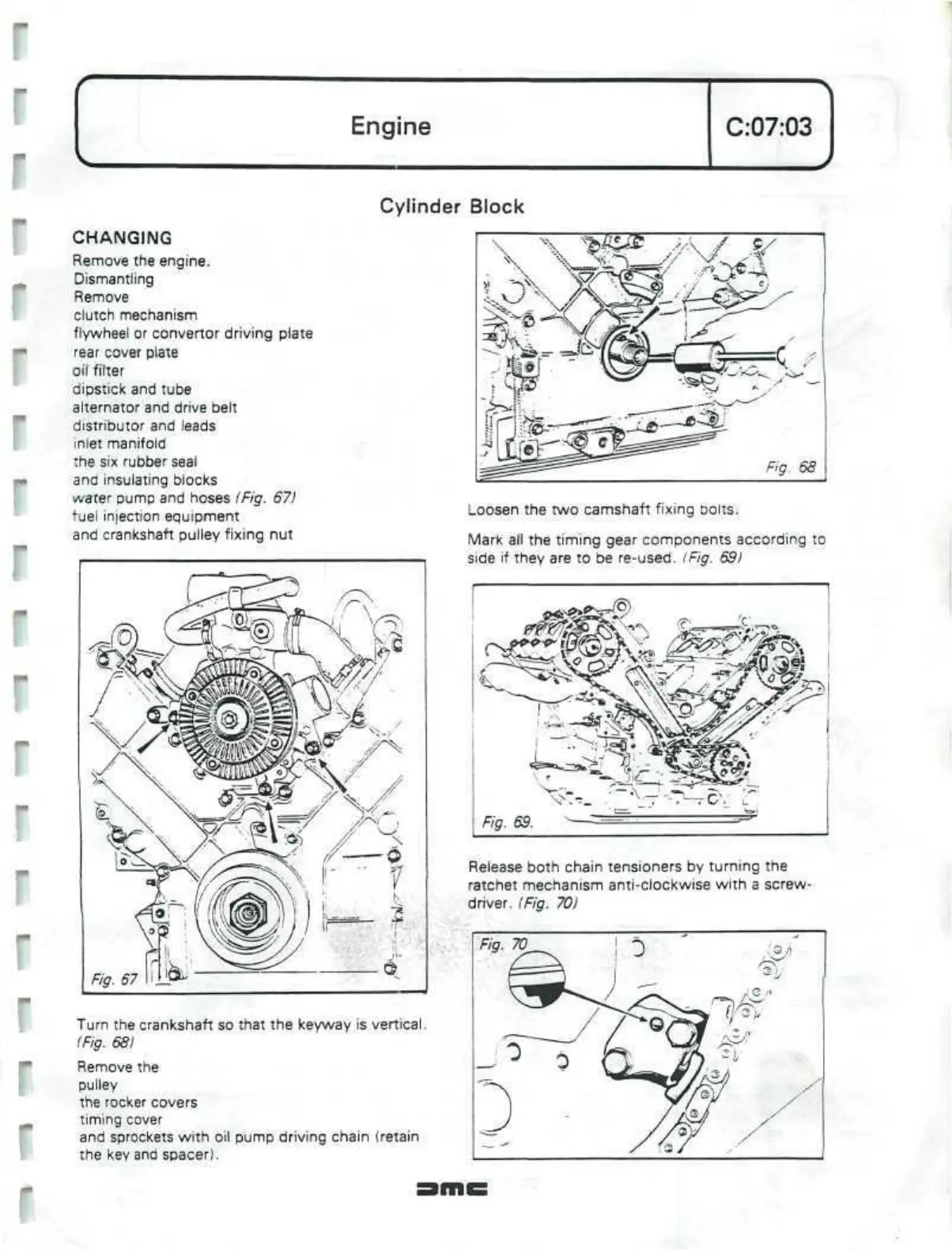

Cylinder Block
r
CHANGING
Remove the engine.
Dismantling
Remove
clutch mechanism
flywheel or
convenor
driving plate
rear cover plate
01/
filter
dipstick and tube
alternator and drive belt
distributor and leads
inlet manifold
the six rubber seal
and insulating blocks
water pump and hoses (Fig. 67)
fuel injection equipment
and crankshaft pulley fixing nut
Turn the crankshaft so that the keyway is vertical.
(Fig. 68)
Remove the
pulley
the rocker covers
timing cover
and sprockets with oil pump driving chain (retain
the key and spacer).
Loosen the two camshaft fixing bolts.
Mark all the timing gear components according to
side
if they are to be re-used. (Fig. 69)
cJ^^m^mk
^m
e£
^
Fig. 69.
Release both chain tensioners by turning the
ratchet mechanism anti-clockwise
with
a screw-
driver. (Fig. 70)
imi
