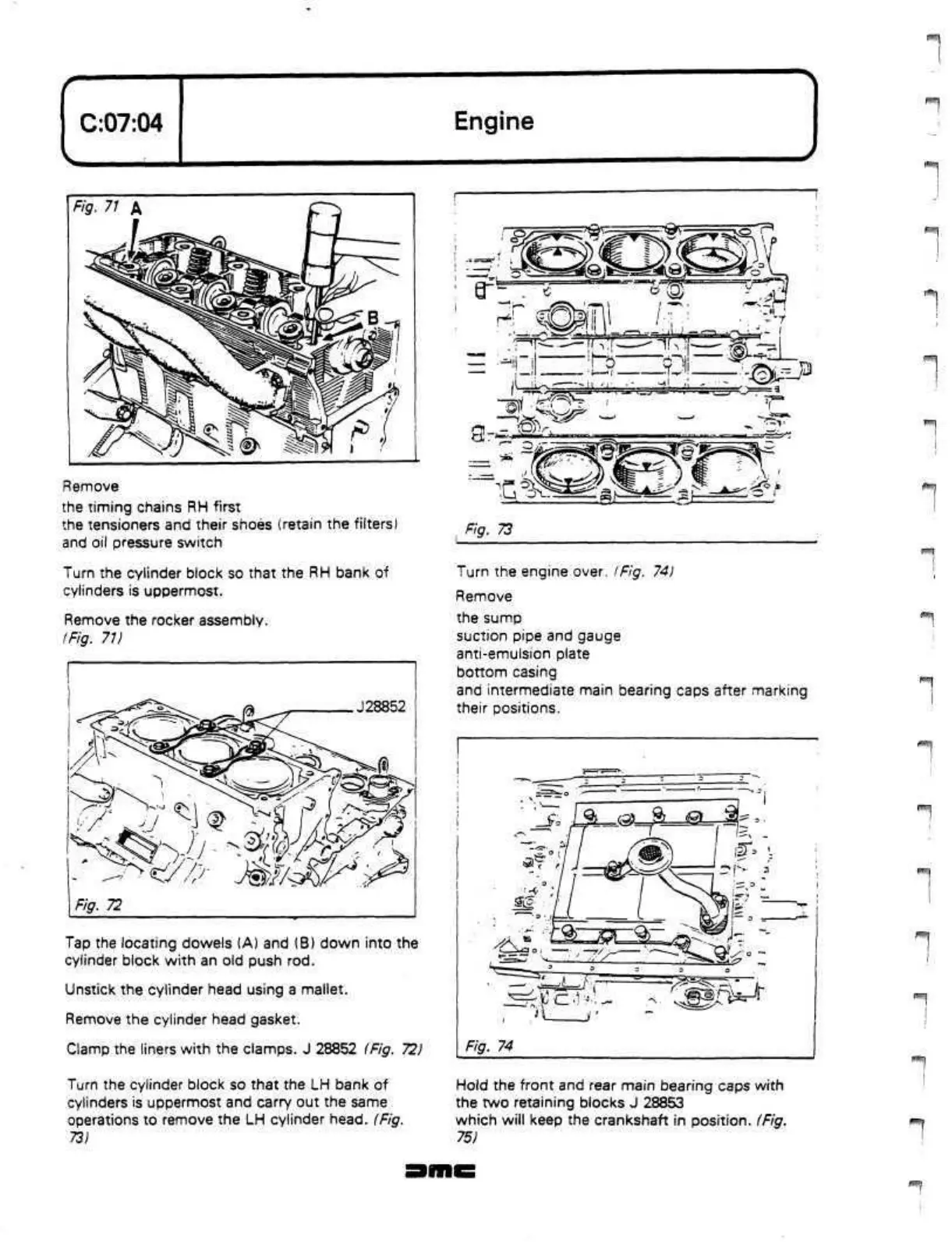

Remove
the timing chains RH first
the tensioners and their shoes (retain the filters)
and oil pressure switch
Turn the cylinder block so that the RH bank of
cylinders is uppermost.
Remove the rocker assembly.
(Fig. 71)
Fig. 72
Tap the locating dowels (A) and (B) down into the
cylinder block with an old push rod.
Unstick the cylinder head using a mallet.
Remove the cylinder head gasket.
Clamp the liners with the clamps. J 28852 (Fig. 72)
Turn the cylinder block so that the LH bank of
cylinders is uppermost and carry out the same
operations to remove the LH cylinder head. (Fig.
73)
%. 73
Turn the engine over. (Fig. 74)
Remove
the sump
suction pipe and gauge
anti-emulsion plate
bottom casing
and intermediate main bearing caps after marking
their positions.
Fig. 74
Hold the front and rear main bearing caps with
the two retaining blocks J 28853
which will keep the crankshaft in position. (Fig.
75)
