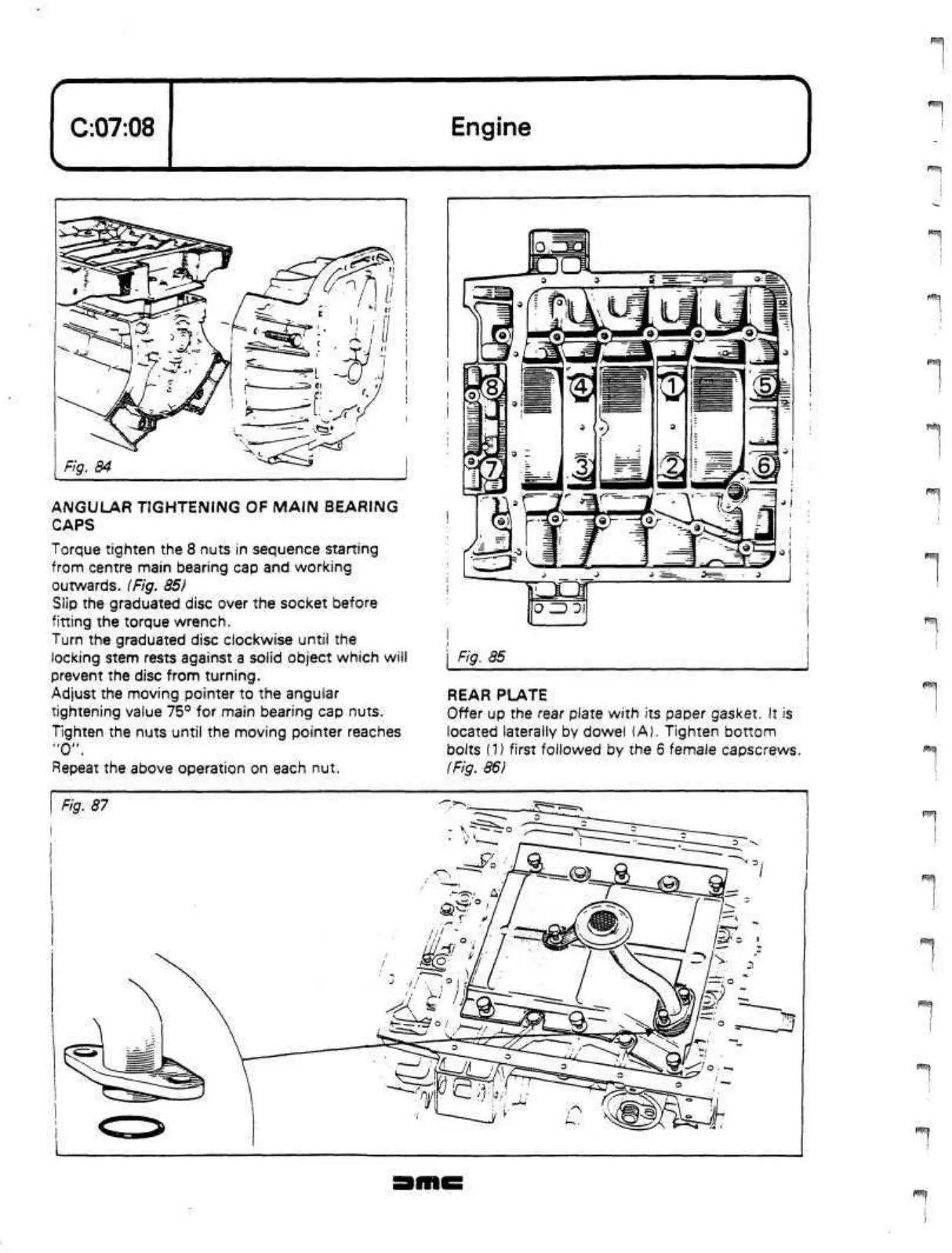

C:07:08
Engine
ANGULAR TIGHTENING OF MAIN BEARING
CAPS
Torque tighten the 8 nuts in sequence starting
from centre main bearing cap and working
outwards. (Fig. 85)
Slip the graduated disc over the socket before
fitting the torque wrench.
Turn the graduated disc clockwise until the
locking stem rests against a solid object which will
prevent the disc from turning.
Adjust the moving pointer to the angular
tightening value 75° for main bearing cap nuts.
Tighten the nuts until the moving pointer reaches
"0".
Repeat the above operation on each nut.
Fig. 85
REAR PLATE
Offer up the rear plate with its paper gasket. It is
located laterally by dowel (A). Tighten bottom
bolts (1) first followed by the 6 female capscrews.
(Fig. 86)
