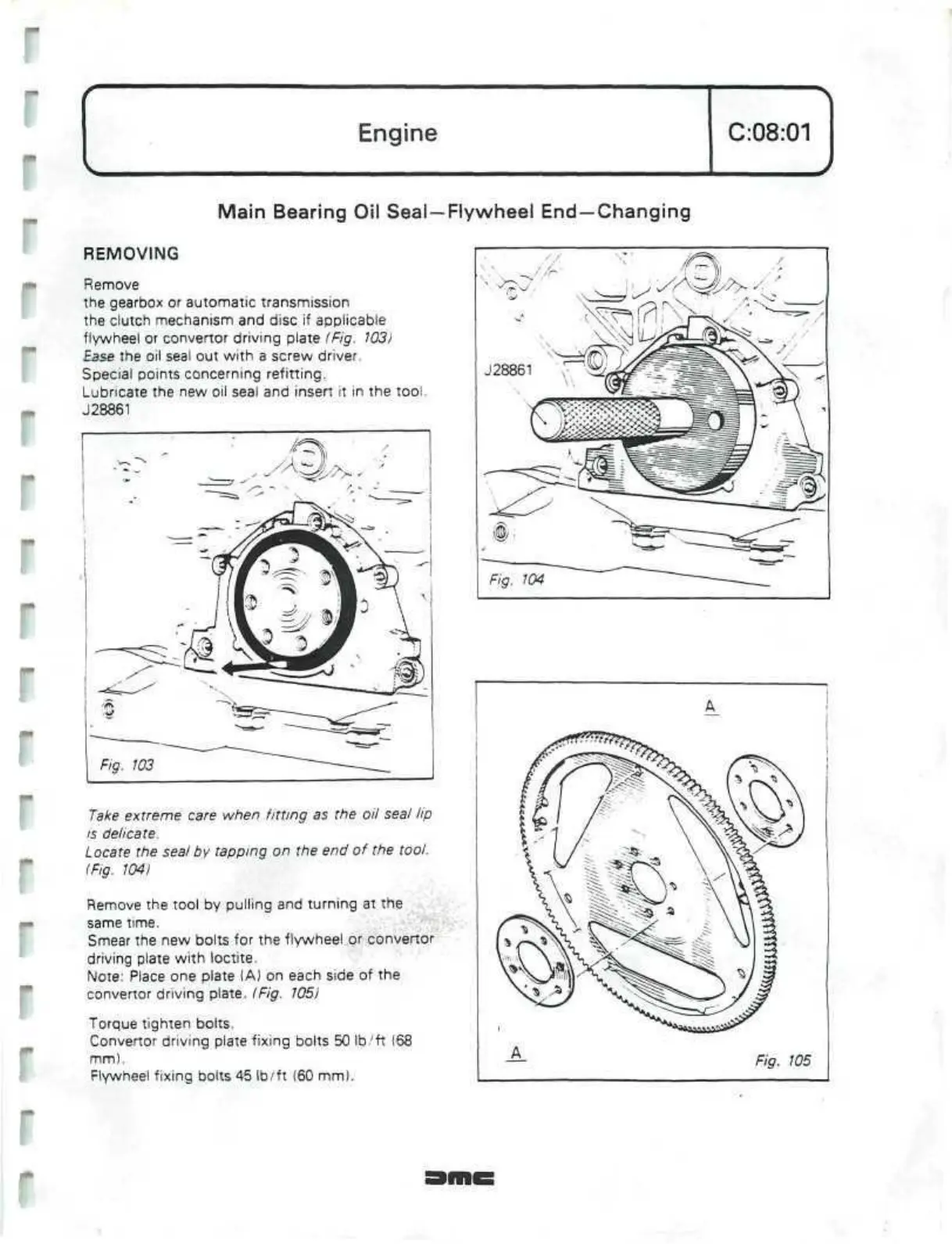

Main Bearing Oil
Seal—Flywheel End —Changing
REMOVING
Remove
the gearbox or automatic transmission
the clutch mechanism and disc if applicable
flywheel or convertor driving plate (Fig.
103)
Ease the oil seal out with a screw driver.
Special points concerning refitting.
Lubricate the new oil seal and insert it in the tool
J28861
Take extreme care when fitting as the oil seal lip
is
delicate.
Locate the seal by tapping on the end of the
tool.
(Fig.
104)
Remove the tool by pulling and turning at the
same time.
Smear the new bolts for the flywheel or
convenor
driving plate with loctite.
Note:
Place one plate (A) on each side of the
convertor driving plate. (Fig. 705)
Torque tighten bolts.
Convertor driving plate fixing bolts 50 lb/ft (68
mm).
Flywheel fixing bolts 45 lb/ft (60 mm).
Fig. 105
